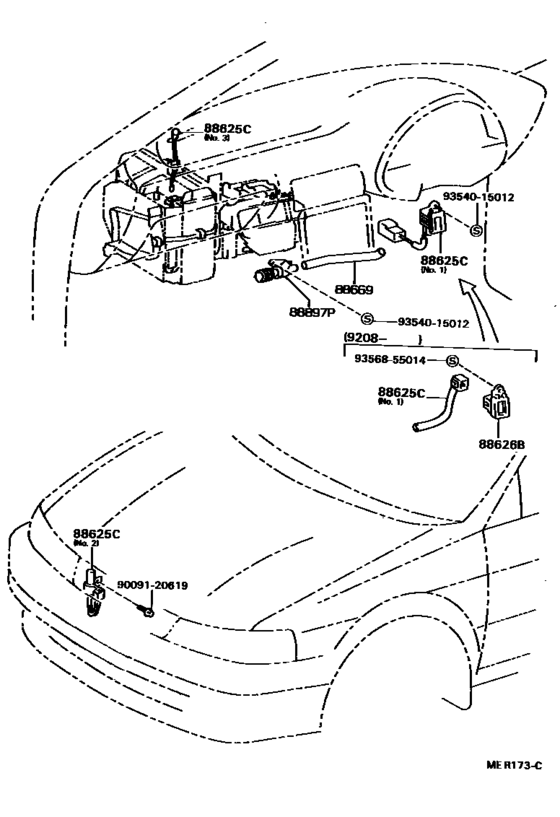

Heating & Air Conditioning - Control & Air Duct ([09.1990 - ] (9009- )) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL43
- grade
- VX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88625C
|
88625C
88625-16120-C0
Thermistor, Cooler
[09.1990 - 08.1992] NL40..5F..(VITX,VX) BLACK,TRIM2#; NL40..5F..(AVE,AX,AXX,JOI,MOA) BLACK,TRIM2#; EL4#;NL40..4FC BLACK,TRIM2# |
88625-16120-C0 |
— | ||
| replacement | |||||
|
88625C
|
88625C
88625-16121
Thermistor, Cooler
[09.1990 - 08.1992] NL40..5F..(VITX,VX) BLACK,TRIM2#; NL40..5F..(AVE,AX,AXX,JOI,MOA) BLACK,TRIM2#; EL4#;NL40..4FC BLACK,TRIM2# |
88625-16121 |
— | ||
|
88625C
|
88625C
88625-16120-G0
Thermistor, Cooler
[09.1990 - 08.1992] NL40..5F..(VITX,VX) SPRUCE,TRIM6#; NL40..5F..(AVE,AX,AXX,JOI,MOA) SPRUCE,TRIM6#; NL40..4FC;EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
88625-16120-G0 |
— | ||
|
88625C
|
88625C
88625-16120-J0
Thermistor, Cooler
[09.1990 - 08.1992] NL40..5F..(VITX,VX) GRAISH BLUE,TRIM8#; NL40..5F..(AVE,AX,AXX,JOI,MOA) GRAISH BLUE,TRIM8#; EL4#;NL40..4FC GRAISH BLUE,TRIM8# |
88625-16120-J0 |
— | ||
|
88625C
|
88625C
88625-16121
Thermistor, Cooler
[08.1992 - 09.1994] EL43,45..SX,VE,VIT,VITX,VS,VX ＮＯ．１; EL41,NL40..AVE,AX,AXX,JOI,MOA,SOP ＮＯ．１; NL40..VITX,VX;EL45..AVE,AXX,JOI,MOA ＮＯ．１; EL41,43..SZ,TX,VC,VITZ,VZ ＮＯ．１ |
88625-16121 |
— | ||
|
88625C
|
88625C
88625-16130
Thermistor, Cooler
[09.1990 - 08.1992] EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ＮＯ．３ |
88625-16130 |
— | ||
|
88625C
|
88625C
88625-16140
Thermistor, Cooler
[09.1990 - 08.1992] EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ＮＯ．１ |
88625-16140 |
— | ||
|
88625C
|
88625C
88625-16150
Thermistor, Cooler
[08.1992 - 09.1994] EL43..EFIS ＮＯ．３; EL43,45..SX,VE,VIT,VITX,VS,VX ＮＯ．３ |
88625-16150 |
— | ||
|
88625C
|
88625C
88625-16190
Thermistor, Cooler
[08.1992 - 09.1994] EL43..EFIS ＮＯ．２; EL43,45..SX,VE,VIT,VITX,VS,VX ＮＯ．２; NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP ＮＯ．２ |
88625-16190 |
— | ||
|
88626B
|
88626B
88626-16010
Holder, Thermistor
[08.1992 - 09.1994] EL43,45..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
88626-16010 |
— | ||
|
88669
|
88669
88669-16040
Hose, Cooler Air
[09.1990 - 08.1992] NL40..5F; NL40..4FC;EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
88669-16040 |
— | ||
|
88669
|
88669
88669-16050
Hose, Cooler Air
[08.1992 - 09.1994] EL43..EFIS; EL43,45..SX,VE,VIT,VITX,VS,VX |
88669-16050 |
— | ||
|
88897P
|
88897P
88897-16010
Aspirator
[09.1990 - 08.1992] NL40..5F; NL40..4FC;EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
88897-16010 |
— | ||
|
9009120619
|
9009120619
90091-20619 BOLT |
90091-20619 |
US $0.28 |
||
|
9354015012
|
9354015012
93540-15012
New Genuine Part
|
93540-15012 |
— | ||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
