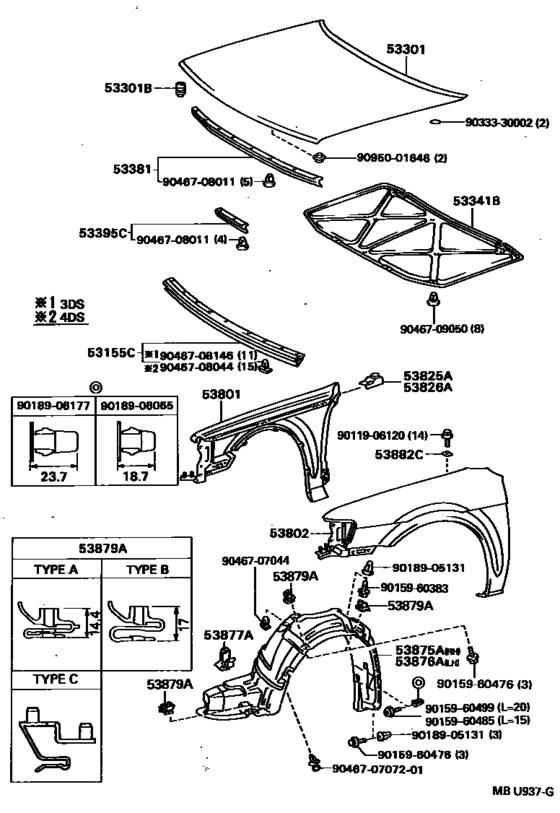

Hood & Front Fender ([09.1990 - ] (9009- )) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL43
- grade
- VX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53155C
|
53155C
53155-16050 Seal, Radiator Grille, No.1[09.1990 - 09.1994] EL4#,NL40..4DS |
53155-16050 |
US $45.86 |
||
|
53301
|
53301
53301-16120 Hood Sub-Assy[09.1990 - 09.1994] EL4#,NL40..4DS |
53301-16120 |
US $481.94 |
||
|
53301B
|
53301B
90541-15010 Cushion, Hood Bumper[09.1990 - 09.1994] EL4#,NL40 |
90541-15010 |
US $4.32 |
||
|
53381
|
53381
53381-16050 Seal, Hood To Radiator Support[09.1990 - 09.1994] EL4#,NL40 |
53381-16050 |
US $19.80 |
||
|
53395C
|
53395C
53395-16010 Seal, Hood To Radiator Grille[09.1990 - 09.1994] EL4#,NL40 |
53395-16010 |
US $10.77 |
||
|
53801
|
53801
53801-16370 Fender Sub-Assy, Front Rh[09.1990 - 09.1994] EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC) ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
53801-16370 |
US $423.70 |
||
|
53801
|
53801
53801-16380 Fender Sub-Assy, Front Rh[09.1990 - 09.1994] EL41..4DS..(TX,VC); EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
53801-16380 |
US $423.70 |
||
|
53802
|
53802
53802-16370 Fender Sub-Assy, Front Lh[09.1990 - 09.1994] EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ); EL41..4DS..(TX,VC) ｱﾘ(ﾄﾞｱ ﾐﾗ-) |
53802-16370 |
US $423.70 |
||
|
53802
|
53802
53802-16380 Fender Sub-Assy, Front Lh[09.1990 - 09.1994] EL41..4DS..(TX,VC); EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
53802-16380 |
US $423.70 |
||
|
53825A
|
53825A
53825-16020 Protector, Front Fender, Upper Rh[09.1990 - 09.1994] EL4#,NL40 |
53825-16020 |
US $3.93 |
||
| replacement | |||||
|
53825A
|
53825A
53825-16030
Protector, Front Fender, Upper Rh
[09.1990 - 09.1994] EL4#,NL40 |
53825-16030 |
— | ||
|
53826A
|
53826A
53826-16020 Protector, Front Fender, Upper Lh[09.1990 - 09.1994] EL4#,NL40 |
53826-16020 |
US $3.93 |
||
| replacement | |||||
|
53826A
|
53826A
53826-16030 Protector, Front Fender, Upper Lh[09.1990 - 09.1994] EL4#,NL40 |
53826-16030 |
US $4.89 |
||
|
53875A
|
53875A
53875-16050 Liner, Front Fender, Rh[09.1990 - 08.1992] EL4#,NL40..4DS |
53875-16050 |
US $90.27 |
||
|
53875A
|
53875A
53875-16070 Liner, Front Fender, Rh[08.1992 - 09.1994] EL4#,NL40 |
53875-16070 |
US $97.55 |
||
|
53876A
|
53876A
53876-16050 Liner, Front Fender, Lh[09.1990 - 08.1992] EL4#,NL40..4DS |
53876-16050 |
US $90.27 |
||
|
53876A
|
53876A
53876-16070 Liner, Front Fender, Lh[08.1992 - 09.1994] EL4#,NL40 |
53876-16070 |
US $97.55 |
||
|
53877A
|
53877A
53877-16010
Bracket, Front Fender Splash Shield
[09.1990 - 09.1994] EL4#,NL40 |
53877-16010 |
— | ||
|
53879A
|
53879A
53879-14020 Retainer, Front Fender Liner[09.1990 - 09.1994] EL4#,NL40 タイプ Ａ |
53879-14020 |
from US $2.42 |
||
|
53879A
|
53879A
53879-16010 Retainer, Front Fender Liner[09.1990 - 08.1992] EL4#,NL40 タイプ Ｂ |
53879-16010 |
from US $1.95 |
||
|
53879A
|
53879A
53879-16030 Retainer, Front Fender Liner[08.1992 - 09.1994] EL4#,NL40 タイプ Ｃ |
53879-16030 |
US $14.27 |
||
|
53882C
|
53882C
53882-16030 Pad, Rear Bumper, Center[09.1993 - 09.1994] EL4#,NL40 |
53882-16030 |
from US $0.96 |
||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.12 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9015960476
|
9015960476
90159-60476 SCREW WWASHER |
90159-60476 |
from US $1.09 |
||
|
9015960485
|
9015960485
90159-60485 SCREW WWASHER |
90159-60485 |
US $1.92 |
||
|
9015960499
|
9015960499
90159-60499 SCREWWWASHER |
90159-60499 |
US $1.05 |
||
|
9018905131
|
9018905131
90189-05131 WASHER |
90189-05131 |
US $1.05 |
||
|
9018906065
|
9018906065
90189-06065 CLIP |
90189-06065 |
from US $0.80 |
||
|
9018906177
|
9018906177
90189-06177 GROMMET SCREW |
90189-06177 |
from US $0.76 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9046707044
|
9046707044
90467-07044 Clip, Radiator Support To Frame |
90467-07044 |
US $2.24 |
||
|
9046708011
|
9046708011
90467-08011 Clip(For Headlamp Cover Seal) |
90467-08011 |
from US $0.36 |
||
|
9046708044
|
9046708044
90467-08044
Clip(For Headlamp Cover Seal)
|
90467-08044 |
— | ||
| replacement | |||||
|
9046708044
|
9046708044
90467-08011 Clip(For Headlamp Cover Seal) |
90467-08011 |
from US $0.36 |
||
|
9046708146
|
9046708146
90467-08146 New Genuine Part |
90467-08146 |
US $2.56 |
||
|
9046709050
|
9046709050
90467-09050 Clip(For Hood Insulator) |
90467-09050 |
from US $0.94 |
||
|
9095001646
|
9095001646
90950-01646 New Genuine Part |
90950-01646 |
US $1.76 |
||
|
904670707201
|
904670707201
90467-07072-01 Clip (For Roof Side Garnish) |
90467-07072-01 |
US $1.60 |
||
| replacement | |||||
|
904670707201
|
904670707201
90467-07072-22 Clip (For Roof Side Garnish) |
90467-07072-22 |
US $1.92 |
||
