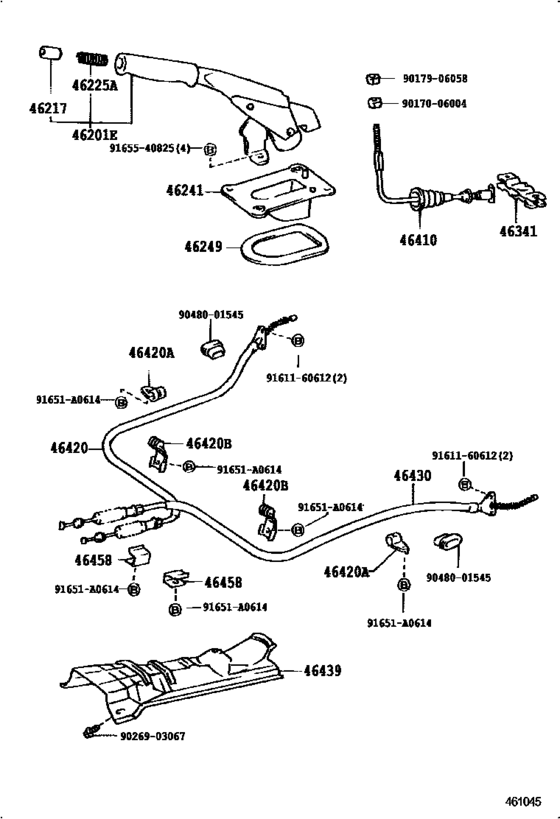

Parking Brake & Cable ([09.1990 - ] (9009- )EL41,43,NL40) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL43
- grade
- VX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201E
|
46201E
46201-16060-01 Lever Sub-Assy, Parking Brake[09.1990 - 09.1994] EL41,43,NL40 BLACK,TRIM2# |
46201-16060-01 |
US $101.92 |
||
| replacement | |||||
|
46201E
|
46201E
46201-10091-C0 Lever Sub-Assy, Parking Brake[09.1990 - 09.1994] EL41,43,NL40 BLACK,TRIM2# |
46201-10091-C0 |
US $104.83 |
||
|
46201E
|
46201E
46201-16060-04 Lever Sub-Assy, Parking Brake[09.1990 - 09.1994] EL41,43,NL40 GRAISH BLUE,TRIM8# |
46201-16060-04 |
US $101.92 |
||
| replacement | |||||
|
46201E
|
46201E
46201-10091-C0 Lever Sub-Assy, Parking Brake[09.1990 - 09.1994] EL41,43,NL40 GRAISH BLUE,TRIM8# |
46201-10091-C0 |
US $104.83 |
||
|
46201E
|
46201E
46201-16060-07 Lever Sub-Assy, Parking Brake[09.1990 - 09.1994] EL41,43,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
46201-16060-07 |
US $101.92 |
||
| replacement | |||||
|
46201E
|
46201E
46201-10091-C0 Lever Sub-Assy, Parking Brake[09.1990 - 09.1994] EL41,43,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
46201-10091-C0 |
US $104.83 |
||
|
46217
|
46217
46217-12020-11 Knob, Parking Brake Release Rod[09.1990 - 08.1992] EL4#,NL40 BLACK,TRIM2# |
46217-12020-11 |
US $3.35 |
||
| replacement | |||||
|
46217
|
46217
46217-12020-C0 Knob, Parking Brake Release Rod[09.1990 - 08.1992] EL4#,NL40 BLACK,TRIM2# |
46217-12020-C0 |
US $3.35 |
||
|
46217
|
46217
46217-12020-17 Knob, Parking Brake Release Rod[09.1990 - 09.1994] EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
46217-12020-17 |
US $3.35 |
||
| replacement | |||||
|
46217
|
46217
46217-12020-C0 Knob, Parking Brake Release Rod[09.1990 - 09.1994] EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
46217-12020-C0 |
US $3.35 |
||
|
46217
|
46217
46217-12020-34 Knob, Parking Brake Release Rod[09.1990 - 09.1994] EL4#,NL40 GRAISH BLUE,TRIM8# |
46217-12020-34 |
US $3.35 |
||
| replacement | |||||
|
46217
|
46217
46217-12020-C0 Knob, Parking Brake Release Rod[09.1990 - 09.1994] EL4#,NL40 GRAISH BLUE,TRIM8# |
46217-12020-C0 |
US $3.35 |
||
|
46217
|
46217
46217-12020-C0 Knob, Parking Brake Release Rod[08.1992 - 09.1994] EL4#,NL40 GRAY,TRIM2# |
46217-12020-C0 |
US $3.35 |
||
|
46225A
|
46225A
90501-10069 Spring, Compression(For Parking Brake Pawl Rod)[09.1990 - 09.1994] EL4#,NL40 |
90501-10069 |
US $1.31 |
||
|
46241
|
46241
46241-10030 Boot, Parking Brake Lever[09.1990 - 09.1994] EL41,43,NL40 |
46241-10030 |
US $9.03 |
||
|
46249
|
46249
46249-32010 Shield, Parking Brake Hole[09.1990 - 09.1994] EL41,43,NL40 |
46249-32010 |
US $3.93 |
||
|
46341
|
46341
46341-12020 Equalizer, Parking Brake[08.1992 - 09.1994] EL41,43,NL40 |
46341-12020 |
US $7.04 |
||
|
46341
|
46341
46341-16020
Equalizer Sub-Assy, Parking Brake
[09.1990 - 08.1992] EL41,43,NL40 |
46341-16020 |
— | ||
|
46410
|
46410
46410-10080
Cable Assy, Parking Brake, No.1
[09.1990 - 08.1992] EL41,43,NL40 |
46410-10080 |
— | ||
|
46410
|
46410
46410-10100 Cable Assy, Parking Brake, No.1[08.1992 - 09.1994] EL41,43,NL40 |
46410-10100 |
US $30.75 |
||
|
46420
|
46420
46420-16120 Cable Assy, Parking Brake, No.2[09.1990 - 08.1992] EL41,43,NL40 |
46420-16120 |
US $54.16 |
||
|
46420
|
46420
46420-16160
Cable Assy, Parking Brake, No.2
[08.1992 - 09.1994] EL41,43,NL40 |
46420-16160 |
— | ||
|
46420A
|
46420A
90461-10641
Clamp, No.1(For Parking Brake Cable)
[09.1990 - 09.1994] EL4#,NL40 |
90461-10641 |
— | ||
|
46420B
|
46420B
90949-01585
Clamp, No.2(For Parking Brake Cable)
[09.1990 - 09.1994] EL4#,NL40 |
90949-01585 |
— | ||
|
46430
|
46430
46430-16120 Cable Assy, Parking Brake, No.3[09.1990 - 08.1992] EL41,43,NL40 |
46430-16120 |
US $54.16 |
||
|
46430
|
46430
46430-16160 Cable Assy, Parking Brake, No.3[08.1992 - 09.1994] EL41,43,NL40 |
46430-16160 |
US $65.08 |
||
|
46439
|
46439
46439-16020 Insulator, Parking Brake Cable Heat[09.1990 - 03.1994] EL41,43 |
46439-16020 |
US $45.43 |
||
|
46439
|
46439
46439-16021 Insulator, Parking Brake Cable Heat[03.1994 - 09.1994] EL41,43 |
46439-16021 |
US $30.43 |
||
|
46458
|
46458
46458-50010 Retainer, Cable[09.1990 - 09.1994] EL41,43,NL40 |
46458-50010 |
from US $5.44 |
||
|
91651A0614
|
91651A0614
91651-A0614
BOLT WWASHER
|
91651-A0614 |
— | ||
| replacement | |||||
|
91651A0614
|
91651A0614
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $0.96 |
||
|
9017006004
|
9017006004
90170-06004 Nut, Wire Adjusting, No.1 |
90170-06004 |
US $2.08 |
||
|
9017906058
|
9017906058
90179-06058
Nut, Wire Adjusting, No.1
|
90179-06058 |
— | ||
| replacement | |||||
|
9017906058
|
9017906058
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.68 |
||
|
9026903067
|
9026903067
90269-03067 RIVET |
90269-03067 |
from US $0.84 |
||
|
9048001545
|
9048001545
90480-01545 New Genuine Part |
90480-01545 |
US $4.66 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.78 |
||
|
9165540825
|
9165540825
91655-40825
New Genuine Part
|
91655-40825 |
— | ||
| replacement | |||||
|
9165540825
|
9165540825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
