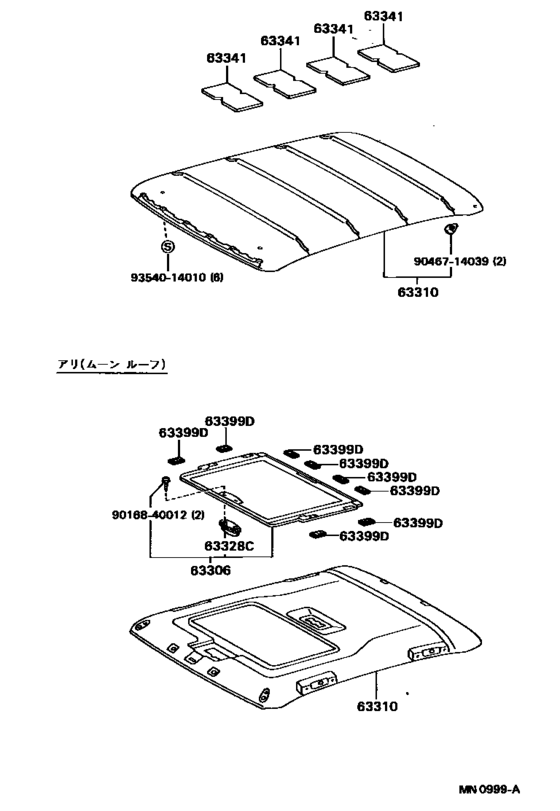

Roof Headlining & Silencer Pad ([09.1990 - ] (9009- )4DS) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL43
- grade
- VX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63306
|
63306
63306-16030-03 Trim Sub-Assy, Sunshade[09.1990 - 08.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) GRAY,TRIM2# |
63306-16030-03 |
US $495.04 |
||
| replacement | |||||
|
63306
|
63306
63306-16030-S3 Trim Sub-Assy, Sunshade[09.1990 - 08.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) GRAY,TRIM2# |
63306-16030-S3 |
US $495.04 |
||
|
63306
|
63306
63306-16030-04 Trim Sub-Assy, Sunshade[09.1990 - 08.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) GRAYISH BLUE,TRIM8# |
63306-16030-04 |
US $495.04 |
||
| replacement | |||||
|
63306
|
63306
63306-16030-W7 Trim Sub-Assy, Sunshade[09.1990 - 08.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) GRAYISH BLUE,TRIM8# |
63306-16030-W7 |
US $495.04 |
||
|
63306
|
63306
63306-16030-07 Trim Sub-Assy, Sunshade[09.1990 - 08.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) SPRUCE,TRIM6# |
63306-16030-07 |
US $495.04 |
||
| replacement | |||||
|
63306
|
63306
63306-16030-G0 Trim Sub-Assy, Sunshade[09.1990 - 08.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) SPRUCE,TRIM6# |
63306-16030-G0 |
US $495.04 |
||
|
63306
|
63306
63306-16030-G0 Trim Sub-Assy, Sunshade[08.1992 - 09.1994] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) LI.SPRUCE,TRIM6# |
63306-16030-G0 |
US $495.04 |
||
|
63306
|
63306
63306-16030-S3 Trim Sub-Assy, Sunshade[08.1992 - 09.1994] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) LI.GRAY,TRIM2# |
63306-16030-S3 |
US $495.04 |
||
|
63306
|
63306
63306-16030-W7 Trim Sub-Assy, Sunshade[08.1992 - 09.1994] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) LI.BLUE,TRIM8# |
63306-16030-W7 |
US $495.04 |
||
|
63310
|
63310
63310-16290-03 Headlining Assy, Roof[09.1990 - 08.1992] EL43,45,NL40..4DS..(VITX,VITZ,VX,VZ) GRAY,TRIM2# |
63310-16290-03 |
US $582.40 |
||
| replacement | |||||
|
63310
|
63310
63310-16290-S3 Headlining Assy, Roof[09.1990 - 08.1992] EL43,45,NL40..4DS..(VITX,VITZ,VX,VZ) GRAY,TRIM2# |
63310-16290-S3 |
US $582.40 |
||
|
63310
|
63310
63310-16290-04 Headlining Assy, Roof[09.1990 - 08.1992] EL43,45,NL40..4DS..(VITX,VITZ,VX,VZ) GRAYISH BLUE,TRIM8# |
63310-16290-04 |
US $582.40 |
||
| replacement | |||||
|
63310
|
63310
63310-16290-W7 Headlining Assy, Roof[09.1990 - 08.1992] EL43,45,NL40..4DS..(VITX,VITZ,VX,VZ) GRAYISH BLUE,TRIM8# |
63310-16290-W7 |
US $582.40 |
||
|
63310
|
63310
63310-16290-07 Headlining Assy, Roof[09.1990 - 08.1992] EL43,45,NL40..4DS..(VITX,VITZ,VX,VZ) SPRUCE,TRIM6# |
63310-16290-07 |
US $582.40 |
||
| replacement | |||||
|
63310
|
63310
63310-16290-G0 Headlining Assy, Roof[09.1990 - 08.1992] EL43,45,NL40..4DS..(VITX,VITZ,VX,VZ) SPRUCE,TRIM6# |
63310-16290-G0 |
US $582.40 |
||
|
63310
|
63310
63310-16290-G0 Headlining Assy, Roof[08.1992 - 09.1994] EL43,45,NL40..4DS..(VITX,VITZ,VX,VZ) LI.SPRUCE,TRIM6# |
63310-16290-G0 |
US $582.40 |
||
|
63310
|
63310
63310-16290-S3 Headlining Assy, Roof[08.1992 - 09.1994] EL43,45,NL40..4DS..(VITX,VITZ,VX,VZ) LI.GRAY,TRIM2# |
63310-16290-S3 |
US $582.40 |
||
|
63310
|
63310
63310-16290-W7 Headlining Assy, Roof[08.1992 - 09.1994] EL43,45,NL40..4DS..(VITX,VITZ,VX,VZ) LI.BLUE,TRIM8# |
63310-16290-W7 |
US $582.40 |
||
|
63310
|
63310
63311-16310-03 Headlining Assy, Roof[09.1990 - 08.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM2# |
63311-16310-03 |
US $602.78 |
||
| replacement | |||||
|
63310
|
63310
63311-16310-S3 Headlining Assy, Roof[09.1990 - 08.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM2# |
63311-16310-S3 |
US $602.78 |
||
|
63310
|
63310
63311-16310-04 Headlining Assy, Roof[09.1990 - 08.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAYISH BLUE,TRIM8# |
63311-16310-04 |
US $602.78 |
||
| replacement | |||||
|
63310
|
63310
63311-16310-W7 Headlining Assy, Roof[09.1990 - 08.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAYISH BLUE,TRIM8# |
63311-16310-W7 |
US $602.78 |
||
|
63310
|
63310
63311-16310-07 Headlining Assy, Roof[09.1990 - 08.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SPRUCE,TRIM6# |
63311-16310-07 |
US $602.78 |
||
| replacement | |||||
|
63310
|
63310
63311-16310-G0 Headlining Assy, Roof[09.1990 - 08.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SPRUCE,TRIM6# |
63311-16310-G0 |
US $602.78 |
||
|
63310
|
63310
63311-16310-G0 Headlining Assy, Roof[08.1992 - 09.1994] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LI.SPRUCE,TRIM6# |
63311-16310-G0 |
US $602.78 |
||
|
63310
|
63310
63311-16310-S3 Headlining Assy, Roof[08.1992 - 09.1994] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LI.GRAY,TRIM2# |
63311-16310-S3 |
US $602.78 |
||
|
63310
|
63310
63311-16310-W7 Headlining Assy, Roof[08.1992 - 09.1994] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),LI.BLUE,TRIM8# |
63311-16310-W7 |
US $602.78 |
||
|
63328C
|
63328C
63328-22010-13 Knob, Sunshade Trim[09.1990 - 04.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) SHADOW GRAY,TRIM2# |
63328-22010-13 |
US $4.66 |
||
| replacement | |||||
|
63328C
|
63328C
63328-33010-B1 Knob, Sunshade Trim[09.1990 - 04.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) SHADOW GRAY,TRIM2# |
63328-33010-B1 |
US $5.82 |
||
|
63328C
|
63328C
63328-22010-14 Knob, Sunshade Trim[09.1990 - 08.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) DARK BLUE |
63328-22010-14 |
US $4.66 |
||
|
63328C
|
63328C
63328-22010-17 Knob, Sunshade Trim[09.1990 - 04.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) SPRUCE,TRIM6# |
63328-22010-17 |
US $4.66 |
||
| replacement | |||||
|
63328C
|
63328C
63328-33010-G0 Knob, Sunshade Trim[09.1990 - 04.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) SPRUCE,TRIM6# |
63328-33010-G0 |
US $5.82 |
||
|
63328C
|
63328C
63328-22010-24 Knob, Sunshade Trim[09.1990 - 04.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) GRAYISH BLUE,TRIM8# |
63328-22010-24 |
US $4.66 |
||
| replacement | |||||
|
63328C
|
63328C
63328-33010-J1 Knob, Sunshade Trim[09.1990 - 04.1992] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) GRAYISH BLUE,TRIM8# |
63328-33010-J1 |
US $5.82 |
||
|
63328C
|
63328C
63328-33010-B1 Knob, Sunshade Trim[04.1992 - 09.1994] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) SHADOW GRAY,TRIM2# |
63328-33010-B1 |
US $5.82 |
||
|
63328C
|
63328C
63328-33010-G0 Knob, Sunshade Trim[04.1992 - 09.1994] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) SPRUCE,TRIM6# |
63328-33010-G0 |
US $5.82 |
||
|
63328C
|
63328C
63328-33010-J1 Knob, Sunshade Trim[04.1992 - 09.1994] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) GRAYISH BLUE,TRIM8# |
63328-33010-J1 |
US $5.82 |
||
|
63341
|
63341
63341-16010 Pad, Roof Silencer, No.1[12.1993 - 09.1994] EL4#,NL40..4DS |
63341-16010 |
US $8.74 |
||
| replacement | |||||
|
63341
|
63341
63341-12330 Pad, Roof Silencer, No.1[12.1993 - 09.1994] EL4#,NL40..4DS |
63341-12330 |
US $5.39 |
||
|
63399D
|
63399D
63399-16010 Clip, Roof Headlining[09.1990 - 09.1994] EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) |
63399-16010 |
US $3.49 |
||
|
9016840012
|
9016840012
90168-40012 SCREW |
90168-40012 |
US $1.92 |
||
|
9046714039
|
9046714039
90467-14039 New Genuine Part |
90467-14039 |
US $1.51 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.96 |
||
