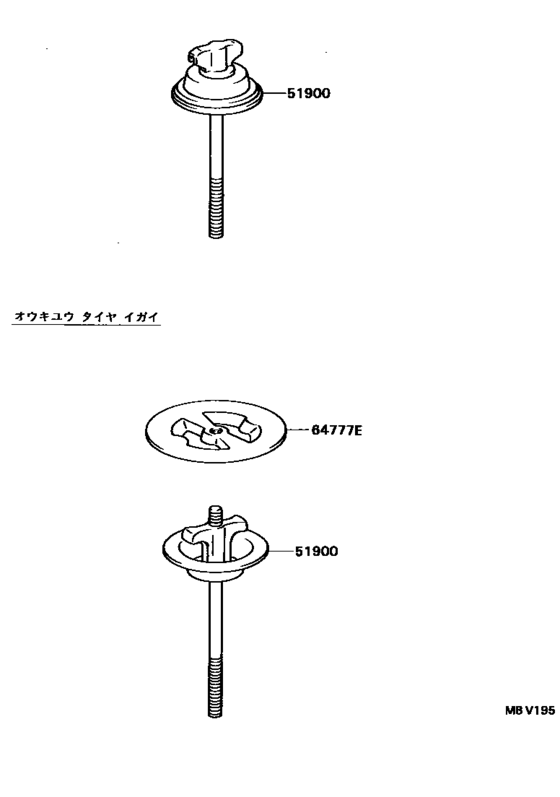

Spare Wheel Carrier ([09.1990 - ] (9009- )) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL43
- grade
- VX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
- Fuel Induction
- EFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51900
|
51900
51900-16040
Carrier Assy, Spare Wheel
[09.1990 - 09.1994] EL4#,NL40 |
51900-16040 |
— | ||
|
51900
|
51900
51900-16050 Carrier Assy, Spare Wheel[09.1990 - 04.1991] EL41,43,NL40 ｵｳｷﾕｳﾀｲﾔ ｲｶﾞｲ |
51900-16050 |
US $9.76 |
||
|
51900
|
51900
51900-16070 Carrier Assy, Spare Wheel[09.1990 - 09.1994] EL43,NL40..SX,VITX,VS,VX ｵｳｷﾕｳﾀｲﾔ ｲｶﾞｲ & 175/65R14-5.5JJ ｱﾙﾐﾎｲ-ﾙ; EL43..EFIS ｵｳｷﾕｳﾀｲﾔ ｲｶﾞｲ & 185/60R14-5.5JJ ｱﾙﾐﾎｲ-ﾙ |
51900-16070 |
US $11.07 |
||
|
51900
|
51900
51900-16080
Carrier Assy, Spare Wheel
[04.1991 - 09.1994] EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ｵｳｷﾕｳﾀｲﾔ ｲｶﾞｲ |
51900-16080 |
— | ||
|
64777E
|
64777E
64777-32030 Cover Sub-Assy, Spare Wheel[09.1990 - 09.1994] EL41,43,NL40 |
64777-32030 |
from US $9.65 |
