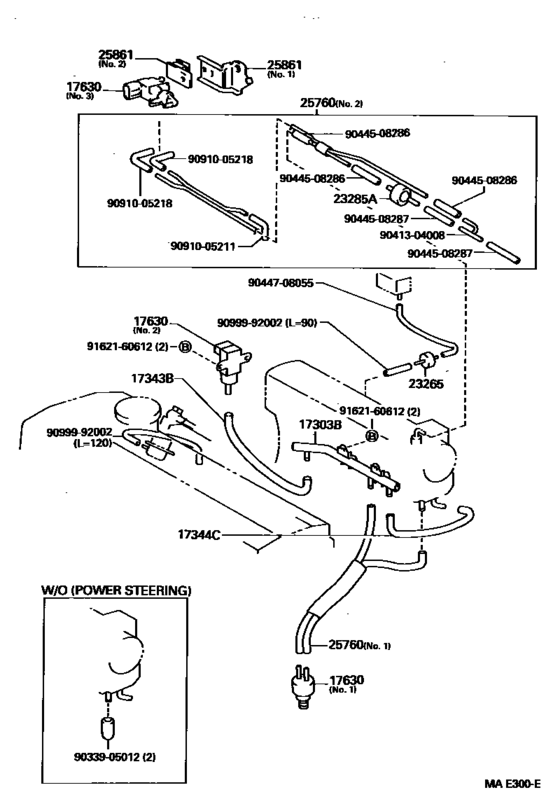

Vacuum Piping ([09.1990 - ] (9009- )5EFE ; (9208- )4EFE) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL43
- grade
- VX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-11400 Pipe Sub-Assy, Air, No.1[09.1990 - 06.1991] 4EFE,5EFE..EL4# |
17303-11400 |
US $88.82 |
||
|
17303B
|
17303B
17303-11401 Pipe Sub-Assy, Air, No.1[06.1991 - 09.1994] 4EFE,5EFE..EL4# |
17303-11401 |
US $90.27 |
||
|
17343B
|
17343B
17343-11080 Hose, No.3(For Idle-Up)[09.1990 - 09.1994] 4EFE,5EFE..EL4# |
17343-11080 |
US $33.20 |
||
|
17344C
|
17344C
17344-11030 Hose, No.4(For Idle-Up)[09.1990 - 09.1994] 4EFE,5EFE..EL4# |
17344-11030 |
US $44.41 |
||
|
17630
|
17630
17630-11050
Valve Assy, Air Control
[09.1990 - 09.1994] 4EFE,5EFE..EL4# ＮＯ．２ |
17630-11050 |
— | ||
|
17630
|
17630
17630-11060
Valve Assy, Air Control
[09.1990 - 09.1994] 4EFE..EL41..TX,VC ＮＯ．１; 4EFE,5EF#..EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ＮＯ．１ |
17630-11060 |
— | ||
|
17630
|
17630
90910-12106
Valve Assy, Air Control
[09.1990 - 05.1991] 5EF#..EL43,45 ＮＯ．３ |
90910-12106 |
— | ||
|
17630
|
17630
90910-12121
Valve Assy, Air Control
[05.1991 - 08.1992] 5EF#..EL43,45 ＮＯ．３ |
90910-12121 |
— | ||
|
23265
|
23265
90917-11030 Filter, Gas, No.1[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
90917-11030 |
from US $8.56 |
||
|
23285A
|
23285A
90917-10080
Filter, Gas, No.1
[09.1990 - 08.1992] 5EF#..EL43,45 |
90917-10080 |
— | ||
|
25760
|
25760
25760-11090 Hose Assy, Vacuum Transmitting[09.1990 - 08.1992] 4EFE,5EFE..EL4# NO.1 |
25760-11090 |
US $40.77 |
||
|
25760
|
25760
25760-11161 Hose Assy, Vacuum Transmitting[09.1990 - 08.1992] 5EFE..EL43,45 NO.2 |
25760-11161 |
US $59.55 |
||
|
25861
|
25861
25861-11010 Bracket, Vacuum Switching Valve[05.1991 - 08.1992] 5EF#..EL43,45 ＮＯ．１ |
25861-11010 |
US $10.63 |
||
|
25861
|
25861
25862-11010 Bracket, Vacuum Switching Valve[05.1991 - 08.1992] 5EF#..EL43,45 ＮＯ．２ |
25862-11010 |
US $20.97 |
||
|
9033905012
|
9033905012
90339-05012 New Genuine Part |
90339-05012 |
US $6.08 |
||
|
9041304008
|
9041304008
90413-04008 Way, 3(For Transfer Breather Hose) |
90413-04008 |
from US $6.46 |
||
|
9044508286
|
9044508286
90445-08286
New Genuine Part
|
90445-08286 |
— | ||
| replacement | |||||
|
9044508286
|
9044508286
90445-08287 New Genuine Part |
90445-08287 |
US $3.64 |
||
|
9044508287
|
9044508287
90445-08287 New Genuine Part |
90445-08287 |
US $3.64 |
||
|
9044708055
|
9044708055
90447-08055 Hose, Vacuum, No.2 (For Front Drive Shift) |
90447-08055 |
US $11.50 |
||
|
9091005211
|
9091005211
90910-05211
New Genuine Part
|
90910-05211 |
— | ||
|
9091005218
|
9091005218
90910-05218 New Genuine Part |
90910-05218 |
US $7.72 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.68 |
||
