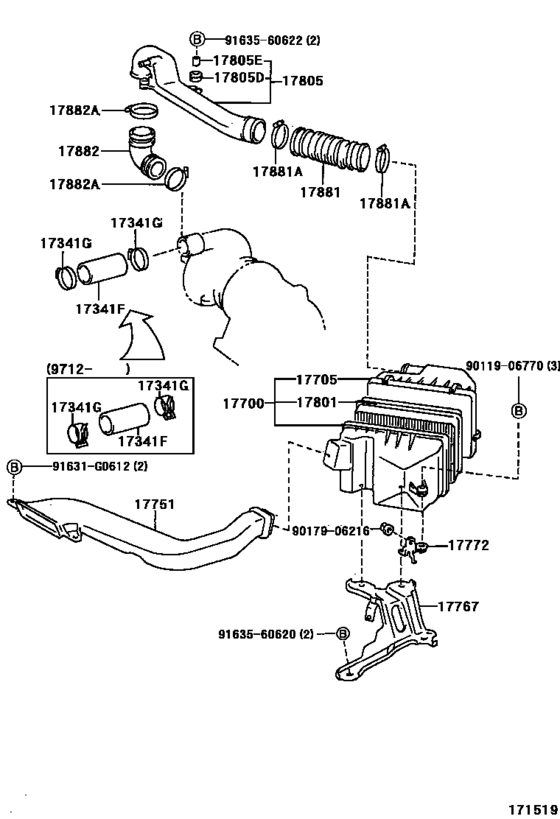

Air Cleaner ([09.1994 - ] (9409- )1NT) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- NL50
- grade
- AX
- ENGINE
- 1NT
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341F
|
17341F
17341-55010
Hose, Air, No.1
[09.1994 - 06.1996] 1NT..NL50 |
17341-55010 |
— | ||
| replacement | |||||
|
17341F
|
17341F
17341-55011
Hose, Air, No.1
[09.1994 - 06.1996] 1NT..NL50 |
17341-55011 |
— | ||
|
17341F
|
17341F
17341-55011
Hose, Air, No.1
[06.1996 - 12.1997] 1NT..NL50 |
17341-55011 |
— | ||
|
17341F
|
17341F
17341-55020
Hose, Air, No.1
[12.1997 -] 1NT..NL50 |
17341-55020 |
— | ||
|
17341G
|
17341G
90460-50001 Clamp Or Clip(For Air Hose, No.1)[09.1994 - 12.1997] 1NT..NL50 |
90460-50001 |
US $5.53 |
||
|
17341G
|
17341G
90466-41002 Clamp Or Clip(For Air Hose, No.1)[12.1997 -] 1NT..NL50 |
90466-41002 |
US $6.84 |
||
| replacement | |||||
|
17341G
|
17341G
90466-41005 Clamp Or Clip, Hose(For Radiator Inlet)[12.1997 -] 1NT..NL50 |
90466-41005 |
US $4.96 |
||
|
17700
|
17700
17700-55030 Cleaner Assy, Air[09.1994 -] 1NT..NL50 |
17700-55030 |
US $336.34 |
||
|
17705
|
17705
17705-55070
Cap Sub-Assy, Air Cleaner
[09.1994 -] 1NT..NL50 |
17705-55070 |
— | ||
|
17751
|
17751
17751-55010 Inlet, Air Cleaner, No.1[09.1994 -] 1NT..NL50 |
17751-55010 |
US $80.08 |
||
|
17767
|
17767
17771-55020 Bracket, Air Cleaner[09.1994 -] 1NT..NL50 |
17771-55020 |
US $25.77 |
||
|
17772
|
17772
17772-11030
Bracket, Intake Air Connector, No.2
[09.1994 -] 4EFE,5EFE..EL5#; 1NT..NL50 |
17772-11030 |
— | ||
|
17801
|
17801
17801-55020 Element Sub-Assy, Air Cleaner Filter[09.1994 -] 1NT..NL50 |
17801-55020 |
US $24.11 |
||
|
17805
|
17805
17860-55020 Connector Sub-Assy, Intake Air[09.1994 -] 1NT..NL50 |
17860-55020 |
US $74.26 |
||
|
17805D
|
17805D
90480-14015
Grommet(For Intake Air Connector)
[09.1994 -] 1NT..NL50 |
90480-14015 |
— | ||
|
17805E
|
17805E
90387-07016 Collar(For Intake Air Connector)[09.1994 -] 1NT..NL50 |
90387-07016 |
US $0.79 |
||
|
17881
|
17881
17881-55080 Hose, Air Cleaner, No.1[09.1994 -] 1NT..NL50 |
17881-55080 |
US $39.02 |
||
|
17881A
|
17881A
96111-10690 Clamp, Hose[09.1994 -] 4EFE,5EFE..EL5#; 1NT..NL50 |
96111-10690 |
from US $2.56 |
||
|
17882
|
17882
17882-55040 Hose, Air Cleaner, No.2[09.1994 -] 1NT..NL50 |
17882-55040 |
US $23.76 |
||
|
17882A
|
17882A
90460-52003 Clamp, Sub Radiator Inlet Hose[09.1994 -] 1NT..NL50 ﾀ-ﾎﾞﾁﾔ-ｼﾞﾔ ｻｲﾄﾞ |
90460-52003 |
US $3.84 |
||
|
17882A
|
17882A
90460-65004
Clamp Or Clip(For Air Hose, No.1)
[09.1994 -] 1NT..NL50 コネクタ側 |
90460-65004 |
— | ||
| replacement | |||||
|
17882A
|
17882A
90460-65002 Clamp Or Clip(For Air Hose, No.1)[09.1994 -] 1NT..NL50 コネクタ側 |
90460-65002 |
from US $3.84 |
||
|
91631G0612
|
91631G0612
91631-G0612 New Genuine Part |
91631-G0612 |
US $0.87 |
||
|
9011906770
|
9011906770
90119-06770 New Genuine Part |
90119-06770 |
US $1.75 |
||
| replacement | |||||
|
9011906770
|
9011906770
90119-06859 BOLT WWASHER |
90119-06859 |
from US $1.05 |
||
|
9017906216
|
9017906216
90179-06216
Direct
|
90179-06216 |
— | ||
| replacement | |||||
|
9017906216
|
9017906216
90179-06274 Nut |
90179-06274 |
from US $0.72 |
||
|
9163560620
|
9163560620
91635-60620
New Genuine Part
|
91635-60620 |
— | ||
| replacement | |||||
|
9163560620
|
9163560620
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.68 |
||
|
9163560622
|
9163560622
91635-60622 New Genuine Part |
91635-60622 |
US $2.62 |
||
| replacement | |||||
|
9163560622
|
9163560622
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.82 |
||
