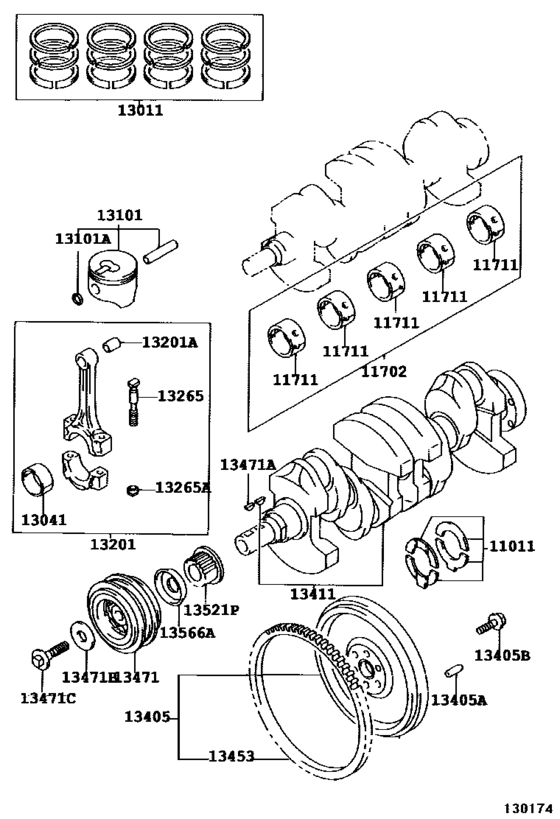

Crankshaft & Piston ([09.1994 - ] (9409- )1NT) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- NL50
- grade
- AX
- ENGINE
- 1NT
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-22011
Washer Set, Crankshaft Thrust
[09.1994 -] 1NT..NL50 ＳＴＤ |
11011-22011 |
— | ||
|
11011
|
11011
11012-22011 Washer Set, Crankshaft Thrust[09.1994 -] 1NT..NL50 Ｏ／Ｓ ０．１２５ |
11012-22011 |
US $19.04 |
||
|
11011
|
11011
11013-22011 Washer Set, Crankshaft Thrust[09.1994 -] 1NT..NL50 Ｏ／Ｓ ０．２５０ |
11013-22011 |
US $18.05 |
||
|
11702
|
11702
11704-55020
Bearing Set, Crankshaft
[09.1994 -] 1NT..NL50 Ｕ／Ｓ ０．２５ |
11704-55020 |
— | ||
|
11702
|
11702
11705-55020 Bearing Set, Crankshaft[09.1994 -] 1NT..NL50 Ｕ／Ｓ ０．５０ |
11705-55020 |
US $260.62 |
||
|
11711
|
11711
11701-55020-01 Bearing, Crankshaft[09.1994 -] 1NT..NL50 MARK 1 |
11701-55020-01 |
US $26.79 |
||
|
11711
|
11711
11701-55020-02 Bearing, Crankshaft[09.1994 -] 1NT..NL50 MARK 2 |
11701-55020-02 |
from US $22.89 |
||
|
11711
|
11711
11701-55020-03 Bearing, Crankshaft[09.1994 -] 1NT..NL50 MARK 3 |
11701-55020-03 |
US $26.79 |
||
|
13011
|
13011
13011-55011
Ring Set, Piston
[09.1994 - 01.1998] 1NT..NL50 ＳＴＤ |
13011-55011 |
— | ||
|
13011
|
13011
13011-55012 Ring Set, Piston[01.1998 -] 1NT..NL50 ＳＴＤ |
13011-55012 |
US $247.52 |
||
|
13011
|
13011
13013-55011
Ring Set, Piston
[09.1994 - 01.1998] 1NT..NL50 Ｏ／Ｓ ０．５０ |
13013-55011 |
— | ||
|
13011
|
13011
13013-55012 Ring Set, Piston[01.1998 -] 1NT..NL50 Ｏ／Ｓ ０．５０ |
13013-55012 |
US $298.48 |
||
|
13041
|
13041
13041-55020-01 Bearing, Connecting Rod[09.1994 -] 1NT..NL50 MARK 1 |
13041-55020-01 |
US $27.96 |
||
|
13041
|
13041
13041-55020-02 Bearing, Connecting Rod[09.1994 -] 1NT..NL50 MARK 2 |
13041-55020-02 |
US $5.25 |
||
|
13041
|
13041
13041-55020-03 Bearing, Connecting Rod[09.1994 -] 1NT..NL50 MARK 3 |
13041-55020-03 |
US $27.96 |
||
|
13101
|
13101
13101-55031-01 Piston Sub-Assy, W/pin[09.1994 - 01.1998] 1NT..NL50 ＳＴＤ,MARK 1 |
13101-55031-01 |
US $196.56 |
||
|
13101
|
13101
13101-55031-02 Piston Sub-Assy, W/pin[09.1994 - 01.1998] 1NT..NL50 ＳＴＤ,MARK 2 |
13101-55031-02 |
from US $115.32 |
||
|
13101
|
13101
13101-55031-03 Piston Sub-Assy, W/pin[09.1994 - 01.1998] 1NT..NL50 ＳＴＤ,MARK 3 |
13101-55031-03 |
US $196.56 |
||
|
13101
|
13101
13101-55032-01 Piston Sub-Assy, W/pin[01.1998 -] 1NT..NL50 MARK1 |
13101-55032-01 |
US $193.65 |
||
|
13101
|
13101
13101-55032-02 Piston Sub-Assy, W/pin[01.1998 -] 1NT..NL50 MARK2 |
13101-55032-02 |
US $193.65 |
||
|
13101
|
13101
13101-55032-03 Piston Sub-Assy, W/pin[01.1998 -] 1NT..NL50 ＳＴＤ,MARK3 |
13101-55032-03 |
US $193.65 |
||
|
13101
|
13101
13103-55031 Piston Sub-Assy, W/pin[09.1994 - 12.1997] 1NT..NL50 Ｏ／Ｓ ０．５０ |
13103-55031 |
US $196.56 |
||
|
13101
|
13101
13103-55032 Piston Sub-Assy, W/pin[12.1997 -] 1NT..NL50 Ｏ／Ｓ ０．５０ |
13103-55032 |
US $155.79 |
||
|
13101A
|
13101A
90521-25003 Ring, Hole Snap(For Piston Pin)[09.1994 -] 1NT..NL50 |
90521-25003 |
US $2.33 |
||
|
13201
|
13201
13201-59075 Rod Sub-Assy, Connecting[09.1994 -] 1NT..NL50 |
13201-59075 |
US $192.19 |
||
|
13201A
|
13201A
90999-73109
Bush(For Connecting Rod Small End)
[09.1994 -] 1NT..NL50 |
90999-73109 |
— | ||
|
13265
|
13265
13265-55011 Bolt, Connecting Rod[09.1994 -] 1NT..NL50 |
13265-55011 |
US $7.43 |
||
|
13265A
|
13265A
90179-08118 Nut, Hexagon(For Connecting Rod Bolt)[09.1994 -] 1NT..NL50 |
90179-08118 |
from US $1.27 |
||
|
13405
|
13405
13405-55011 Flywheel Sub-Assy[09.1994 -] 1NT..NL50..5F |
13405-55011 |
US $321.78 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[09.1994 -] 1NT..NL50..5F 長さ＝１８，外径＝８; 4EFE,5EFE..EL5#..MTM 長さ＝１８，外径＝８ |
90250-08120 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10071 Bolt, Flywheel Setting[09.1994 -] 1NT..NL50..5F |
90105-10071 |
US $6.08 |
||
|
13411
|
13411
13411-55900 Crankshaft[09.1994 -] 1NT..NL50 |
13411-55900 |
US $1,499.68 |
||
|
13453
|
13453
13453-55010
Gear, Flywheel Ring
[09.1994 -] 1NT..NL50..5F |
13453-55010 |
— | ||
|
13471
|
13471
13408-55010 Pulley, Crankshaft[09.1994 -] 1NT..NL50 |
13408-55010 |
US $247.52 |
||
|
13471A
|
13471A
90280-05005 Key(For Oil Pump Drive Spline)[09.1994 -] 1NT..NL50 |
90280-05005 |
from US $0.99 |
||
|
13471B
|
13471B
90201-13019
Washer, Plate(For Crankshaft Pulley Set)
[09.1994 -] 1NT..NL50 |
90201-13019 |
— | ||
|
13471C
|
13471C
90105-12060 Bolt(For Crankshaft Pulley Set)[09.1994 -] 1NT..NL50 |
90105-12060 |
US $3.20 |
||
|
13521P
|
13521P
13521-55010
Pulley, Crankshaft Timing
[09.1994 -] 1NT..NL50 |
13521-55010 |
— | ||
|
13566A
|
13566A
13566-55010 Guide, Timing Belt[09.1994 -] 1NT..NL50 |
13566-55010 |
US $6.99 |
