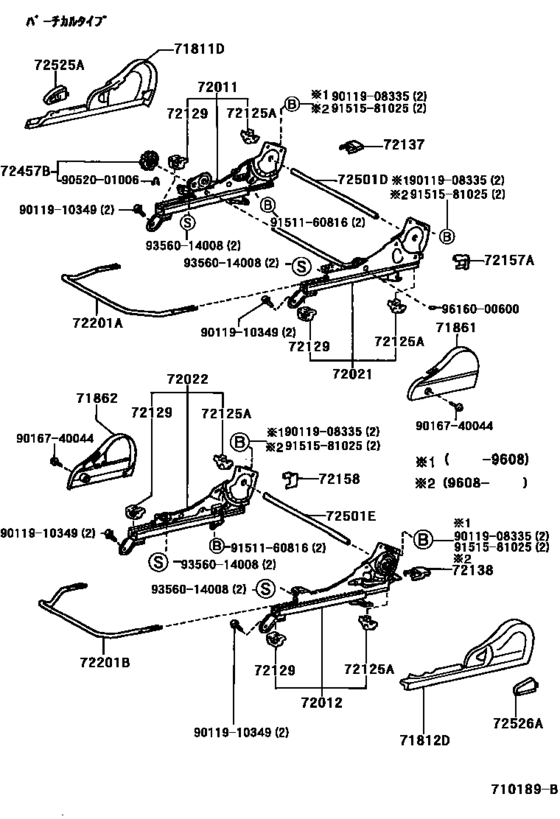

Front Seat & Seat Track ([08.1996 - ] (9608- )EL51,53,NL50) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- NL50
- grade
- AX
- ENGINE
- 1NT
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71811D
|
71811D
71811-16160-B0 Shield, Front Seat Cushion, Rh[09.1994 - 08.1996] EL5#,NL50..AX,JOI,MOA BLUISH GRAY,TRIM1# |
71811-16160-B0 |
US $30.87 |
||
| replacement | |||||
|
71811D
|
71811D
71811-16160-B1 Shield, Front Seat Cushion, Rh[09.1994 - 08.1996] EL5#,NL50..AX,JOI,MOA BLUISH GRAY,TRIM1# |
71811-16160-B1 |
US $30.87 |
||
|
71811D
|
71811D
71811-20300-B0 Shield, Front Seat Cushion, Rh[08.1996 -] EL51,53,NL50 SHADOW GRAY,TRIM1# |
71811-20300-B0 |
US $42.52 |
||
|
71811D
|
71811D
71811-20300-E1 Shield, Front Seat Cushion, Rh[12.1997 -] EL51,53,NL50 OAK,TRIM4# |
71811-20300-E1 |
US $42.52 |
||
| replacement | |||||
|
71811D
|
71811D
71811-20300-B0 Shield, Front Seat Cushion, Rh[12.1997 -] EL51,53,NL50 OAK,TRIM4# |
71811-20300-B0 |
US $42.52 |
||
|
71812D
|
71812D
71812-16110-B0 Shield, Front Seat Cushion, Lh[09.1994 - 08.1996] EL5#,NL50 BLUISH GRAY,TRIM1# |
71812-16110-B0 |
US $30.87 |
||
| replacement | |||||
|
71812D
|
71812D
71812-16110-B1 Shield, Front Seat Cushion, Lh[09.1994 - 08.1996] EL5#,NL50 BLUISH GRAY,TRIM1# |
71812-16110-B1 |
US $30.87 |
||
|
71812D
|
71812D
71812-20270-B0 Shield, Front Seat Cushion, Lh[08.1996 -] EL51,53,NL50..4DS SHADOW GRAY,TRIM1# |
71812-20270-B0 |
US $42.22 |
||
|
71812D
|
71812D
71812-20270-E1 Shield, Front Seat Cushion, Lh[12.1997 -] EL51,53,NL50..4DS OAK,TRIM4# |
71812-20270-E1 |
US $42.37 |
||
|
71861
|
71861
71861-16160-B0 Shield, Front Seat Cushion, Inner Rh[09.1994 - 08.1996] EL51,53,NL50 BLUISH GRAY,TRIM1# |
71861-16160-B0 |
US $32.91 |
||
|
71861
|
71861
71861-16220-B0 Shield, Front Seat Cushion, Inner Rh[08.1996 -] EL51,53,NL50 SHADOW GRAY,TRIM1# |
71861-16220-B0 |
US $24.46 |
||
| replacement | |||||
|
71861
|
71861
71861-16220-B1 Shield, Front Seat Cushion, Inner Rh[08.1996 -] EL51,53,NL50 SHADOW GRAY,TRIM1# |
71861-16220-B1 |
US $24.46 |
||
|
71861
|
71861
71861-16220-E0 Shield, Front Seat Cushion, Inner Rh[12.1997 -] EL51,53,NL50 OAK,TRIM4# |
71861-16220-E0 |
US $24.46 |
||
| replacement | |||||
|
71861
|
71861
71861-16220-B1 Shield, Front Seat Cushion, Inner Rh[12.1997 -] EL51,53,NL50 OAK,TRIM4# |
71861-16220-B1 |
US $24.46 |
||
|
71862
|
71862
71862-16130-B0 Shield, Front Seat Cushion, Inner Lh[09.1994 - 08.1996] EL51,53,NL50 BLUISH GRAY,TRIM1# |
71862-16130-B0 |
US $38.58 |
||
|
71862
|
71862
71862-16190-B0 Shield, Front Seat Cushion, Inner Lh[08.1996 -] EL51,53,NL50 SHADOW GRAY,TRIM1# |
71862-16190-B0 |
US $24.46 |
||
| replacement | |||||
|
71862
|
71862
71862-16190-B1 Shield, Front Seat Cushion, Inner Lh[08.1996 -] EL51,53,NL50 SHADOW GRAY,TRIM1# |
71862-16190-B1 |
US $24.46 |
||
|
71862
|
71862
71862-16190-E0 Shield, Front Seat Cushion, Inner Lh[12.1997 -] EL51,53,NL50 OAK,TRIM4# |
71862-16190-E0 |
US $24.46 |
||
|
72011
|
72011
72010-16260 Adjuster Sub-Assy, Front Seat, Outer Rh[09.1994 - 08.1996] EL5#,NL50..AX,JOI,MOA |
72010-16260 |
US $310.13 |
||
|
72011
|
72011
72011-16310 Adjuster Sub-Assy, Front Seat, Outer Rh[08.1996 -] EL51,53,NL50..AX,JOI,MOA |
72011-16310 |
US $283.92 |
||
|
72012
|
72012
72012-16250 Adjuster Sub-Assy, Front Seat, Outer Lh[08.1996 -] EL51,53,NL50..4DS |
72012-16250 |
US $283.92 |
||
|
72012
|
72012
72020-16230 Adjuster Sub-Assy, Front Seat, Outer Lh[09.1994 - 08.1996] EL5#,NL50..4DS |
72020-16230 |
US $310.13 |
||
|
72021
|
72021
72021-16250 Adjuster Sub-Assy, Front Seat, Inner Rh[08.1996 -] EL51,53,NL50..AX,JOI,MOA |
72021-16250 |
US $283.92 |
||
|
72022
|
72022
72022-16220 Adjuster Sub-Assy, Front Seat, Inner Lh[08.1996 -] EL53..4DS;EL51..4DS..AVE;EL51,NL50..AX,AXX,JOI,MOA,VITX,VX |
72022-16220 |
US $283.92 |
||
|
72125A
|
72125A
72125-16020 Cover, Seat Track, Upper Rear[08.1996 -] EL51,53,NL50 |
72125-16020 |
US $1.16 |
||
|
72129
|
72129
72129-16010 Protector, Seat Track Lower Rail, No.1[08.1996 - 07.1999] EL51,53,NL50 リヤ |
72129-16010 |
US $2.04 |
||
|
72129
|
72129
72129-16020 Protector, Seat Track Lower Rail, No.1[08.1996 - 07.1999] EL51,53,NL50 フロント |
72129-16020 |
US $1.31 |
||
|
72137
|
72137
72137-16030 Cover, Seat Track, Outer Rh[09.1994 - 08.1996] EL5#,NL50 |
72137-16030 |
US $5.24 |
||
|
72137
|
72137
72137-16050 Cover, Seat Track, Outer Rh[08.1996 -] EL51,53,NL50 |
72137-16050 |
US $8.30 |
||
|
72138
|
72138
72138-16030
Cover, Seat Track, Outer Lh
[09.1994 - 08.1996] EL5#,NL50 |
72138-16030 |
— | ||
|
72138
|
72138
72138-16050 Cover, Seat Track, Outer Lh[08.1996 -] EL51,53,NL50 |
72138-16050 |
US $8.01 |
||
|
72157A
|
72157A
72157-16050 Cover, Seat Track Bracket, Inner Rh[09.1994 - 08.1996] EL5#,NL50 |
72157-16050 |
US $5.82 |
||
|
72157A
|
72157A
72157-16080 Cover, Seat Track Bracket, Inner Rh[08.1996 -] EL51,53,NL50 |
72157-16080 |
US $8.15 |
||
|
72158
|
72158
72158-16050 Cover, Seat Track Bracket, Inner Lh[09.1994 - 08.1996] EL5#,NL50 |
72158-16050 |
US $5.82 |
||
|
72158
|
72158
72158-16080
Cover, Seat Track Bracket, Inner Lh
[08.1996 -] EL51,53,NL50 |
72158-16080 |
— | ||
|
72201A
|
72201A
72201-16020 Handle Sub-Assy, Seat Track Rh[08.1996 -] EL51,53,NL50 |
72201-16020 |
US $26.35 |
||
|
72201B
|
72201B
72201-16020 Handle Sub-Assy, Seat Track Rh[08.1996 -] EL51,53,NL50 |
72201-16020 |
US $26.35 |
||
|
72501D
|
72501D
72345-16030 Pipe Sub-Assy, Reclining Connecting, Rh[08.1996 -] EL51,53,NL50 |
72345-16030 |
US $37.42 |
||
|
72501E
|
72501E
72345-16030 Pipe Sub-Assy, Reclining Connecting, Rh[08.1996 -] EL51,53,NL50 |
72345-16030 |
US $37.42 |
||
|
72525A
|
72525A
72525-10040-B0 Handle, Reclining Adjuster Release, Rh[09.1994 - 08.1995] EL5#,NL50 BLUISH GRAY,TRIM1# |
72525-10040-B0 |
US $11.07 |
||
| replacement | |||||
|
72525A
|
72525A
72525-10041-22
Handle, Reclining Adjuster Release, Rh
[09.1994 - 08.1995] EL5#,NL50 BLUISH GRAY,TRIM1# |
72525-10041-22 |
— | ||
|
72525A
|
72525A
72525-10041-B0 Handle, Reclining Adjuster Release, Rh[08.1995 - 08.1996] EL5#,NL50 BLUISH GRAY,TRIM1# |
72525-10041-B0 |
US $11.07 |
||
| replacement | |||||
|
72525A
|
72525A
72525-10041-22
Handle, Reclining Adjuster Release, Rh
[08.1995 - 08.1996] EL5#,NL50 BLUISH GRAY,TRIM1# |
72525-10041-22 |
— | ||
|
72525A
|
72525A
72525-16010-B0
Handle, Reclining Adjuster Release, Rh
[08.1996 -] EL51,53,NL50 SHADOW GRAY,TRIM1# |
72525-16010-B0 |
— | ||
|
72525A
|
72525A
72525-16010-E1
Handle, Reclining Adjuster Release, Rh
[12.1997 -] EL51,53,NL50 OAK,TRIM4# |
72525-16010-E1 |
— | ||
| replacement | |||||
|
72525A
|
72525A
72525-16010-S1 Handle, Reclining Adjuster Release, Rh[12.1997 -] EL51,53,NL50 OAK,TRIM4# |
72525-16010-S1 |
US $15.81 |
||
|
72526A
|
72526A
72526-10040-B0 Handle, Reclining Adjuster Release, Lh[09.1994 - 08.1995] EL5#,NL50 BLUISH GRAY,TRIM1# |
72526-10040-B0 |
US $11.07 |
||
| replacement | |||||
|
72526A
|
72526A
72526-10041-22 Handle, Reclining Adjuster Release, Lh[09.1994 - 08.1995] EL5#,NL50 BLUISH GRAY,TRIM1# |
72526-10041-22 |
US $10.83 |
||
|
72526A
|
72526A
72526-10041-B0 Handle, Reclining Adjuster Release, Lh[08.1995 - 08.1996] EL5#,NL50 BLUISH GRAY,TRIM1# |
72526-10041-B0 |
US $10.83 |
||
| replacement | |||||
|
72526A
|
72526A
72526-10041-22 Handle, Reclining Adjuster Release, Lh[08.1995 - 08.1996] EL5#,NL50 BLUISH GRAY,TRIM1# |
72526-10041-22 |
US $10.83 |
||
|
72526A
|
72526A
72526-16010-B0
Handle, Reclining Adjuster Release, Lh
[08.1996 -] EL51,53,NL50 SHADOW GRAY,TRIM1# |
72526-16010-B0 |
— | ||
|
72526A
|
72526A
72526-16010-E1
Handle, Reclining Adjuster Release, Lh
[12.1997 -] EL51,53,NL50 OAK,TRIM4# |
72526-16010-E1 |
— | ||
| replacement | |||||
|
72526A
|
72526A
72526-16010-S1 Handle, Reclining Adjuster Release, Lh[12.1997 -] EL51,53,NL50 OAK,TRIM4# |
72526-16010-S1 |
US $13.63 |
||
|
9011908335
|
9011908335
90119-08335 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08335 |
US $1.75 |
||
| replacement | |||||
|
9011908335
|
9011908335
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
|
9011910349
|
9011910349
90119-10349
BOLT
|
90119-10349 |
— | ||
| replacement | |||||
|
9011910349
|
9011910349
91651-G1020 BOLT |
91651-G1020 |
from US $1.07 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.74 |
||
|
9052001006
|
9052001006
90520-01006 Ring, Shaft Snap(For Lumber Support Lever) |
90520-01006 |
US $1.28 |
||
|
9151160816
|
9151160816
91511-60816
BOLT
|
91511-60816 |
— | ||
| replacement | |||||
|
9151160816
|
9151160816
91511-B0816 BOLT |
91511-B0816 |
US $0.92 |
||
|
9151581025
|
9151581025
91515-81025 New Genuine Part |
91515-81025 |
US $1.31 |
||
|
9356014008
|
9356014008
93560-14008 New Genuine Part |
93560-14008 |
US $1.16 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
