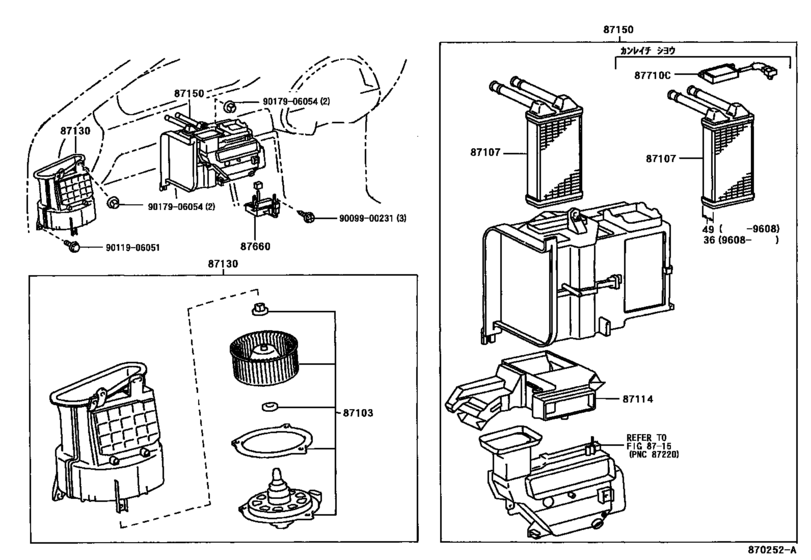

Heating & Air Conditioning - Heater Unit & Blower ([09.1994 - ] ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) (9409- )AX,JOI,MOA) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- NL50
- grade
- AX
- ENGINE
- 1NT
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87103
|
87103
87103-16030
Motor Sub-Assy, Heater Blower, W/fan
[09.1994 -] EL5#,NL50 |
87103-16030 |
— | ||
|
87107
|
87107
87107-10340
Unit Sub-Assy, Heater Radiator
[08.1996 -] EL5#,NL50 ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ |
87107-10340 |
— | ||
|
87107
|
87107
87107-16220
Unit Sub-Assy, Heater Radiator
[09.1994 - 08.1996] NL50 ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ |
87107-16220 |
— | ||
|
87107
|
87107
87107-16270
Unit Sub-Assy, Heater Radiator
[09.1994 - 08.1996] NL50 |
87107-16270 |
— | ||
|
87107
|
87107
87107-42060
Unit Sub-Assy, Heater Radiator
[08.1996 -] NL50 |
87107-42060 |
— | ||
|
87114
|
87114
87114-16050
Cover, Heater
[09.1994 -] EL5#,NL50 |
87114-16050 |
— | ||
|
87114
|
87114
87114-16060
Cover, Heater
[09.1994 -] EL5#,NL50 ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ |
87114-16060 |
— | ||
|
87130
|
87130
87130-16180
Blower Assy, Heater, Front
[09.1994 -] EL5#,NL50 |
87130-16180 |
— | ||
|
87150
|
87150
87150-16530
Radiator Assy, Heater
[09.1994 - 08.1996] NL50 |
87150-16530 |
— | ||
|
87150
|
87150
87150-16531
Radiator Assy, Heater
[08.1996 -] NL50 |
87150-16531 |
— | ||
|
87150
|
87150
87150-16550
Radiator Assy, Heater
[09.1994 - 08.1996] NL50..5F ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ |
87150-16550 |
— | ||
|
87150
|
87150
87150-16551
Radiator Assy, Heater
[08.1996 -] NL50..5F ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ |
87150-16551 |
— | ||
|
87660
|
87660
88660-16050
Servo Assy, Air Conditioner
[09.1994 - 08.1996] EL5#,NL50 |
88660-16050 |
— | ||
|
87710C
|
87710C
87710-10020
Heater Assy, Quick
[09.1994 -] NL50..5F |
87710-10020 |
— | ||
|
9009900231
|
9009900231
90099-00231
New Genuine Part
|
90099-00231 |
— | ||
|
9011906051
|
9011906051
90119-06051
New Genuine Part
|
90119-06051 |
— | ||
| replacement | |||||
|
9011906051
|
9011906051
90119-06074 Bolt |
90119-06074 |
US $1.92 |
||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.82 |
||
