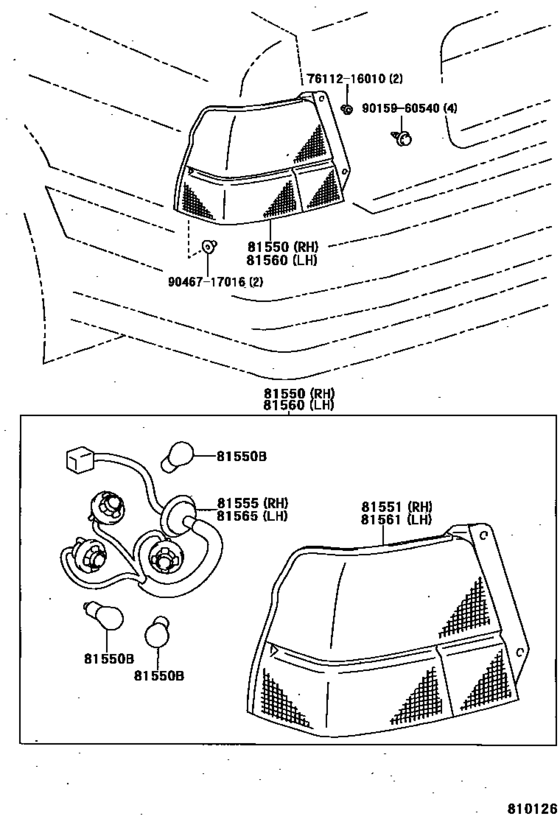

Rear Combination Lamp ([09.1994 - ] (9409- )4DS) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- NL50
- grade
- AX
- ENGINE
- 1NT
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-16480 Lamp Assy, Rear Combination, Rh[09.1994 - 12.1997] EL5#,NL50..4DS |
81550-16480 |
US $270.82 |
||
|
81550
|
81550
81550-16580 Lamp Assy, Rear Combination, Rh[12.1997 -] EL5#,NL50..4DS..(AX,JOI) |
81550-16580 |
US $292.66 |
||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[12.1997 -] EL5#,NL50 １２Ｖ ２１Ｗ |
90981-13043 |
from US $3.52 |
||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[12.1997 -] EL5#,NL50 １２Ｖ ２１／５Ｗ |
90981-13044 |
from US $3.65 |
||
|
81550B
|
81550B
90981-15009 Bulb(For Headlamp, No.2)[12.1997 -] EL5#,NL50 １２Ｖ ２１Ｗ，アンバー |
90981-15009 |
from US $5.05 |
||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[09.1994 - 12.1997] EL5#,NL50..4DS １２Ｖ ２１Ｗ |
99132-11210 |
from US $2.72 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[09.1994 - 12.1997] EL5#,NL50..4DS １２Ｖ ２１／５Ｗ |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-16480 Lens, Rear Combination Lamp, Rh[09.1994 - 12.1997] EL5#,NL50..4DS |
81551-16480 |
US $227.14 |
||
|
81551
|
81551
81551-16580 Lens, Rear Combination Lamp, Rh[12.1997 -] EL5#,NL50..4DS..(AX,JOI) |
81551-16580 |
US $241.70 |
||
|
81555
|
81555
81555-16480 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[09.1994 - 12.1997] EL5#,NL50..4DS |
81555-16480 |
US $33.49 |
||
|
81555
|
81555
81555-16580 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[12.1997 -] EL5#,NL50..4DS |
81555-16580 |
US $33.20 |
||
|
81560
|
81560
81560-16520 Lamp Assy, Rear Combination, Lh[09.1994 - 12.1997] EL5#,NL50..4DS |
81560-16520 |
US $270.82 |
||
|
81560
|
81560
81560-16620 Lamp Assy, Rear Combination, Lh[12.1997 -] EL5#,NL50..4DS..(AX,JOI) |
81560-16620 |
US $292.66 |
||
|
81561
|
81561
81561-16520 Lens, Rear Combination Lamp, Lh[09.1994 - 12.1997] EL5#,NL50..4DS |
81561-16520 |
US $227.14 |
||
|
81561
|
81561
81561-16620 Lens, Rear Combination Lamp, Lh[12.1997 -] EL5#,NL50..4DS..(AX,JOI) |
81561-16620 |
from US $157.05 |
||
|
81565
|
81565
81555-16480 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[09.1994 - 12.1997] EL5#,NL50..4DS |
81555-16480 |
US $33.49 |
||
|
81565
|
81565
81555-16580 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[12.1997 -] EL5#,NL50..4DS |
81555-16580 |
US $33.20 |
||
|
7611216010
|
7611216010
76112-16010 CAP FLAG POLE |
76112-16010 |
US $0.96 |
||
|
9015960540
|
9015960540
90159-60540 SCREW W/WASHER |
90159-60540 |
US $1.12 |
||
|
9046717016
|
9046717016
90467-17016 CLIP |
90467-17016 |
US $3.04 |
