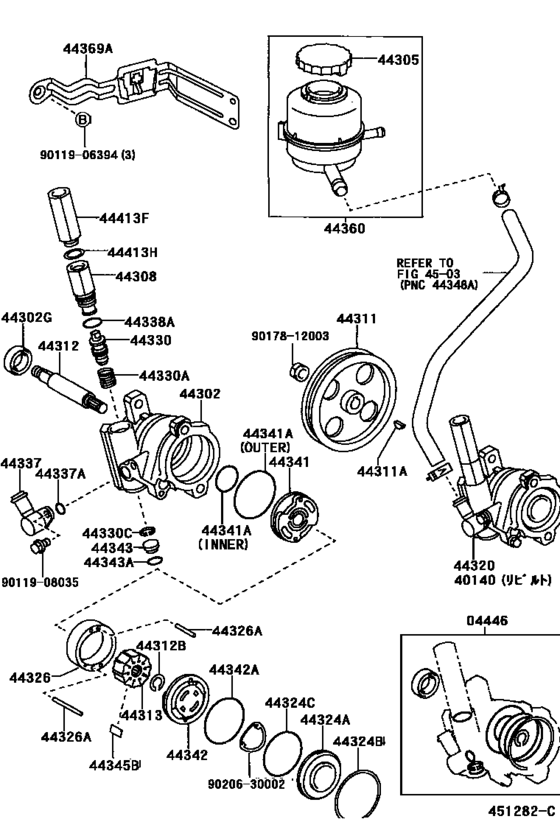

Vane Pump & Reservoir (Power Steering) ([09.1994 - ] (9409- )NL50) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- NL50
- grade
- AX
- ENGINE
- 1NT
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-16060 Gasket Kit, Power Steering Pump[09.1994 - 02.1995] NL50 |
04446-16060 |
US $41.06 |
||
| replacement | |||||
|
04446
|
04446
04446-16061
Gasket Kit, Power Steering Pump
[09.1994 - 02.1995] NL50 |
04446-16061 |
— | ||
|
04446
|
04446
04446-16061
Gasket Kit, Power Steering Pump
[02.1995 - 07.1999] NL50 |
04446-16061 |
— | ||
|
40140
|
40140
40140-16180 Pump Assy,vane Rebuilt[09.1994 - 07.1999] NL50 ＴＯＹＯＤＡ ＫＯＫＩ |
40140-16180 |
US $771.68 |
||
| replacement | |||||
|
40140
|
40140
44320-16180 Pump Assy, Vane[09.1994 - 07.1999] NL50 ＴＯＹＯＤＡ ＫＯＫＩ |
44320-16180 |
US $1,100.74 |
||
|
44302
|
44302
44302-16030 Housing Sub-Assy, Vane Pump, Front[09.1994 - 07.1999] NL50 |
44302-16030 |
US $266.45 |
||
|
44302G
|
44302G
90311-18007 Seal, Oil, No.2(For Vane Pump Housing)[09.1994 - 07.1999] EL5#,NL50 |
90311-18007 |
from US $3.84 |
||
|
44305
|
44305
44305-22030
Cap Sub-Assy, Vane Pump Oil Reservoir
[09.1994 -] EL5#,NL50 |
44305-22030 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-22050 Cap Sub-Assy, Vane Pump Oil ReservoirVANE PUMP OIL RESERVOIR [09.1994 -] EL5#,NL50 |
44305-22050 |
from US $23.10 |
||
|
44308
|
44308
44308-20050 Union Sub-Assy, Pressure Port[09.1994 - 07.1999] NL50 |
44308-20050 |
US $64.06 |
||
|
44311
|
44311
44311-12030 Pulley, Vane Pump[09.1994 - 07.1999] NL50 |
44311-12030 |
US $92.89 |
||
|
44311A
|
44311A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[09.1994 - 07.1999] EL5#,NL50 |
90280-05008 |
US $3.52 |
||
|
44312
|
44312
44312-12030 Shaft, Vane Pump[09.1994 - 07.1999] EL5#,NL50 |
44312-12030 |
from US $35.38 |
||
|
44312B
|
44312B
90520-10003 Ring, Snap, No.1(For Vane Pump Shaft)[09.1994 - 07.1999] EL5#,NL50 |
90520-10003 |
US $1.22 |
||
|
44313
|
44313
44313-22040 Rotor, Vane Pump[09.1994 - 07.1999] EL5#,NL50 マーク無し |
44313-22040 |
US $108.33 |
||
|
44313
|
44313
44313-22050 Rotor, Vane Pump[09.1994 - 07.1999] EL5#,NL50 マーク １ |
44313-22050 |
US $101.34 |
||
|
44313
|
44313
44313-22060 Rotor, Vane Pump[09.1994 - 07.1999] EL5#,NL50 マーク ２ |
44313-22060 |
US $103.38 |
||
|
44313
|
44313
44313-22070 Rotor, Vane Pump[09.1994 - 07.1999] EL5#,NL50 マーク ３ |
44313-22070 |
US $103.38 |
||
|
44313
|
44313
44313-22080 Rotor, Vane Pump[09.1994 - 07.1999] EL5#,NL50 マーク ４ |
44313-22080 |
US $103.38 |
||
|
44320
|
44320
44320-16180 Pump Assy, Vane[09.1994 - 07.1999] NL50 |
44320-16180 |
US $1,100.74 |
||
|
44324A
|
44324A
44324-12031 Housing Sub-Assy, Vane Pump, Rear[09.1994 - 07.1999] EL5#,NL50 |
44324-12031 |
US $81.54 |
||
|
44324B
|
44324B
90521-62002 Ring, Snap, No.1(For Vane Pump Housing)[09.1994 - 07.1999] EL5#,NL50 |
90521-62002 |
US $3.14 |
||
|
44324C
|
44324C
90301-52001 Ring, O(For Pump Housing Rear)[09.1994 - 07.1999] EL5#,NL50 |
90301-52001 |
from US $3.26 |
||
|
44326
|
44326
44325-12110 Ring, Fixed(For Vane Pump)[09.1994 - 07.1999] EL5#,NL50 マーク無し |
44325-12110 |
US $117.94 |
||
|
44326
|
44326
44325-12120 Ring, Fixed(For Vane Pump)[09.1994 - 07.1999] EL5#,NL50 マーク １ |
44325-12120 |
US $117.94 |
||
|
44326
|
44326
44325-12130 Ring, Fixed(For Vane Pump)[09.1994 - 07.1999] EL5#,NL50 マーク ２ |
44325-12130 |
US $117.94 |
||
|
44326
|
44326
44325-12140 Ring, Fixed(For Vane Pump)[09.1994 - 07.1999] EL5#,NL50 マーク ３ |
44325-12140 |
US $117.94 |
||
|
44326
|
44326
44325-12150 Ring, Fixed(For Vane Pump)[09.1994 - 07.1999] EL5#,NL50 マーク ４ |
44325-12150 |
US $117.94 |
||
|
44326A
|
44326A
90250-04047 Pin, Straight(For Vane Pump Cam Ring)[09.1994 - 07.1999] EL5#,NL50 長さ＝２８，外径＝４．０ |
90250-04047 |
US $1.05 |
||
|
44326A
|
44326A
90250-04049 Pin, Straight(For Vane Pump Cam Ring)[09.1994 - 07.1999] EL5#,NL50 長さ＝４３，外径＝４．０ |
90250-04049 |
US $2.62 |
||
|
44330
|
44330
44330-20010 Valve Assy, Flow Control[09.1994 - 12.1997] EL53,NL50 マーク Ａ |
44330-20010 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-35191 Valve Assy, Flow Control[09.1994 - 12.1997] EL53,NL50 マーク Ａ |
44330-35191 |
US $116.48 |
||
|
44330
|
44330
44330-20020 Valve Assy, Flow Control[09.1994 - 12.1997] EL53,NL50 マーク Ｂ |
44330-20020 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-35201 Valve Assy, Flow Control[09.1994 - 12.1997] EL53,NL50 マーク Ｂ |
44330-35201 |
US $116.48 |
||
|
44330
|
44330
44330-20030 Valve Assy, Flow Control[09.1994 - 12.1997] EL53,NL50 マーク Ｃ |
44330-20030 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-35211 Valve Assy, Flow Control[09.1994 - 12.1997] EL53,NL50 マーク Ｃ |
44330-35211 |
US $116.48 |
||
|
44330
|
44330
44330-20040 Valve Assy, Flow Control[09.1994 - 12.1997] EL53,NL50 マーク Ｄ |
44330-20040 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-35221 Valve Assy, Flow Control[09.1994 - 12.1997] EL53,NL50 マーク Ｄ |
44330-35221 |
US $116.48 |
||
|
44330
|
44330
44330-20050 Valve Assy, Flow Control[09.1994 - 12.1997] EL53,NL50 マーク Ｅ |
44330-20050 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-35231 Valve Assy, Flow Control[09.1994 - 12.1997] EL53,NL50 マーク Ｅ |
44330-35231 |
US $116.48 |
||
|
44330
|
44330
44330-20060 Valve Assy, Flow Control[09.1994 - 12.1997] EL53,NL50 マーク Ｆ |
44330-20060 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-35241 Valve Assy, Flow Control[09.1994 - 12.1997] EL53,NL50 マーク Ｆ |
44330-35241 |
US $116.48 |
||
|
44330A
|
44330A
90501-12103 Spring, Compression(For Flow Control Valve)[09.1994 - 07.1999] EL5#,NL50 |
90501-12103 |
US $2.56 |
||
|
44330C
|
44330C
96151-01700 Ring, Snap(For Flow Control Valve)[09.1994 - 07.1999] NL50 |
96151-01700 |
US $3.67 |
||
|
44337
|
44337
44337-16051 Union, Power Steering Suction Port[09.1994 - 07.1999] NL50 |
44337-16051 |
US $25.63 |
||
|
44337A
|
44337A
90301-11016 Ring, O(For Power Steering Suction Port)[12.1996 - 07.1999] EL5#,NL50 |
90301-11016 |
from US $2.24 |
||
|
44337A
|
44337A
90301-12003
Ring, O(For Power Steering Suction Port)
[09.1994 - 12.1996] EL5#,NL50 |
90301-12003 |
— | ||
| replacement | |||||
|
44337A
|
44337A
90301-11016 Ring, O(For Power Steering Suction Port)[09.1994 - 12.1996] EL5#,NL50 |
90301-11016 |
from US $2.24 |
||
|
44338A
|
44338A
90301-19003
Ring, O(For Pressure Port Union)
[09.1994 - 12.1996] EL5#,NL50 内径＝１９．５，外径＝２２．５ |
90301-19003 |
— | ||
| replacement | |||||
|
44338A
|
44338A
90301-19018 Ring, O(For Pressure Port Union)[09.1994 - 12.1996] EL5#,NL50 内径＝１９．５，外径＝２２．５ |
90301-19018 |
from US $2.28 |
||
|
44338A
|
44338A
90301-19013
Seal, Oil, No.1(For Vane Pump Housing)
[12.1996 - 07.1999] EL5#,NL50 内径＝１９．２，外径＝２２．３ |
90301-19013 |
— | ||
| replacement | |||||
|
44338A
|
44338A
90301-19018 Ring, O(For Pressure Port Union)[12.1996 - 07.1999] EL5#,NL50 内径＝１９．２，外径＝２２．３ |
90301-19018 |
from US $2.28 |
||
|
44341
|
44341
44341-32010 Plate, Vane Pump Side, Front[09.1994 - 07.1999] EL5#,NL50 |
44341-32010 |
US $39.17 |
||
|
44341A
|
44341A
90301-25001
Ring, O(For Vane Pump Front Side Plate)
[09.1994 - 07.1999] EL5#,NL50 内側 |
90301-25001 |
— | ||
| replacement | |||||
|
44341A
|
44341A
90301-25008 Ring, O(For Vane Pump Front Side Plate)[09.1994 - 07.1999] EL5#,NL50 内側 |
90301-25008 |
US $4.19 |
||
|
44341A
|
44341A
90301-52001 Ring, O(For Pump Housing Rear)[09.1994 - 07.1999] EL5#,NL50 外側 |
90301-52001 |
from US $3.26 |
||
|
44342
|
44342
44342-32010 Plate, Vane Pump Side, Rear[09.1994 - 07.1999] EL5#,NL50 |
44342-32010 |
US $55.91 |
||
|
44342A
|
44342A
90301-52001 Ring, O(For Pump Housing Rear)[09.1994 - 07.1995] EL5#,NL50 |
90301-52001 |
from US $3.26 |
||
|
44342A
|
44342A
90301-53006
Ring, O(For Pump Housing Rear)
[07.1995 - 07.1999] EL5#,NL50 |
90301-53006 |
— | ||
| replacement | |||||
|
44342A
|
44342A
90301-53007 Ring, O(For Pump Housing Rear)[07.1995 - 07.1999] EL5#,NL50 |
90301-53007 |
from US $2.34 |
||
|
44343
|
44343
44343-12040 Seat, Flow Control Spring[09.1994 - 07.1999] NL50 |
44343-12040 |
US $9.43 |
||
|
44343A
|
44343A
90301-13012 Ring, O(For Flow Control Spring Seat)[12.1996 - 07.1999] NL50 |
90301-13012 |
US $3.20 |
||
|
44343A
|
44343A
96711-19014 O-Ring[09.1994 - 12.1996] NL50 |
96711-19014 |
from US $2.34 |
||
|
44345B
|
44345B
44345-12010 Plate, Vane Pump[09.1994 - 07.1999] EL5#,NL50 長さ＝１４．９９７ |
44345-12010 |
US $10.56 |
||
|
44345B
|
44345B
44345-12020 Plate, Vane Pump[09.1994 - 07.1999] EL5#,NL50 長さ＝１４．９９５ |
44345-12020 |
US $6.12 |
||
|
44345B
|
44345B
44345-12030 Plate, Vane Pump[09.1994 - 07.1999] EL5#,NL50 長さ＝１４．９９３ |
44345-12030 |
US $6.12 |
||
|
44345B
|
44345B
44345-12040 Plate, Vane Pump[09.1994 - 07.1999] EL5#,NL50 長さ＝１４．９９１ |
44345-12040 |
US $6.12 |
||
|
44345B
|
44345B
44345-12050 Plate, Vane Pump[09.1994 - 07.1999] EL5#,NL50 長さ＝１４．９８９ |
44345-12050 |
US $6.12 |
||
|
44360
|
44360
44360-10040 Reservoir Assy, Vane Pump Oil[09.1994 -] EL5#,NL50 |
44360-10040 |
US $178.87 |
||
|
44369A
|
44369A
44369-16010 Bracket, Oil Reservoir, No.1[09.1994 -] EL5#,NL50 |
44369-16010 |
US $40.77 |
||
|
44413F
|
44413F
44413-10050 Tube, Pressure Feed, No.2[09.1994 - 07.1999] NL50 |
44413-10050 |
US $66.25 |
||
|
44413H
|
44413H
90430-16242 Gasket, W/head Straight Screw Plug[09.1994 - 07.1999] NL50 |
90430-16242 |
from US $0.88 |
||
|
9011906394
|
9011906394
90119-06394 BOLT WWASHER |
90119-06394 |
US $2.56 |
||
|
9011908035
|
9011908035
90119-08035 New Genuine Part |
90119-08035 |
US $2.04 |
||
|
9017812003
|
9017812003
90178-12003 Nut(For Vane Pump Pulley) |
90178-12003 |
from US $0.96 |
||
|
9020630002
|
9020630002
90206-30002 New Genuine Part |
90206-30002 |
US $4.80 |
||
