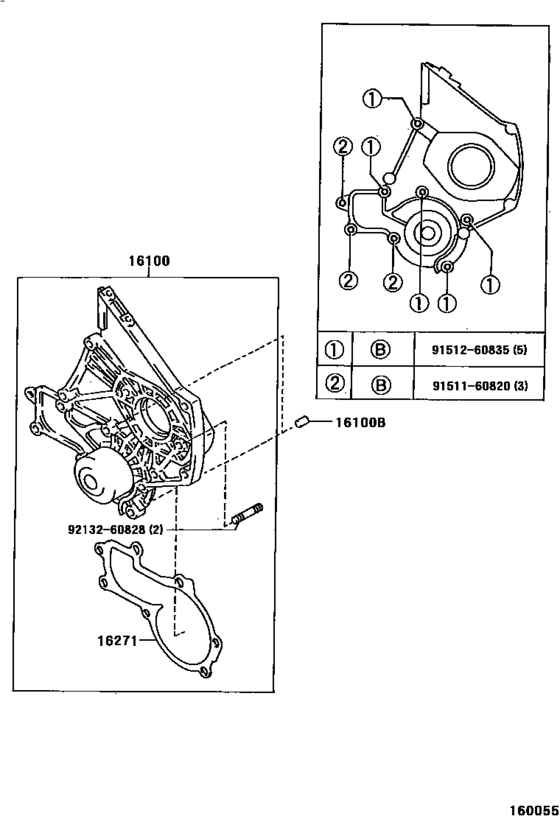

Water Pump ([09.1994 - ] (9409- )1NT) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- NL50
- grade
- AX
- ENGINE
- 1NT
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-59235 Pump Assy, Engine Water[09.1994 -] 1NT..NL50 |
16100-59235 |
US $173.26 |
||
|
16100B
|
16100B
90253-11021 Pin, Ring[09.1994 -] 1NT..NL50 |
90253-11021 |
from US $1.46 |
||
|
16271
|
16271
16271-55010 Gasket, Water Pump[09.1994 -] 1NT..NL50 |
16271-55010 |
US $8.74 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.05 |
||
|
9151260835
|
9151260835
91512-60835 Bolt (for Pawl Stopper Plate) |
91512-60835 |
US $1.46 |
||
| replacement | |||||
|
9151260835
|
9151260835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.44 |
||
|
9213260828
|
9213260828
92132-60828 Bolt,stud(For Timing Gear Case) |
92132-60828 |
US $0.79 |
||
