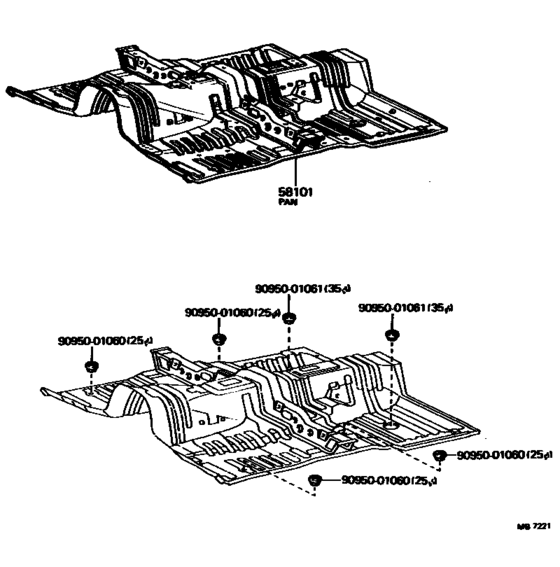

Floor Pan & Lower Back Panel ([08.1977 - 11.1979] (7708-7911)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1978 - 1979
- Sales region
- U.S.A.
- Frame
- MX32
- grade
- LG
- body
- SED
- ENGINE
- 4M
- Model
- CRESSIDA
- From
- 08.1978
- To
- 08.1979
- Vehicle Model
- Cressida
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58101
|
58101
58101-22221 Pan Sub-Assy, Front FloorFRONT FLOOR [08.1978 - 08.1979] MX32..LG |
58101-22221 |
US $995.90 |
||
| replacements | |||||
|
58101
|
58101
46361-22050 Rod, Parking Brake PullPARKING BRAKE PULL [08.1978 - 08.1979] MX32..LG |
46361-22050 |
US $8.44 |
||
|
58101
|
58101
58101-22223
Pan Sub-assy, Front Floor
[08.1978 - 08.1979] MX32..LG |
58101-22223 |
— | ||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
