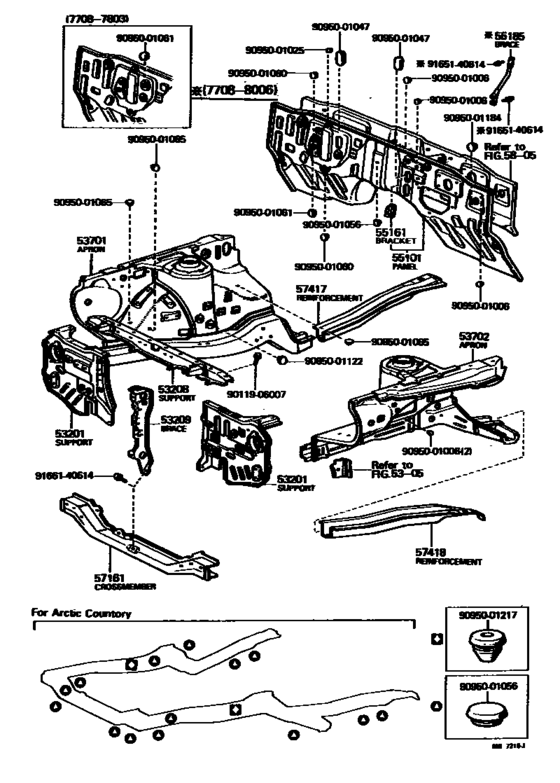

Front Fender Apron & Dash Panel ([08.1977 - 08.1980] (7708-8008)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1978 - 1979
- Sales region
- U.S.A.
- Frame
- MX32
- grade
- LG
- body
- SED
- ENGINE
- 4M
- Model
- CRESSIDA
- From
- 08.1978
- To
- 08.1979
- Vehicle Model
- Cressida
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53201
|
53201
53202-22040
Support Sub-Assy, Radiator
[06.1978 - 08.1980] MX32..LG..CBR FOR RH. |
53202-22040 |
— | ||
|
53201
|
53201
53203-22080
Support Sub-Assy, Radiator
[06.1978 - 08.1980] MX32..LG..CBR FOR LH. |
53203-22080 |
— | ||
|
53208
|
53208
53205-22010
Support Sub-Assy, Radiator Grille, Center
[08.1977 - 08.1980] MX32..LG..CBR |
53205-22010 |
— | ||
|
53209
|
53209
53217-22050
Brace Sub-Assy, Hood Lock
[06.1978 - 08.1980] MX32..LG..CBR |
53217-22050 |
— | ||
|
53701
|
53701
53710-22021
Apron Sub-Assy, Front Fender, Rh
[08.1977 - 08.1980] MX32..LG..CBR |
53710-22021 |
— | ||
|
53702
|
53702
53720-22021
Apron Sub-Assy, Front Fender, Lh
[08.1977 - 08.1980] MX32..LG..CBR |
53720-22021 |
— | ||
|
55101
|
55101
55101-22211
Panel Sub-Assy, Dash
[08.1978 - 02.1979] MX32..LG |
55101-22211 |
— | ||
| replacements | |||||
|
55101
|
55101
55101-22471
Panel Sub-Assy, Dash
[08.1978 - 02.1979] MX32..LG |
55101-22471 |
— | ||
|
55101
|
55101
90480-55005 New Genuine Part[08.1978 - 02.1979] MX32..LG |
90480-55005 |
US $8.59 |
||
|
55101
|
55101
45025-22040
Cover, Steering Column Hole
[08.1978 - 02.1979] MX32..LG |
45025-22040 |
— | ||
|
55101
|
55101
90179-06308 NUT[08.1978 - 02.1979] MX32..LG |
90179-06308 |
US $1.28 |
||
|
55101
|
55101
55161-22040
Bracket, Heater Mounting
[08.1978 - 02.1979] MX32..LG |
55161-22040 |
— | ||
|
55101
|
55101
55164-22020
Bracket, Heater Mounting
[08.1978 - 02.1979] MX32..LG |
55164-22020 |
— | ||
|
55101
|
55101
55101-22212
Panel Sub-Assy, Dash
[02.1979 - 08.1979] MX32..LG |
55101-22212 |
— | ||
| replacements | |||||
|
55101
|
55101
55101-22471
Panel Sub-Assy, Dash
[02.1979 - 08.1979] MX32..LG |
55101-22471 |
— | ||
|
55101
|
55101
45025-22040
Cover, Steering Column Hole
[02.1979 - 08.1979] MX32..LG |
45025-22040 |
— | ||
|
55101
|
55101
90179-06308 NUT[02.1979 - 08.1979] MX32..LG |
90179-06308 |
US $1.28 |
||
|
55101
|
55101
55161-22040
Bracket, Heater Mounting
[02.1979 - 08.1979] MX32..LG |
55161-22040 |
— | ||
|
55101
|
55101
55164-22020
Bracket, Heater Mounting
[02.1979 - 08.1979] MX32..LG |
55164-22020 |
— | ||
|
55161
|
55161
55161-22040
Bracket, Heater Mounting
[08.1977 - 08.1980] MX32..LG..CBR |
55161-22040 |
— | ||
|
55185
|
55185
55185-22030
Brace, Dash Panel To Cowl
[08.1978 - 03.1980] MX32..LG..CBR |
55185-22030 |
— | ||
|
57161
|
57161
57104-22060
Crossmember, Front
[08.1978 - 08.1980] MX32..LG..CBR |
57104-22060 |
— | ||
|
57417
|
57417
57505-22020
Reinforcement, Front Floor Under, Rh
[06.1978 - 08.1980] MX32..LG..CBR |
57505-22020 |
— | ||
|
57418
|
57418
57506-22020
Reinforcement, Front Floor Under, Lh
[06.1978 - 08.1980] MX32..LG..CBR |
57506-22020 |
— | ||
|
9011906007
|
9011906007
90119-06007
New Genuine Part
|
90119-06007 |
— | ||
| replacement | |||||
|
9011906007
|
9011906007
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
|
9095001025
|
9095001025
90950-01025 Plug, Hole(For Front Fender Apron) |
90950-01025 |
US $3.84 |
||
|
9095001047
|
9095001047
90950-01047 Plug, Hole, No.1(For Dash Panel) |
90950-01047 |
US $2.33 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001065
|
9095001065
90950-01065 Plug, Hole(For Front Fender Apron) |
90950-01065 |
US $4.48 |
||
|
9095001122
|
9095001122
90950-01122
Plug, Hole(For Front Fender Apron)
|
90950-01122 |
— | ||
|
9095001184
|
9095001184
90950-01184 PLUG |
90950-01184 |
US $7.57 |
||
|
9095001217
|
9095001217
90950-01217 New Genuine Part |
90950-01217 |
US $2.77 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9166140614
|
9166140614
91661-40614
New Genuine Part
|
91661-40614 |
— | ||
| replacement | |||||
|
9166140614
|
9166140614
91661-A0614 New Genuine Part |
91661-A0614 |
US $1.76 |
||
