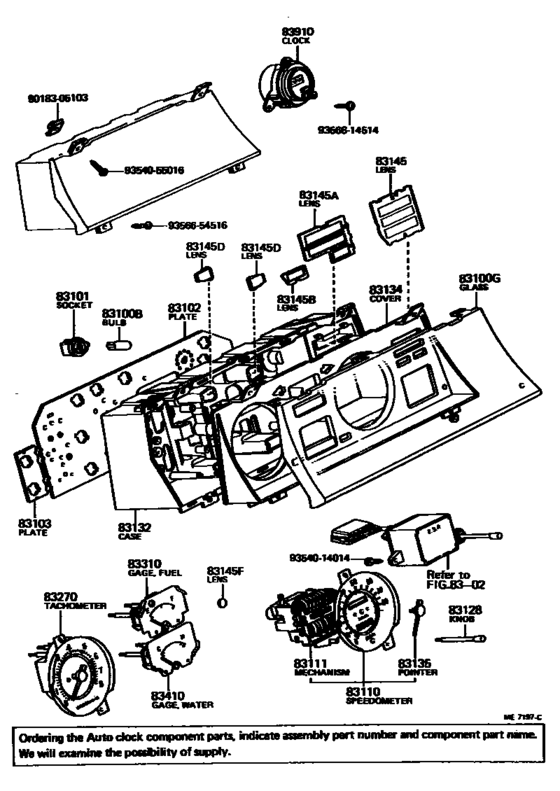

Meter ([08.1978 - 08.1980] (7808-8008)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1978 - 1979
- Sales region
- U.S.A.
- Frame
- MX32
- grade
- LG
- body
- SED
- ENGINE
- 4M
- Model
- CRESSIDA
- From
- 08.1978
- To
- 08.1979
- Vehicle Model
- Cressida
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1977 - 08.1980] MX32..LG..CBR 12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1977 - 08.1980] MX32..LG..CBR 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83134-22600
Glass, Combination Meter
[08.1977 - 08.1980] MX32..LG..CBR |
83134-22600 |
— | ||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[08.1977 - 08.1980] MX32..LG..CBR |
83101-20040 |
from US $1.77 |
||
|
83102
|
83102
83247-22110
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1978 - 08.1979] MX32..LG |
83247-22110 |
— | ||
|
83103
|
83103
83247-22040
Plate Sub-Assy, Combination Meter Circuit, No.2
[08.1977 - 08.1980] MX32..LG..CBR |
83247-22040 |
— | ||
|
83110
|
83110
83110-22320
Speedometer Assy
[08.1978 - 08.1979] MX32..LG CANADA SPEC. |
83110-22320 |
— | ||
|
83110
|
83110
83110-22350
Speedometer Assy
[08.1978 - 08.1979] MX32..LG U.S.A. SPEC. |
83110-22350 |
— | ||
|
83111
|
83111
83112-2A250
Mechanism, Speedometer
[08.1978 - 08.1980] MX32..LG..CBR U.S.A. SPEC. |
83112-2A250 |
— | ||
|
83111
|
83111
83112-2A260
Mechanism, Speedometer
[08.1978 - 08.1980] MX32..LG..CBR CANADA SPEC. |
83112-2A260 |
— | ||
|
83128
|
83128
83128-22480
Knob, Trip Counter
[08.1977 - 08.1980] MX32..LG..CBR |
83128-22480 |
— | ||
|
83132
|
83132
83132-2A170
Case, Combination Meter
[08.1978 - 08.1979] MX32..LG |
83132-2A170 |
— | ||
| replacement | |||||
|
83132
|
83132
83132-2A340
Case, Combination Meter
[08.1978 - 08.1979] MX32..LG |
83132-2A340 |
— | ||
|
83134
|
83134
83134-2A170
Cover, Combination Meter, No.1
[08.1978 - 08.1980] MX32..LG..CBR |
83134-2A170 |
— | ||
|
83135
|
83135
83135-22480
Pointer, Speedometer
[08.1977 - 08.1980] MX32..LG..CBR |
83135-22480 |
— | ||
|
83145
|
83145
83145-2A040
Lens, Meter, No.1
[08.1978 - 08.1980] MX32..LG..CBR |
83145-2A040 |
— | ||
|
83145A
|
83145A
83145-2A150
Lens, Meter, No.2
[08.1978 - 08.1980] MX32..LG..CBR |
83145-2A150 |
— | ||
|
83145B
|
83145B
83145-2A030
Lens, Meter, No.3
[08.1978 - 08.1980] MX32..LG..CBR |
83145-2A030 |
— | ||
|
83145D
|
83145D
83145-22040
Lens, Meter, No.5
[08.1978 - 08.1980] MX32..LG..CBR |
83145-22040 |
— | ||
|
83145F
|
83145F
83145-22030
Lens, Meter, No.7
[08.1978 - 08.1980] MX32..LG..CBR |
83145-22030 |
— | ||
|
83270
|
83270
83242-22100
Tachometer Assy, Engine
[08.1978 - 08.1979] MX32..LG |
83242-22100 |
— | ||
|
83310
|
83310
83243-22110 Gage Assy, Fuel ReceiverFUEL RECEIVER [08.1978 - 08.1980] MX32..LG..CBR |
83243-22110 |
US $60.86 |
||
|
83410
|
83410
83244-22030
Gage Assy, Water Temperature Receiver
[08.1978 - 08.1979] MX32..LG |
83244-22030 |
— | ||
|
83910
|
83910
83910-22091
Clock Assy
[08.1978 - 08.1980] MX32..LG..CBR DIGITAL TYPE |
83910-22091 |
— | ||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9354014014
|
9354014014
93540-14014 Screw |
93540-14014 |
from US $1.27 |
||
|
9354055016
|
9354055016
93540-55016 SCREW |
93540-55016 |
US $1.12 |
||
|
9356614514
|
9356614514
93566-14514
New Genuine Part
|
93566-14514 |
— | ||
| replacement | |||||
|
9356614514
|
9356614514
93568-54514 New Genuine Part |
93568-54514 |
US $1.76 |
||
|
9356654516
|
9356654516
93566-54516
SCREW TAPPING
|
93566-54516 |
— | ||
| replacements | |||||
|
9356654516
|
9356654516
93568-54516 SCREW TAPPING |
93568-54516 |
US $1.76 |
||
|
9356654516
|
9356654516
93568-54156
screw tapping
|
93568-54156 |
— | ||
