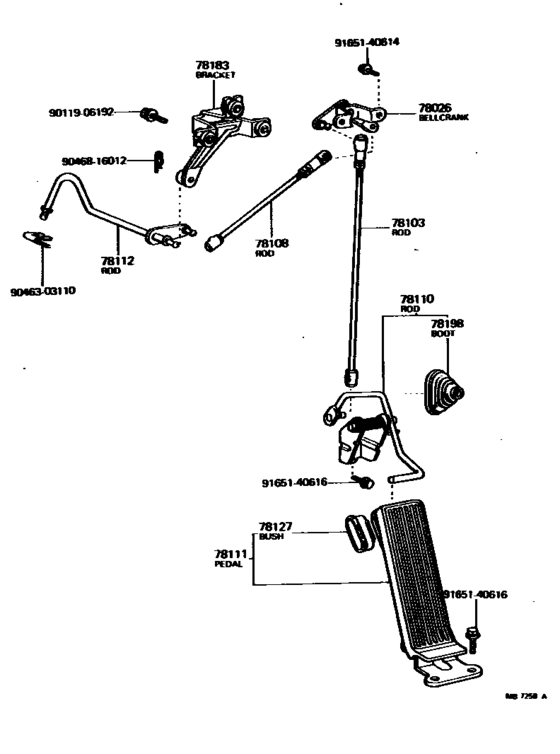

Accelerator Link ([08.1977 - 08.1979] (7708-7908)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1977 - 1979
- Sales region
- U.S.A.
- Frame
- MX32
- grade
- L
- body
- SED
- ENGINE
- 4M
- Model
- CRESSIDA
- From
- 08.1977
- To
- 08.1979
- Vehicle Model
- Cressida
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
9011906192
|
9011906192
90119-06192 BOLT |
90119-06192 |
US $1.44 |
||
|
9046303110
|
9046303110
90463-03110
Clamp (For Accelerator Torque Rod)
|
90463-03110 |
— | ||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
US $4.48 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.76 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.48 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
