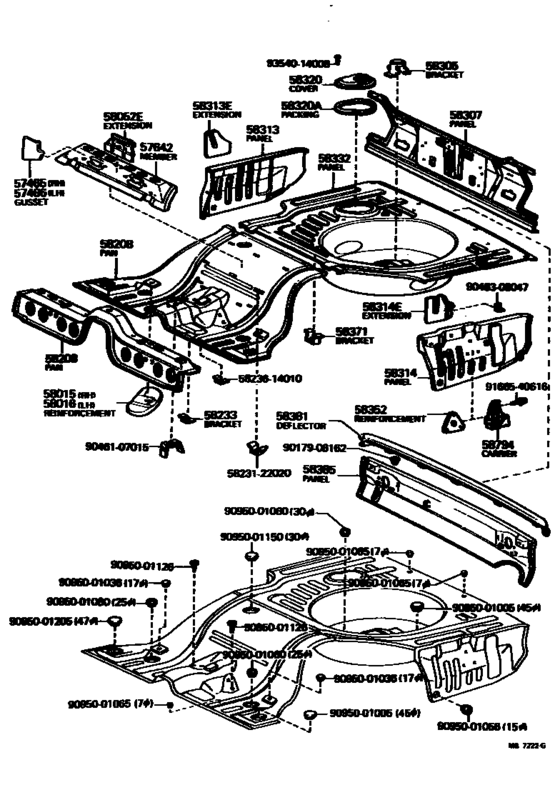

Floor Pan & Lower Back Panel ([08.1977 - 08.1980] (7708-8008)MX32) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1977 - 1979
- Sales region
- U.S.A.
- Frame
- MX32
- grade
- L
- body
- SED
- ENGINE
- 4M
- Model
- CRESSIDA
- From
- 08.1977
- To
- 08.1979
- Vehicle Model
- Cressida
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58233
|
58233
58233-22010
Bracket, Exhaust Pipe Mounting
[08.1977 - 08.1978] MX3# |
58233-22010 |
— | ||
|
58307
|
58307
58307-22100
Panel Sub-Assy, Body Lower Back
[08.1977 - 08.1978] MX32 |
58307-22100 |
— | ||
|
58314
|
58314
58314-22040
Panel, Rear Floor Side, Lh
[08.1977 - 08.1978] MX32 |
58314-22040 |
— | ||
|
58332
|
58332
58311-22070 Panel, Rear Floor, RearREAR FLOOR, REAR [08.1977 - 08.1978] MX32 |
58311-22070 |
US $489.22 |
||
| replacements | |||||
|
58332
|
58332
58311-22090
Pan, Rear Floor
[08.1977 - 08.1978] MX32 |
58311-22090 |
— | ||
|
58332
|
58332
90480-20363
New Genuine Part
[08.1977 - 08.1978] MX32 |
90480-20363 |
— | ||
|
58332
|
58332
90950-01038 Plug, Hole(For Instrument Lower Panel)[08.1977 - 08.1978] MX32 |
90950-01038 |
US $4.32 |
||
|
58371
|
58371
58369-22030
Bracket, Fuel Pump Support
[08.1977 - 03.1978] MX32 |
58369-22030 |
— | ||
|
5823122020
|
5823122020
58231-22020 Bracket, Mounting, Floor, No.5 |
58231-22020 |
US $3.20 |
||
|
5823614010
|
5823614010
58236-14010 Bracket, Mounting, Floor, No.1 |
58236-14010 |
US $9.17 |
||
|
9017906162
|
9017906162
90179-06162
New Genuine Part
|
90179-06162 |
— | ||
| replacement | |||||
|
9017906162
|
9017906162
90179-06308 NUT |
90179-06308 |
US $1.28 |
||
|
9046107015
|
9046107015
90461-07015 Bracket, Center Floor Heat Insulator |
90461-07015 |
US $7.86 |
||
|
9046308047
|
9046308047
90463-08047
New Genuine Part
|
90463-08047 |
— | ||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $3.68 |
||
|
9095001036
|
9095001036
90950-01036 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01036 |
US $4.22 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001065
|
9095001065
90950-01065 Plug, Hole(For Front Fender Apron) |
90950-01065 |
US $4.48 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $5.76 |
||
|
9095001150
|
9095001150
90950-01150
Cover, Front Floor Hole
|
90950-01150 |
— | ||
| replacement | |||||
|
9095001150
|
9095001150
90950-01882 Cover, Hole |
90950-01882 |
from US $2.24 |
||
|
9095001205
|
9095001205
90950-01205 Plug, Hole(For Floor Panel) |
90950-01205 |
US $3.49 |
||
|
9166540616
|
9166540616
91665-40616 Screw(For Steering Column Tube) |
91665-40616 |
US $1.12 |
||
| replacement | |||||
|
9166540616
|
9166540616
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
|
9354014008
|
9354014008
93540-14008 New Genuine Part |
93540-14008 |
US $1.44 |
||
