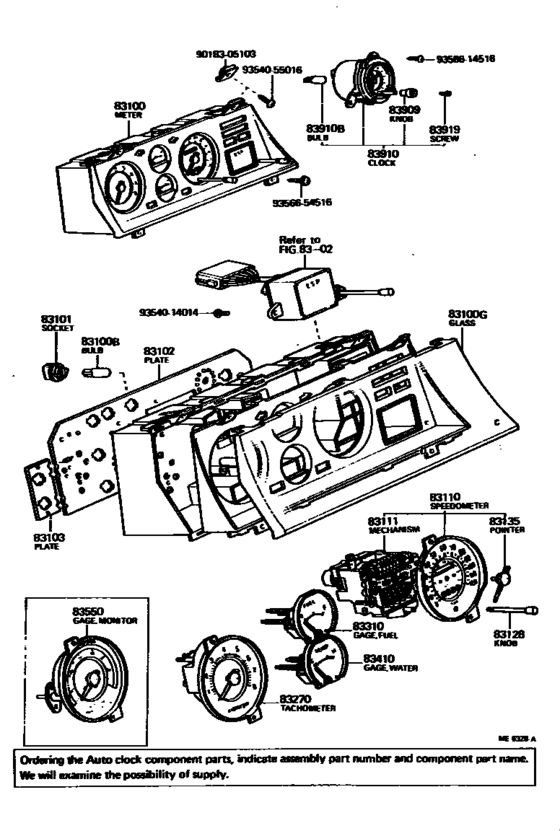

Meter ([08.1977 - 08.1978] (7708-7808)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1977 - 1979
- Sales region
- U.S.A.
- Frame
- MX32
- grade
- L
- body
- SED
- ENGINE
- 4M
- Model
- CRESSIDA
- From
- 08.1977
- To
- 08.1979
- Vehicle Model
- Cressida
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83100-22630
Meter Assy, Combination
[08.1977 - 08.1978] MX3# U.S.A. SPEC.W/ED MONITOR |
83100-22630 |
— | ||
|
83100
|
83100
83100-22640
Meter Assy, Combination
[08.1977 - 08.1978] MX3# U.S.A. SPEC.W/TA CHOMETER |
83100-22640 |
— | ||
|
83100
|
83100
83100-22650
Meter Assy, Combination
[08.1977 - 08.1978] MX3# CANADA SPEC.W/ED MONITOR |
83100-22650 |
— | ||
|
83100
|
83100
83100-22660
Meter Assy, Combination
[08.1977 - 08.1978] MX3# CANADA SPEC.W/TA CHOMETER |
83100-22660 |
— | ||
|
83102
|
83102
83247-22030 Plate Sub-Assy, Combination Meter Circuit, No.1COMBINATION METER CIRCUIT, NO.1 [08.1977 - 08.1978] MX3# |
83247-22030 |
US $59.84 |
||
| replacement | |||||
|
83102
|
83102
83247-22110
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1977 - 08.1978] MX3# |
83247-22110 |
— | ||
|
83110
|
83110
83241-22030
Speedometer Assy
[08.1977 - 08.1978] MX3# U.S.A. SPEC. |
83241-22030 |
— | ||
|
83110
|
83110
83241-22050
Speedometer Assy
[08.1977 - 08.1978] MX3# CANADA SPEC. |
83241-22050 |
— | ||
|
83111
|
83111
83112-22550
Mechanism, Speedometer
[08.1977 - 08.1978] MX3# CANADA SPEC. |
83112-22550 |
— | ||
|
83111
|
83111
83112-22630
Mechanism, Speedometer
[08.1977 - 08.1978] MX3# U.S.A. SPEC. |
83112-22630 |
— | ||
|
83270
|
83270
83242-22020
Tachometer Assy, Engine
[08.1977 - 08.1978] MX3# |
83242-22020 |
— | ||
|
83310
|
83310
83243-22020
Gage Assy, Fuel Receiver
[08.1977 - 08.1978] MX3# |
83243-22020 |
— | ||
|
83410
|
83410
83244-22010
Gage Assy, Water Temperature Receiver
[08.1977 - 08.1978] MX3# |
83244-22010 |
— | ||
|
83550
|
83550
83558-22010
Gage Assy, Ed Monitor
[08.1977 - 08.1978] MX3# |
83558-22010 |
— | ||
|
83909
|
83909
83909-14012
Knob, Clock
[08.1977 - 08.1978] MX3# |
83909-14012 |
— | ||
|
83910
|
83910
83910-22061
Clock Assy
[08.1977 - 08.1978] MX3# |
83910-22061 |
— | ||
|
83910B
|
83910B
99132-11034 Bulb, Position Indicator Lamp[08.1977 - 08.1978] MX3# 12V 3.4W |
99132-11034 |
US $0.82 |
||
|
83919
|
83919
83919-14012
Screw, Thermometer
[08.1977 - 08.1978] MX3# |
83919-14012 |
— | ||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9354014014
|
9354014014
93540-14014 Screw |
93540-14014 |
from US $1.27 |
||
|
9354055016
|
9354055016
93540-55016 SCREW |
93540-55016 |
US $1.12 |
||
|
9356614516
|
9356614516
93566-14516 New Genuine Part |
93566-14516 |
US $1.75 |
||
| replacement | |||||
|
9356614516
|
9356614516
93568-54516 SCREW TAPPING |
93568-54516 |
US $1.76 |
||
|
9356654516
|
9356654516
93566-54516
SCREW TAPPING
|
93566-54516 |
— | ||
| replacements | |||||
|
9356654516
|
9356654516
93568-54516 SCREW TAPPING |
93568-54516 |
US $1.76 |
||
|
9356654516
|
9356654516
93568-54156
screw tapping
|
93568-54156 |
— | ||
