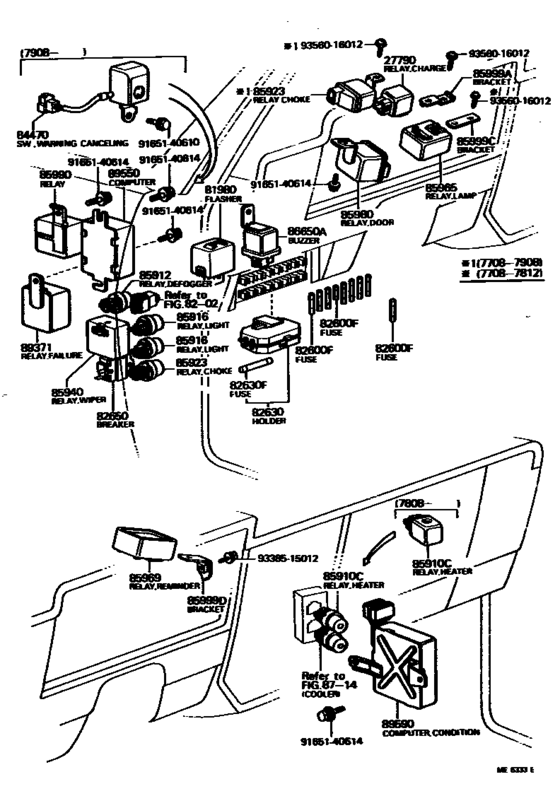

Switch & Relay & Computer ([08.1977 - 08.1980] (7708-8008)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1977 - 1979
- Sales region
- U.S.A.
- Frame
- MX32
- grade
- L
- body
- SED
- ENGINE
- 4M
- Model
- CRESSIDA
- From
- 08.1977
- To
- 08.1979
- Vehicle Model
- Cressida
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27790
|
27790
27790-45021 Relay Assy, Charge LampCHARGE LAMP [08.1977 - 08.1978] 4M..MX3# |
27790-45021 |
US $123.76 |
||
|
82600F
|
82600F
90982-07008
Fuse, Fuse Block
[08.1977 - 12.1977] MX3# 5A |
90982-07008 |
— | ||
| replacement | |||||
|
82600F
|
82600F
99118-62005 Fuse, Fuse Block[08.1977 - 12.1977] MX3# 5A |
99118-62005 |
US $0.79 |
||
|
85910C
|
85910C
90987-02001 Relay Assy (For Heater Blower Motor)[08.1977 - 08.1978] MX3# DENSO |
90987-02001 |
US $40.48 |
||
| replacement | |||||
|
85910C
|
85910C
90999-99089 Relay Assy (For Heater Blower Motor)[08.1977 - 08.1978] MX3# DENSO |
90999-99089 |
US $26.05 |
||
|
85910C
|
85910C
90987-02002
Relay, Ignition, No.1
[08.1977 - 08.1978] MX3# MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85910C
|
85910C
90987-02004 Relay Assy, Starter[08.1977 - 08.1978] MX3# MARUKO |
90987-02004 |
from US $28.70 |
||
|
85923
|
85923
90987-02001 Relay Assy (For Heater Blower Motor)[08.1977 - 08.1978] MX3# |
90987-02001 |
US $40.48 |
||
| replacement | |||||
|
85923
|
85923
90999-99089 Relay Assy (For Heater Blower Motor)[08.1977 - 08.1978] MX3# |
90999-99089 |
US $26.05 |
||
|
85940
|
85940
85940-22051 Relay Assy, Windshield Wiper[08.1977 - 08.1978] MX3# |
85940-22051 |
US $152.88 |
||
| replacement | |||||
|
85940
|
85940
85940-95J00 Relay Assy, Windshield Wiper[08.1977 - 08.1978] MX3# |
85940-95J00 |
US $151.42 |
||
|
89371
|
89371
89371-22040 Relay, Lamp Failure IndicatorLAMP FAILURE INDICATOR [08.1977 - 08.1978] MX3# |
89371-22040 |
US $231.50 |
||
|
89590
|
89590
89590-22050 Computer Assy, Condition Indicator[08.1977 - 08.1978] MX3# |
89590-22050 |
US $425.15 |
||
| replacement | |||||
|
89590
|
89590
89590-22051
Computer Assy, Condition Indicator
[08.1977 - 08.1978] MX3# |
89590-22051 |
— | ||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9338515012
|
9338515012
93385-15012 SCREW |
93385-15012 |
US $2.56 |
||
|
9356016012
|
9356016012
93560-16012 New Genuine Part |
93560-16012 |
US $1.16 |
||
