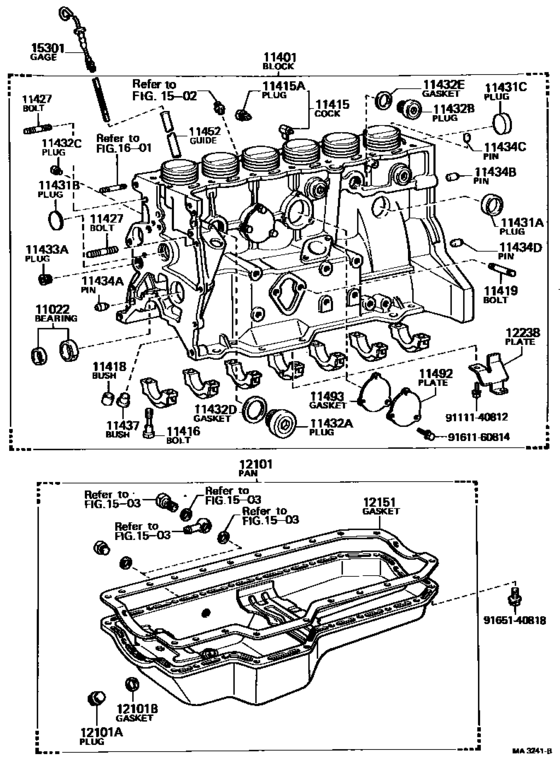

Cylinder Block ([12.1976 - 08.1980] (7612-8008)4M) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1977 - 1980
- Sales region
- Europe
- Frame
- MX32
- grade
- SDX
- body
- SED
- ENGINE
- 4M
- TRANSMISSION
- ATM
- Model
- CRESSIDA
- From
- 07.1977
- To
- 01.1980
- Gear Shift Type
- 3FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Destination
- SA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11022
|
11022
11022-41010
Bearing Set, Pump Drive Shaft
[12.1976 - 08.1980] 4M..MX3# |
11022-41010 |
— | ||
|
11401
|
11401
11401-49178
Block Sub-Assy, Cylinder
[12.1976 - 09.1978] 4M..MX3# |
11401-49178 |
— | ||
| replacements | |||||
|
11401
|
11401
90179-10132 Nut[12.1976 - 09.1978] 4M..MX3# |
90179-10132 |
from US $0.98 |
||
|
11401
|
11401
11071-43010-01
Bearing, Crankshaft
[12.1976 - 09.1978] 4M..MX3# |
11071-43010-01 |
— | ||
|
11401
|
11401
11071-43010-02
Bearing, Crankshaft
[12.1976 - 09.1978] 4M..MX3# |
11071-43010-02 |
— | ||
|
11401
|
11401
11071-43010-03
Bearing, Crankshaft
[12.1976 - 09.1978] 4M..MX3# |
11071-43010-03 |
— | ||
|
11401
|
11401
11071-43010-04
Bearing, Crankshaft
[12.1976 - 09.1978] 4M..MX3# |
11071-43010-04 |
— | ||
|
11401
|
11401
11071-43010-05
Bearing, Crankshaft
[12.1976 - 09.1978] 4M..MX3# |
11071-43010-05 |
— | ||
|
11401
|
11401
11401-49475
Block Sub-assy, Cylinder
[12.1976 - 09.1978] 4M..MX3# |
11401-49475 |
— | ||
|
11401
|
11401
11401-49179 Block Sub-Assy, CylinderCYLINDER [09.1978 - 08.1979] 4M..MX3# |
11401-49179 |
US $4,120.48 |
||
| replacements | |||||
|
11401
|
11401
90179-10132 Nut[09.1978 - 08.1979] 4M..MX3# |
90179-10132 |
from US $0.98 |
||
|
11401
|
11401
11071-43010-01
Bearing, Crankshaft
[09.1978 - 08.1979] 4M..MX3# |
11071-43010-01 |
— | ||
|
11401
|
11401
11071-43010-02
Bearing, Crankshaft
[09.1978 - 08.1979] 4M..MX3# |
11071-43010-02 |
— | ||
|
11401
|
11401
11071-43010-03
Bearing, Crankshaft
[09.1978 - 08.1979] 4M..MX3# |
11071-43010-03 |
— | ||
|
11401
|
11401
11071-43010-04
Bearing, Crankshaft
[09.1978 - 08.1979] 4M..MX3# |
11071-43010-04 |
— | ||
|
11401
|
11401
11071-43010-05
Bearing, Crankshaft
[09.1978 - 08.1979] 4M..MX3# |
11071-43010-05 |
— | ||
|
11401
|
11401
11401-49267 Block Sub-assy, Cylinder[09.1978 - 08.1979] 4M..MX3# |
11401-49267 |
US $3,712.80 |
||
|
11401
|
11401
11401-49265 Block Sub-Assy, CylinderCYLINDER [08.1979 - 08.1980] 4M..MX3# |
11401-49265 |
US $3,785.60 |
||
| replacements | |||||
|
11401
|
11401
11071-43010-01
Bearing, Crankshaft
[08.1979 - 08.1980] 4M..MX3# |
11071-43010-01 |
— | ||
|
11401
|
11401
90179-10132 Nut[08.1979 - 08.1980] 4M..MX3# |
90179-10132 |
from US $0.98 |
||
|
11401
|
11401
11071-43010-02
Bearing, Crankshaft
[08.1979 - 08.1980] 4M..MX3# |
11071-43010-02 |
— | ||
|
11401
|
11401
11071-43010-03
Bearing, Crankshaft
[08.1979 - 08.1980] 4M..MX3# |
11071-43010-03 |
— | ||
|
11401
|
11401
11071-43010-04
Bearing, Crankshaft
[08.1979 - 08.1980] 4M..MX3# |
11071-43010-04 |
— | ||
|
11401
|
11401
11071-43010-05
Bearing, Crankshaft
[08.1979 - 08.1980] 4M..MX3# |
11071-43010-05 |
— | ||
|
11401
|
11401
11401-49267 Block Sub-assy, Cylinder[08.1979 - 08.1980] 4M..MX3# |
11401-49267 |
US $3,712.80 |
||
|
11415
|
11415
90910-09070
Cock Sub-Assy, Water Drain(For Cylinder Block)
[03.1979 - 08.1980] 4M..MX3# |
90910-09070 |
— | ||
| replacement | |||||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[03.1979 - 08.1980] 4M..MX3# |
96431-53828 |
US $9.96 |
||
|
11415
|
11415
96431-03833
Cock Sub-Assy, Water Drain(For Cylinder Block)
[12.1976 - 03.1979] 4M..MX3# |
96431-03833 |
— | ||
| replacement | |||||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[12.1976 - 03.1979] 4M..MX3# |
96431-53828 |
US $9.96 |
||
|
11415A
|
11415A
90910-09072
Plug, Water Drain Cock(For Cylinder Block)
[03.1979 - 08.1980] 4M..MX3# |
90910-09072 |
— | ||
| replacement | |||||
|
11415A
|
11415A
96432-23814
Plug, Water Drain Cock(For Cylinder Block)
[03.1979 - 08.1980] 4M..MX3# |
96432-23814 |
— | ||
|
11415A
|
11415A
96431-23814 Plug, Water Drain Cock(For Cylinder Block)[12.1976 - 03.1979] 4M..MX3# |
96431-23814 |
from US $7.29 |
||
|
11416
|
11416
90910-02047
Bolt(For Crankshaft Bearing Cap Set)
[12.1976 - 08.1980] 4M..MX3# |
90910-02047 |
— | ||
|
11418
|
11418
90999-70056 Bush, Solid(For Distributor)[12.1976 - 08.1980] 4M..MX3# |
90999-70056 |
US $13.25 |
||
|
11419
|
11419
90116-08110 Bolt, Stud(For Fuel Pump)STUD(FOR MANIFOLD TO CARBURETOR) [12.1976 - 03.1977] 4M..MX3# L=43,S=10&10 |
90116-08110 |
US $2.77 |
||
|
11419
|
11419
90116-08185 Bolt, Stud(For Fuel Pump)[03.1977 - 08.1980] 4M..MX3# L=39,S=25&9 |
90116-08185 |
US $3.35 |
||
|
11427
|
11427
90116-08121 Bolt, Stud(For Timing Chain Cover Set)STUD(FOR TIMING CHAIN COVER SET) [12.1976 - 08.1980] 4M..MX3# L=65,S=12&12 |
90116-08121 |
US $2.91 |
||
|
11427
|
11427
90116-10010 Bolt, Stud(For Timing Chain Cover Set)[12.1976 - 08.1980] 4M..MX3# L=80,S=12&26 |
90116-10010 |
US $2.77 |
||
|
11431A
|
11431A
90331-40001
Plug, Tight, No.1
[12.1976 - 08.1979] 4M..MX3# OD=40 |
90331-40001 |
— | ||
| replacement | |||||
|
11431A
|
11431A
96411-44000 Plug, Tight, No.1[12.1976 - 08.1979] 4M..MX3# OD=40 |
96411-44000 |
from US $4.17 |
||
|
11431A
|
11431A
96411-44000 Plug, Tight, No.1[08.1979 - 08.1980] 4M..MX3# OD=40 |
96411-44000 |
from US $4.17 |
||
|
11431B
|
11431B
96412-43500 Plug, Tight, No.2(For Cylinder Block)[12.1976 - 08.1980] 4M..MX3# OD=35 |
96412-43500 |
US $2.62 |
||
|
11431C
|
11431C
90331-35001
Plug, Tight, No.1
[12.1976 - 08.1979] 4M..MX3# OD=35 |
90331-35001 |
— | ||
| replacement | |||||
|
11431C
|
11431C
96411-43500 Plug, Tight, No.1[12.1976 - 08.1979] 4M..MX3# OD=35 |
96411-43500 |
from US $3.88 |
||
|
11431C
|
11431C
96411-43500 Plug, Tight, No.1[08.1979 - 08.1980] 4M..MX3# OD=35 |
96411-43500 |
from US $3.88 |
||
|
11432A
|
11432A
90341-42066 Plug, W/head Taper Screw, No.1W/HEAD TAPER SCREW, NO.1 [12.1976 - 08.1980] 4M..MX3# |
90341-42066 |
US $17.62 |
||
|
11432B
|
11432B
90341-32070 Plug, W/head Taper Screw, No.1[12.1976 - 08.1980] 4M..MX3# |
90341-32070 |
US $10.66 |
||
|
11432C
|
11432C
90345-51025 Plug, W/head Taper Screw, No.2[12.1976 - 08.1980] 4M..MX3# |
90345-51025 |
US $3.36 |
||
|
11432D
|
11432D
90430-42223
Gasket, W/head Taper Screw Plug
[12.1976 - 08.1980] 4M..MX3# |
90430-42223 |
— | ||
|
11432E
|
11432E
90430-32222 Gasket(For Cylinder Head Screw Plug)[12.1976 - 08.1980] 4M..MX3# |
90430-32222 |
US $3.35 |
||
| replacement | |||||
|
11432E
|
11432E
90430-32002
Gasket(For Cylinder Head Screw Plug)
[12.1976 - 08.1980] 4M..MX3# |
90430-32002 |
— | ||
|
11433A
|
11433A
90344-53015 Plug, W/head Taper Screw, No.1[12.1976 - 08.1980] 4M..MX3# |
90344-53015 |
US $4.80 |
||
|
11434A
|
11434A
90250-10192 Pin, Straight(For Timing Gear Cover Set)[12.1976 - 08.1980] 4M..MX3# L=22,OD=10,L=22,OD=10 |
90250-10192 |
from US $1.05 |
||
|
11434B
|
11434B
90250-10192 Pin, Straight(For Timing Gear Cover Set)[12.1976 - 08.1980] 4M..MX3# L=22,OD=10,L=22,OD=10 |
90250-10192 |
from US $1.05 |
||
|
11434C
|
11434C
90250-08112
Pin, Straight(For Timing Gear Case)
[12.1976 - 08.1980] 4M..MX3# L=16,OD=8,L=16,OD=8 |
90250-08112 |
— | ||
| replacement | |||||
|
11434C
|
11434C
90250-08120 Pin, Straight, No.1[12.1976 - 08.1980] 4M..MX3# L=16,OD=8,L=16,OD=8 |
90250-08120 |
from US $1.07 |
||
|
11434D
|
11434D
90250-10192 Pin, Straight(For Timing Gear Cover Set)[12.1976 - 08.1980] 4M..MX3# L=22,OD=10,L=22,OD=10 |
90250-10192 |
from US $1.05 |
||
|
11437
|
11437
11437-45010
Bush, Oil Pump Shaft Guide
[12.1976 - 08.1980] 4M..MX3# |
11437-45010 |
— | ||
|
11452
|
11452
11452-41020 Guide, Oil Level Gage[12.1976 - 08.1980] 4M..MX3# |
11452-41020 |
US $14.56 |
||
|
11492
|
11492
11492-45010
Plate, Water Seal
[12.1976 - 08.1980] 4M..MX3# |
11492-45010 |
— | ||
|
11493
|
11493
11493-45010
Gasket, Water Seal Plate
[12.1976 - 08.1980] 4M..MX3# |
11493-45010 |
— | ||
|
12101
|
12101
12101-49155
Pan Sub-Assy, Oil
[12.1976 - 08.1980] 4M..MX3# |
12101-49155 |
— | ||
| replacement | |||||
|
12101
|
12101
12101-41040
Pan Sub-Assy, Oil
[12.1976 - 08.1980] 4M..MX3# |
12101-41040 |
— | ||
|
12101A
|
12101A
90341-18089
Plug(For Oil Pan Drain)
[12.1976 - 08.1980] 4M..MX3#; 18R#..RX3#; 3T..TX30 |
90341-18089 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90033-41020 Plug(For Oil Pan Drain)[12.1976 - 08.1980] 4M..MX3#; 18R#..RX3#; 3T..TX30 |
90033-41020 |
from US $2.32 |
||
|
12101B
|
12101B
90430-18244
Gasket(For Oil Pan Drain Plug)
[12.1976 - 08.1980] 4M..MX3#; 18R#..RX3#; 3T..TX30 |
90430-18244 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[12.1976 - 08.1980] 4M..MX3#; 18R#..RX3#; 3T..TX30 |
90430-18023 |
from US $1.07 |
||
|
12151
|
12151
12151-41010 Gasket, Oil Pan[12.1976 - 08.1980] 4M..MX3# |
12151-41010 |
US $20.44 |
||
|
12238
|
12238
12238-45010
Plate, Ventilation Baffle
[12.1976 - 03.1978] 4M..MX3# |
12238-45010 |
— | ||
|
15301
|
15301
15301-45010 Gage Sub-Assy, Oil Level[12.1976 - 08.1980] 4M..MX3# |
15301-45010 |
US $13.54 |
||
|
9111140812
|
9111140812
91111-40812 Bolt (for Transmission Control Cable Bracket) |
91111-40812 |
US $2.48 |
||
| replacement | |||||
|
9111140812
|
9111140812
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9165140818
|
9165140818
91651-40818 BOLT, W-WASHER |
91651-40818 |
US $1.28 |
||
