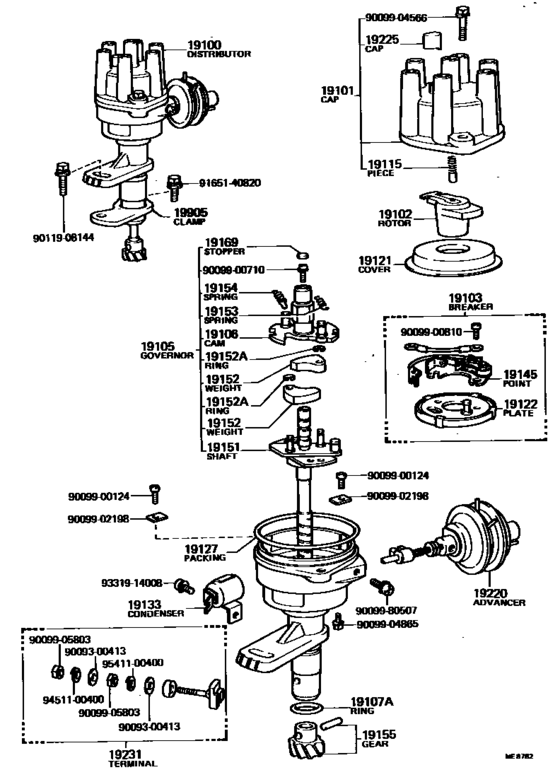

Distributor ([08.1979 - 08.1980] (7908-8008)4M) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1977 - 1980
- Sales region
- Europe
- Frame
- MX32
- grade
- SDX
- body
- SED
- ENGINE
- 4M
- TRANSMISSION
- ATM
- Model
- CRESSIDA
- From
- 07.1977
- To
- 01.1980
- Gear Shift Type
- 3FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Destination
- SA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-41120
Distributor Assy
[07.1977 - 01.1980] 4M..MX32..SA |
19100-41120 |
— | ||
|
19101
|
19101
19101-41010 Cap Sub-Assy, DistributorDISTRIBUTOR [12.1976 - 08.1979] 4M..MX3# |
19101-41010 |
from US $36.91 |
||
|
19102
|
19102
19102-41010
Rotor Sub-Assy, Distributor
[12.1976 - 08.1979] 4M..MX3# |
19102-41010 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-61030 Rotor Sub-Assy, DistributorDISTRIBUTOR [12.1976 - 08.1979] 4M..MX3# |
19102-61030 |
from US $15.97 |
||
|
19103
|
19103
19103-41030
Breaker Sub-Assy, Distributor
[12.1976 - 08.1979] 4M..MX3# |
19103-41030 |
— | ||
|
19105
|
19105
19105-41120
Governor Sub-Assy
[07.1977 - 01.1980] 4M..MX32..SA |
19105-41120 |
— | ||
|
19106
|
19106
19106-41010 Cam Sub-Assy, DistributorDISTRIBUTOR [12.1976 - 08.1979] 4M..MX3# |
19106-41010 |
US $44.99 |
||
|
19107A
|
19107A
90099-14018
Ring, O, Distributor Housing
[12.1976 - 08.1980] 4M..MX3# |
90099-14018 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14088 Ring, O, Distributor Housing[12.1976 - 08.1980] 4M..MX3# |
90099-14088 |
from US $2.71 |
||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[12.1976 - 08.1980] 4M..MX3#; 18R#..RX3#; 3T..TX30 |
19115-50010 |
— | ||
|
19121
|
19121
19121-30030
Cover, Dust Proof
[12.1976 - 08.1979] 4M..MX3# |
19121-30030 |
— | ||
|
19122
|
19122
19122-39041
Plate, Stationary, Distributor
[12.1976 - 08.1979] 4M..MX3# |
19122-39041 |
— | ||
|
19133
|
19133
90099-52057
Condenser, Distributor
[12.1976 - 08.1979] 4M..MX3# |
90099-52057 |
— | ||
|
19145
|
19145
19145-26060 Point, Distributor[12.1976 - 08.1980] 4M..MX3#; 18R#..RX3#; 3T..TX30 |
19145-26060 |
from US $13.75 |
||
|
19151
|
19151
19151-41030
Shaft, Governor
[12.1976 - 08.1979] 4M..MX3# |
19151-41030 |
— | ||
|
19152
|
19152
19152-32010
Weight, Governor
[07.1977 - 01.1980] 4M..MX32..SA |
19152-32010 |
— | ||
| replacement | |||||
|
19152
|
19152
19152-87104
Weight, Governor
[07.1977 - 01.1980] 4M..MX32..SA |
19152-87104 |
— | ||
|
19152A
|
19152A
90099-07104
Ring, Snap(For Governor Weight)
[12.1976 - 08.1979] 4M..MX3# |
90099-07104 |
— | ||
|
19152A
|
19152A
90099-07109
Ring, Snap(For Governor Weight)
[08.1979 - 08.1980] 4M..MX3# |
90099-07109 |
— | ||
|
19153
|
19153
19153-23020
Spring, Governor, A
[12.1976 - 08.1979] 4M..MX3# |
19153-23020 |
— | ||
|
19154
|
19154
19154-41120
Spring, Governor, B
[07.1977 - 01.1980] 4M..MX32..SA |
19154-41120 |
— | ||
|
19155
|
19155
19195-41010 Gear, Spiral, DistributorSPIRAL, DISTRIBUTOR [12.1976 - 08.1979] 4M..MX3# |
19195-41010 |
US $38.73 |
||
|
19169
|
19169
19169-32010
Stopper, Cam Grease
[12.1976 - 08.1980] 4M..MX3# |
19169-32010 |
— | ||
| replacement | |||||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[12.1976 - 08.1980] 4M..MX3# |
19169-63011 |
— | ||
|
19220
|
19220
19220-41120
Advancer Assy, Vacuum, Distributor
[07.1977 - 01.1980] 4M..MX32..SA |
19220-41120 |
— | ||
|
19225
|
19225
19225-41140 Cap, Rubber[08.1979 - 08.1980] 4M..MX3# |
19225-41140 |
US $2.91 |
||
|
19231
|
19231
19231-45020 Terminal, DistributorDISTRIBUTOR [12.1976 - 08.1979] 4M..MX3# |
19231-45020 |
US $2.10 |
||
|
19905
|
19905
19905-41010
Clamp Sub-Assy, Distributor
[12.1976 - 08.1979] 4M..MX3# |
19905-41010 |
— | ||
|
19905
|
19905
19955-45010 Clamp Sub-Assy, DistributorDISTRIBUTOR [08.1979 - 08.1980] 4M..MX3# |
19955-45010 |
US $55.76 |
||
|
9009300413
|
9009300413
90093-00413
New Genuine Part
|
90093-00413 |
— | ||
|
9009900124
|
9009900124
90099-00124
New Genuine Part
|
90099-00124 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900810
|
9009900810
90099-00810
SCREW
|
90099-00810 |
— | ||
|
9009902198
|
9009902198
90099-02198
Plate, Holder
|
90099-02198 |
— | ||
|
9009904566
|
9009904566
90099-04566
New Genuine Part
|
90099-04566 |
— | ||
|
9009904865
|
9009904865
90099-04865
New Genuine Part
|
90099-04865 |
— | ||
|
9009905803
|
9009905803
90099-05803
New Genuine Part
|
90099-05803 |
— | ||
|
9009980507
|
9009980507
90099-80507
New Genuine Part
|
90099-80507 |
— | ||
|
9011908144
|
9011908144
90119-08144
New Genuine Part
|
90119-08144 |
— | ||
| replacement | |||||
|
9011908144
|
9011908144
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9541100400
|
9541100400
95411-00400
New Genuine Part
|
95411-00400 |
— | ||
