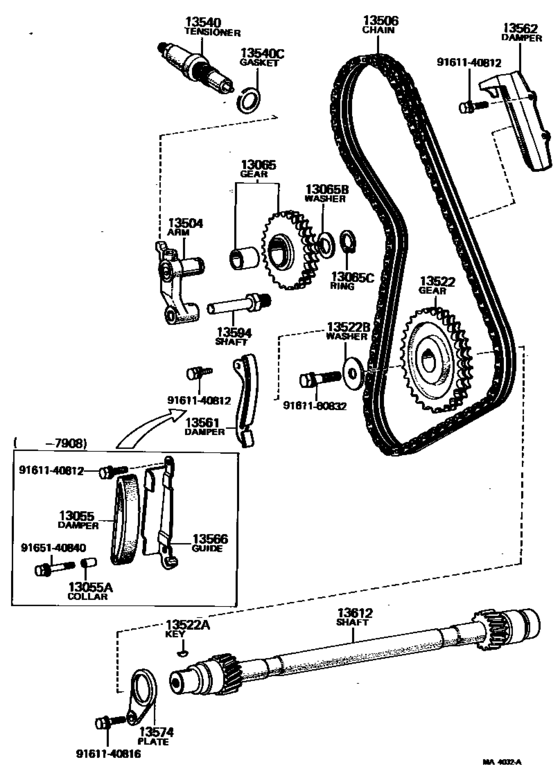

Timing Chain ([12.1976 - 08.1980] (7612-8008)4M) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1977 - 1980
- Sales region
- General
- Frame
- MX32
- grade
- SDX
- body
- SED
- ENGINE
- 4M
- TRANSMISSION
- ATM
- Model
- CRESSIDA
- From
- 07.1977
- To
- 01.1980
- Gear Shift Type
- 3FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Destination
- SA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13055
|
13055
13055-41010 Damper Sub-Assy, ChainCHAIN [12.1976 - 08.1979] 4M..MX3# |
13055-41010 |
US $36.55 |
||
|
13055A
|
13055A
90387-08031 Collar(For Chain Damper)[12.1976 - 08.1979] 4M..MX3# |
90387-08031 |
US $3.06 |
||
|
13065
|
13065
13065-45010
Gear Sub-Assy, Tension
[12.1976 - 08.1980] 4M..MX3# |
13065-45010 |
— | ||
|
13065B
|
13065B
90214-20017 Washer, Timing Chain Tension Gear Claw[12.1976 - 08.1980] 4M..MX3# |
90214-20017 |
US $2.18 |
||
|
13065C
|
13065C
96150-02000 Ring, Shaft Snap(For Tension Gear)[12.1976 - 08.1980] 4M..MX3# |
96150-02000 |
US $2.72 |
||
|
13504
|
13504
13504-45020
Arm Sub-Assy, Tension
[12.1976 - 08.1980] 4M..MX3# |
13504-45020 |
— | ||
|
13506
|
13506
13506-41010
Chain Sub-Assy
[12.1976 - 08.1980] 4M..MX3# |
13506-41010 |
— | ||
|
13522
|
13522
13522-41011
Gear, Pump Drive Shaft
[12.1976 - 08.1980] 4M..MX3# N=30 |
13522-41011 |
— | ||
|
13522A
|
13522A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[12.1976 - 08.1980] 4M..MX3# |
90280-05008 |
US $3.52 |
||
|
13522B
|
13522B
90201-08020 Washer, Plate(For Pump Drive Shaft Gear)[08.1979 - 08.1980] 4M..MX3# |
90201-08020 |
US $4.54 |
||
|
13522B
|
13522B
90201-08120
Washer, Plate(For Timing Gear)
[12.1976 - 08.1979] 4M..MX3# |
90201-08120 |
— | ||
|
13540
|
13540
13540-45010
Tensioner Assy, Chain, No.1
[12.1976 - 08.1980] 4M..MX3# |
13540-45010 |
— | ||
|
13540C
|
13540C
90430-22135
Gasket(For Chain Tensioner)
[12.1976 - 08.1980] 4M..MX3# |
90430-22135 |
— | ||
| replacement | |||||
|
13540C
|
13540C
90430-22009 Gasket (For Power Take-Off Case Plug)[12.1976 - 08.1980] 4M..MX3# |
90430-22009 |
US $2.80 |
||
|
13561
|
13561
13561-45010
Damper, Chain Vibration, No.1
[08.1979 - 08.1980] 4M..MX3# |
13561-45010 |
— | ||
|
13562
|
13562
13562-45010
Damper, Chain Vibration, No.2
[12.1976 - 08.1980] 4M..MX3# |
13562-45010 |
— | ||
|
13566
|
13566
13566-45010
Guide, Chain Damper
[12.1976 - 08.1979] 4M..MX3# |
13566-45010 |
— | ||
|
13574
|
13574
13574-41010
Plate, Pump Drive Shaft
[12.1976 - 08.1980] 4M..MX3# |
13574-41010 |
— | ||
|
13594
|
13594
13594-45010 Shaft, Tension Gear Arm[12.1976 - 08.1980] 4M..MX3# |
13594-45010 |
US $11.36 |
||
|
13612
|
13612
13612-41010
Shaft, Pump Drive
[12.1976 - 08.1980] 4M..MX3# |
13612-41010 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161160832
|
9161160832
91611-60832 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91611-60832 |
US $2.77 |
||
|
9165140840
|
9165140840
91651-40840 BOLT |
91651-40840 |
US $2.72 |
||
