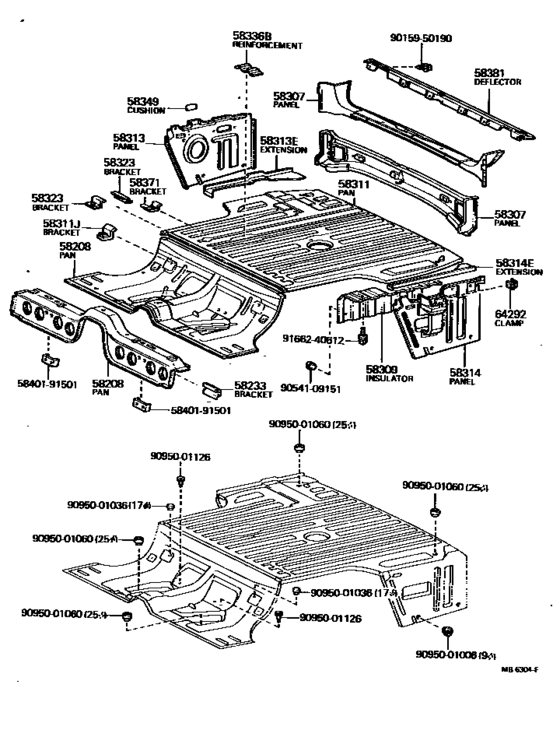

Floor Pan & Lower Back Panel ([12.1976 - 08.1980] (7612-8008)MX36,RX35) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1976 - 1980
- Sales region
- General
- Frame
- MX36
- grade
- DLX
- body
- WG
- ENGINE
- 4M
- TRANSMISSION
- ATM
- Model
- CRESSIDA
- From
- 12.1976
- To
- 08.1980
- Gear Shift Type
- 3FC
- Vehicle Model
- Cressida
- Driver's Position
- RHD
- Destination
- ARL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58208
|
58208
58211-22900
Pan, Center Floor
[12.1976 - 08.1980] MX36,RX35 FOR REAR |
58211-22900 |
— | ||
|
58208
|
58208
58212-22040
Pan, Center Floor, Front
[12.1976 - 08.1980] MX3#,RX3#,TX30 FOR FRONT |
58212-22040 |
— | ||
|
58233
|
58233
58233-22010
Bracket, Exhaust Pipe Mounting
[12.1976 - 08.1978] MX3#,RX3# |
58233-22010 |
— | ||
|
58233
|
58233
58233-22011
Bracket, Exhaust Pipe Mounting
[08.1978 - 08.1980] MX3#,RX3#,TX30 |
58233-22011 |
— | ||
|
58307
|
58307
58307-91609
Panel Sub-Assy, Body Lower Back
[12.1976 - 08.1980] MX36,RX35 FOR UPPER |
58307-91609 |
— | ||
|
58307
|
58307
58308-91600
Panel Sub-Assy, Body Lower Back
[12.1976 - 08.1980] MX36,RX35 FOR LOWER |
58308-91600 |
— | ||
|
58311
|
58311
58311-22900
Pan, Rear Floor
[12.1976 - 08.1978] MX36,RX35 |
58311-22900 |
— | ||
|
58311
|
58311
58311-91606
Pan, Rear Floor
[08.1978 - 08.1980] MX36,RX35 |
58311-91606 |
— | ||
|
58311J
|
58311J
77281-91601
Bracket, Fuel Main Tube, No.1
[08.1979 - 08.1980] MX36,RX35 |
77281-91601 |
— | ||
|
58313
|
58313
58313-91604
Panel, Rear Floor Side, Rh
[12.1976 - 08.1980] MX36,RX35 |
58313-91604 |
— | ||
|
58313E
|
58313E
58315-91603
Extension, Rear Floor Side Panel, Rh
[08.1978 - 08.1980] MX36,RX35 |
58315-91603 |
— | ||
|
58314
|
58314
58303-91604
Panel, Rear Floor Side, Lh
[12.1976 - 08.1980] MX36,RX35 |
58303-91604 |
— | ||
| replacement | |||||
|
58314
|
58314
58303-91605
Panel, Rear Floor Side, Lh
[12.1976 - 08.1980] MX36,RX35 |
58303-91605 |
— | ||
|
58314E
|
58314E
58316-91603
Extension, Rear Floor Side Panel, Lh
[08.1978 - 08.1980] MX36,RX35 |
58316-91603 |
— | ||
|
58349
|
58349
58349-91600 Cushion, Rear Floor Side[12.1976 - 08.1980] MX36,RX35 |
58349-91600 |
US $3.49 |
||
|
58371
|
58371
58369-91603
Bracket, Fuel Pump Support
[08.1979 - 08.1980] MX36,RX35 |
58369-91603 |
— | ||
|
58381
|
58381
59211-91600
Deflector, Rear Bumper Stone
[12.1976 - 08.1980] MX36,RX35 |
59211-91600 |
— | ||
|
64292
|
64292
58788-13010 Clip, Jack Handle[12.1976 - 08.1980] MX36,RX35 |
58788-13010 |
US $4.08 |
||
|
5840191501
|
5840191501
58401-91501
Bracket Sub-Assy, Rear Seat Support, No.1
|
58401-91501 |
— | ||
|
9015950190
|
9015950190
90159-50190 New Genuine Part |
90159-50190 |
US $1.75 |
||
|
9054109151
|
9054109151
90541-09151 Cushion(For Luggage Compartment Door Panel) |
90541-09151 |
from US $3.84 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
|
9095001036
|
9095001036
90950-01036 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01036 |
US $4.22 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $5.76 |
||
|
9166240612
|
9166240612
91662-40612
New Genuine Part
|
91662-40612 |
— | ||
