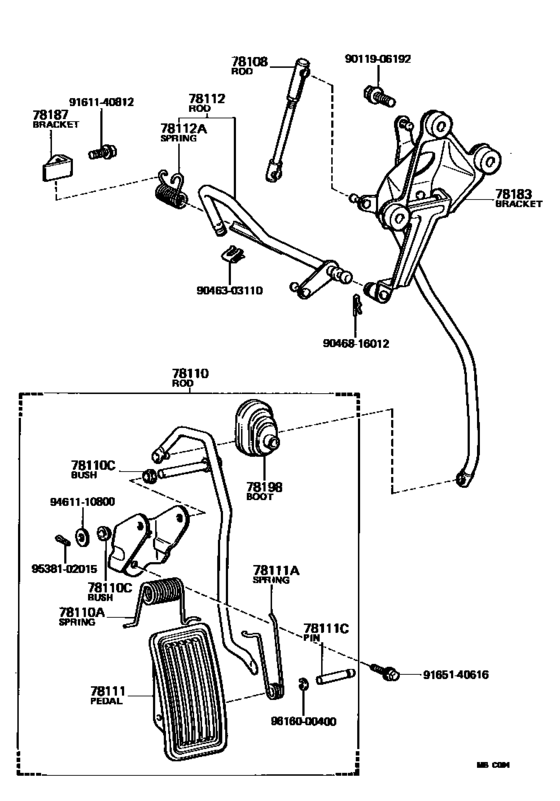

Accelerator Link ([09.1980 - 08.1982] (8009-8208)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1980 - 1982
- Sales region
- U.S.A.
- Frame
- MX62
- body
- WG
- ENGINE
- 5ME
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 09.1980
- To
- 08.1982
- Vehicle Model
- Cressida
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78108
|
78108
78105-22180 Rod Sub-Assy, Accelerator Connecting, No.4[09.1980 - 08.1982] MX62 |
78105-22180 |
US $10.92 |
||
|
78110
|
78110
78120-22110
Rod Assy, Accelerator Pedal
[09.1980 - 08.1982] MX62 |
78120-22110 |
— | ||
|
78110
|
78110
78120-22180
Rod Assy, Accelerator Pedal
[08.1982 - 07.1984] MX6# |
78120-22180 |
— | ||
|
78110A
|
78110A
90508-23018 Spring (For Accelerator Pedal Rod)[09.1980 - 08.1982] MX62 |
90508-23018 |
US $7.72 |
||
|
78110A
|
78110A
90508-23061
Spring (For Accelerator Pedal Rod)
[08.1982 - 07.1984] MX6# |
90508-23061 |
— | ||
|
78110C
|
78110C
90386-08003
Bush, Accelerator Bellcrank
[09.1980 - 07.1984] MX6# |
90386-08003 |
— | ||
|
78111
|
78111
78111-12100 Pedal, Accelerator[09.1980 - 07.1984] MX6# |
78111-12100 |
from US $18.54 |
||
|
78111A
|
78111A
90508-23003
Spring (For Accelerator Pedal)
[09.1980 - 07.1984] MX6# |
90508-23003 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[09.1980 - 07.1984] MX6# |
90249-05001 |
US $3.32 |
||
|
78112
|
78112
78106-22091
Rod Sub-Assy, Accelerator Connecting, No.4
[09.1980 - 08.1982] MX62 |
78106-22091 |
— | ||
|
78112A
|
78112A
90508-16440 Spring (For Accelerator Torque Rod)[09.1980 - 08.1982] MX62 |
90508-16440 |
US $3.35 |
||
|
78183
|
78183
78170-22090 Bracket, Accelerator Link RodACCELERATOR LINK ROD [09.1980 - 08.1982] MX62 |
78170-22090 |
US $69.74 |
||
|
78187
|
78187
78187-22030 Hook, Accelerator Torque Rod SpringACCELERATOR PULL BACK SPRING [09.1980 - 08.1982] MX62 |
78187-22030 |
US $3.49 |
||
|
78198
|
78198
78199-20030
Grommet (For Accelerator Pedal Rod)
[09.1980 - 08.1982] MX62 |
78199-20030 |
— | ||
|
9011906192
|
9011906192
90119-06192 BOLT |
90119-06192 |
US $1.44 |
||
|
9046303110
|
9046303110
90463-03110
Clamp (For Accelerator Torque Rod)
|
90463-03110 |
— | ||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
US $4.48 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
US $1.28 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.60 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
