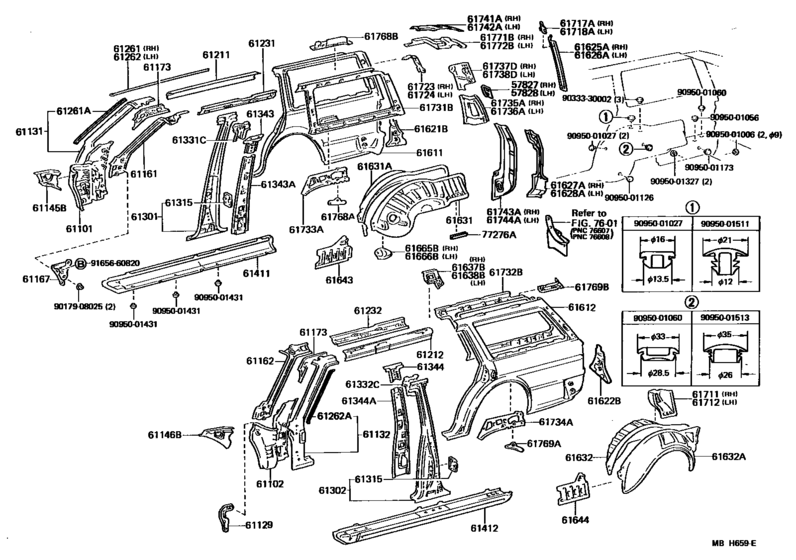

Side Member ([11.1984 - 08.1987] (8411-8708)MX72) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1987
- Sales region
- U.S.A.
- Frame
- MX72
- body
- WG
- ENGINE
- 5MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 11.1984
- To
- 08.1987
- Vehicle Model
- Cressida
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57827
|
57827
57827-23010 Reinforcement, Back Door Side Stopper, Rh[11.1984 - 08.1987] MX72 |
57827-23010 |
US $5.97 |
||
|
57828
|
57828
57828-23010 Reinforcement, Back Door Side Stopper, Lh[11.1984 - 08.1987] MX72 |
57828-23010 |
US $5.97 |
||
|
61101
|
61101
61101-22110 Panel Sub-Assy, Cowl Side, RhCOWL SIDE, RH [08.1984 - 08.1988] MX7# |
61101-22110 |
US $71.64 |
||
|
61102
|
61102
61102-22130 Panel Sub-Assy, Cowl Side, LhCOWL SIDE, LH [08.1984 - 08.1988] MX7# |
61102-22130 |
US $71.64 |
||
|
61129
|
61129
61126-22020 Reinforcement, Cowl Side Panel, LhCOWL SIDE PANEL, LH [08.1984 - 08.1988] MX7# |
61126-22020 |
US $21.69 |
||
|
61131
|
61131
61131-22905 Pillar, Front Body, Upper Outer Rh[08.1984 - 08.1988] MX7# |
61131-22905 |
US $318.86 |
||
|
61132
|
61132
61132-22905 Pillar, Front Body, Upper Outer Lh[08.1984 - 08.1988] MX7# |
61132-22905 |
US $318.86 |
||
|
61145B
|
61145B
61145-22050 Gusset, Front Body Pillar, Lower Rh[08.1984 - 08.1988] MX7# |
61145-22050 |
US $30.43 |
||
|
61146B
|
61146B
61146-22050 Gusset, Front Body Pillar, Lower Lh[08.1984 - 08.1988] MX7# |
61146-22050 |
US $30.43 |
||
|
61161
|
61161
61161-22100
Pillar, Front Body, Upper Inner Rh
[08.1984 - 08.1988] MX7#..USA |
61161-22100 |
— | ||
|
61162
|
61162
61162-22100
Pillar, Front Body, Upper Inner Lh
[08.1984 - 08.1988] MX7#..USA |
61162-22100 |
— | ||
|
61167
|
61167
61165-22070 Bracket, Instrument Panel To Cowl Side, RhINSTRUMENT PANEL TO COWL SIDE, RH [08.1984 - 08.1988] MX7# |
61165-22070 |
US $21.99 |
||
|
61173
|
61173
61173-22060 Reinforcement, Front Body Pillar, Upper InnerFRONT BODY PILLAR, UPPER INNER [08.1984 - 08.1988] MX7#..USA RH |
61173-22060 |
US $46.01 |
||
|
61173
|
61173
61174-22050 Reinforcement, Front Body Pillar, Upper InnerFRONT BODY PILLAR, UPPER INNER [08.1984 - 08.1988] MX7#..USA LH |
61174-22050 |
US $46.01 |
||
|
61211
|
61211
61211-23010 Rail, Roof Side, Outer Rh[11.1984 - 08.1987] MX72 |
61211-23010 |
US $77.17 |
||
|
61212
|
61212
61212-23010 Rail, Roof Side, Outer Lh[11.1984 - 08.1987] MX72 |
61212-23010 |
US $77.17 |
||
|
61231
|
61231
61231-23030 Rail, Roof Side, Inner RhROOF SIDE, INNER RH [11.1984 - 08.1988] MX72..USA |
61231-23030 |
US $84.45 |
||
|
61232
|
61232
61232-23030 Rail, Roof Side, Inner LhROOF SIDE, INNER LH [11.1984 - 08.1988] MX72..USA |
61232-23030 |
US $84.45 |
||
|
61261
|
61261
61261-23010 Channel, Roof Drip, Rh[11.1984 - 08.1987] MX72 |
61261-23010 |
US $52.27 |
||
|
61261A
|
61261A
61263-22020 Channel, Roof Drip Side, Front Rh[08.1984 - 08.1988] MX7# |
61263-22020 |
US $68.72 |
||
|
61262
|
61262
61262-23010 Channel, Roof Drip, Lh[11.1984 - 08.1987] MX72 |
61262-23010 |
US $52.27 |
||
|
61262A
|
61262A
61264-22030 Channel, Roof Drip Side, Front Lh[08.1984 - 08.1988] MX7# |
61264-22030 |
US $68.72 |
||
|
61301
|
61301
61301-22906 Pillar Sub-Assy, Center Body, Rh[08.1984 - 08.1988] MX7# |
61301-22906 |
US $433.89 |
||
|
61302
|
61302
61302-22906 Pillar Sub-Assy, Center Body, Outer Lh[08.1984 - 08.1988] MX7# |
61302-22906 |
US $454.27 |
||
| replacement | |||||
|
61302
|
61302
61302-22922 Pillar Sub-Assy, Center Body, Outer Lh[08.1984 - 08.1988] MX7# |
61302-22922 |
US $474.66 |
||
|
61315
|
61315
61315-22020 Retainer, Door Lock Striker Plate[08.1984 - 08.1988] MX7# |
61315-22020 |
US $18.64 |
||
|
61331C
|
61331C
61331-22020 Reinforcement, Center Pillar, Upper Outer Rh[08.1984 - 08.1988] MX7# |
61331-22020 |
US $16.16 |
||
|
61332C
|
61332C
61332-22020 Reinforcement, Center Pillar, Upper Outer Lh[08.1984 - 08.1988] MX7# |
61332-22020 |
US $16.16 |
||
|
61343
|
61343
61341-22090
Pillar, Center Body, Inner Upper Rh
[08.1984 - 08.1988] MX7#..USA |
61341-22090 |
— | ||
|
61343A
|
61343A
61343-22901 Pillar, Center Body, Inner RhCENTER BODY, INNER RH [08.1984 - 08.1988] MX7#..USA |
61343-22901 |
US $180.54 |
||
|
61344
|
61344
61342-22110
Pillar, Center Body, Inner Upper Lh
[08.1984 - 08.1988] MX7#..USA |
61342-22110 |
— | ||
|
61344A
|
61344A
61344-22901 Pillar, Center Body, Inner LhCENTER BODY, INNER LH [08.1984 - 08.1988] MX7#..USA |
61344-22901 |
US $180.54 |
||
|
61411
|
61411
61401-22030 Panel, Rocker, Outer Rh[08.1984 - 08.1988] MX7# |
61401-22030 |
US $445.54 |
||
|
61412
|
61412
61402-22030 Panel, Rocker, Outer Lh[08.1984 - 08.1988] MX7# |
61402-22030 |
US $445.54 |
||
|
61611
|
61611
61601-23902 Panel, Quarter, Rh[11.1984 - 07.1987] MX72 |
61601-23902 |
US $1,062.88 |
||
| replacements | |||||
|
61611
|
61611
61601-23908 Panel, Quarter, Rh[11.1984 - 07.1987] MX72 |
61601-23908 |
US $1,065.79 |
||
|
61611
|
61611
62905-23011 Louver, Quarter Ventilation[11.1984 - 07.1987] MX72 |
62905-23011 |
US $99.01 |
||
|
61611
|
61611
61601-23908 Panel, Quarter, Rh[07.1987 - 08.1987] MX72 |
61601-23908 |
US $1,065.79 |
||
|
61612
|
61612
61602-23902 Panel, Quarter, Lh[11.1984 - 07.1987] MX72 |
61602-23902 |
US $1,062.88 |
||
| replacements | |||||
|
61612
|
61612
61602-23907 Panel, Quarter, Lh[11.1984 - 07.1987] MX72 |
61602-23907 |
US $1,065.79 |
||
|
61612
|
61612
62906-23011 Louver, Quarter Ventilation[11.1984 - 07.1987] MX72 |
62906-23011 |
US $99.01 |
||
|
61612
|
61612
61602-23907 Panel, Quarter, Lh[07.1987 - 08.1987] MX72 |
61602-23907 |
US $1,065.79 |
||
|
61621B
|
61621B
61621-23010 Trough, Back Door Opening, Front Rh[11.1984 - 08.1987] MX72 |
61621-23010 |
US $15.58 |
||
|
61622B
|
61622B
61622-23010 Trough, Back Door Opening, Front Lh[11.1984 - 08.1987] MX72 |
61622-23010 |
US $15.58 |
||
|
61625A
|
61625A
61625-23020 Extension Sub-Assy, Quarter Panel, Rh[11.1984 - 08.1987] MX72 |
61625-23020 |
US $42.08 |
||
| replacement | |||||
|
61625A
|
61625A
61031-23030 Extension, Quarter Panel, Rear Rh[11.1984 - 08.1987] MX72 |
61031-23030 |
US $38.29 |
||
|
61626A
|
61626A
61626-23020 Extension Sub-Assy, Quarter Panel, Lh[11.1984 - 08.1987] MX72 |
61626-23020 |
US $42.08 |
||
| replacement | |||||
|
61626A
|
61626A
61032-23030 Extension, Quarter Panel, Rear Lh[11.1984 - 08.1987] MX72 |
61032-23030 |
US $38.29 |
||
|
61627A
|
61627A
61627-23020 Extension, Quarter Panel, Lower Rh[11.1984 - 08.1987] MX72 |
61627-23020 |
US $48.34 |
||
|
61628A
|
61628A
61628-23020 Extension, Quarter Panel, Lower Lh[11.1984 - 08.1987] MX72 |
61628-23020 |
US $48.34 |
||
|
61631
|
61631
61607-23010 Panel, Quarter Wheel House, Rh[11.1984 - 08.1987] MX72 |
61607-23010 |
US $276.64 |
||
| replacement | |||||
|
61631
|
61631
61607-91617 Panel, Quarter Wheel House, Inner Rh[11.1984 - 08.1987] MX72 |
61607-91617 |
US $273.73 |
||
|
61631A
|
61631A
61631-22906 Panel, Quarter Wheel House, Outer Rh[08.1984 - 08.1988] MX7# |
61631-22906 |
US $161.62 |
||
|
61632
|
61632
61608-23010 Panel, Quarter Wheel House, Lh[11.1984 - 08.1987] MX72 |
61608-23010 |
US $276.64 |
||
| replacement | |||||
|
61632
|
61632
61608-91616 Panel, Quarter Wheel House, Inner Lh[11.1984 - 08.1987] MX72 |
61608-91616 |
US $273.73 |
||
|
61632A
|
61632A
61632-22100 Panel, Quarter Wheel House, Outer Lh[08.1984 - 08.1988] MX7# |
61632-22100 |
US $161.62 |
||
|
61637B
|
61637B
61637-23010 Reinforcement, Rear Pillar, Inner Upper Rh[11.1984 - 08.1987] MX72 |
61637-23010 |
US $12.67 |
||
| replacement | |||||
|
61637B
|
61637B
61637-23020 Reinforcement, Rear Pillar, Inner Upper Rh[11.1984 - 08.1987] MX72 |
61637-23020 |
US $12.67 |
||
|
61638B
|
61638B
61638-23010 Reinforcement, Rear Pillar, Inner Upper Lh[11.1984 - 08.1987] MX72 |
61638-23010 |
US $12.67 |
||
| replacement | |||||
|
61638B
|
61638B
61638-23020 Reinforcement, Rear Pillar, Inner Upper Lh[11.1984 - 08.1987] MX72 |
61638-23020 |
US $12.67 |
||
|
61643
|
61643
61641-22030 Gusset, Quarter Wheel House, Front Rh[08.1984 - 08.1988] MX7# |
61641-22030 |
US $40.91 |
||
|
61644
|
61644
61642-22030 Gusset, Quarter Wheel House, Front Lh[08.1984 - 08.1988] MX7# |
61642-22030 |
US $40.91 |
||
|
61665B
|
61665B
61665-23010 Reinforce, Seat Belt Anchorage To Quarter Wheel House, Rh[11.1984 - 08.1987] MX72 |
61665-23010 |
US $34.94 |
||
|
61666B
|
61666B
61666-23010 Reinforce, Seat Belt Anchorage To Quarter Wheel House, Lh[11.1984 - 08.1987] MX72 |
61666-23010 |
US $34.94 |
||
|
61711
|
61711
61711-23010 Panel, Roof Side, Outer Rh[11.1984 - 08.1987] MX72 |
61711-23010 |
US $48.19 |
||
|
61712
|
61712
61712-23010 Panel, Roof Side, Outer Lh[11.1984 - 08.1987] MX72 |
61712-23010 |
US $48.19 |
||
|
61717A
|
61717A
61717-23010 Reinforcement, Quarter Panel Extension, Rh[11.1984 - 08.1987] MX72 |
61717-23010 |
US $10.19 |
||
|
61718A
|
61718A
61718-23010 Reinforcement, Quarter Panel Extension, Lh[11.1984 - 08.1987] MX72 |
61718-23010 |
US $10.19 |
||
|
61723
|
61723
61723-23010 Reinforcement, Quarter Window Opening, Rear Rh[11.1984 - 08.1987] MX72 |
61723-23010 |
US $16.02 |
||
|
61724
|
61724
61724-23010 Reinforcement, Quarter Window Opening, Rear Lh[11.1984 - 08.1987] MX72 |
61724-23010 |
US $16.02 |
||
|
61731B
|
61731B
61731-23010 Panel, Roof Side, Inner Rh[11.1984 - 08.1987] MX72 |
61731-23010 |
US $315.95 |
||
|
61732B
|
61732B
61732-23010 Panel, Roof Side, Inner Lh[11.1984 - 08.1987] MX72 |
61732-23010 |
US $315.95 |
||
|
61733A
|
61733A
61733-23010 Panel, Roof Side, Inner Front Rh[11.1984 - 08.1987] MX72 |
61733-23010 |
US $42.95 |
||
|
61734A
|
61734A
61734-23010 Panel, Roof Side, Inner Front Lh[11.1984 - 08.1987] MX72 |
61734-23010 |
US $42.95 |
||
|
61735A
|
61735A
61735-23010 Panel, Roof Side, Inner Rear Rh[11.1984 - 08.1987] MX72 |
61735-23010 |
US $41.64 |
||
|
61736A
|
61736A
61736-23010 Panel, Roof Side, Inner Rear Lh[11.1984 - 08.1987] MX72 |
61736-23010 |
US $41.64 |
||
|
61737D
|
61737D
61737-23010 Reinforcement, Roof Side, Inner Rh[11.1984 - 08.1987] MX72 |
61737-23010 |
US $38.29 |
||
|
61738D
|
61738D
61738-23010 Reinforcement, Roof Side, Inner Lh[11.1984 - 08.1987] MX72 |
61738-23010 |
US $38.29 |
||
|
61741A
|
61741A
61741-23010 Reinforcement, Back Door Opening, Upper Rh[11.1984 - 07.1987] MX72 |
61741-23010 |
US $22.42 |
||
| replacement | |||||
|
61741A
|
61741A
61741-23011 Reinforcement, Back Door Opening, Upper Rh[11.1984 - 07.1987] MX72 |
61741-23011 |
US $35.53 |
||
|
61741A
|
61741A
61741-23011 Reinforcement, Back Door Opening, Upper Rh[07.1987 - 08.1987] MX72 |
61741-23011 |
US $35.53 |
||
|
61742A
|
61742A
61742-23010 Reinforcement, Back Door Opening, Upper Lh[11.1984 - 07.1987] MX72 |
61742-23010 |
US $35.67 |
||
| replacement | |||||
|
61742A
|
61742A
61742-23011 Reinforcement, Back Door Opening, Upper Lh[11.1984 - 07.1987] MX72 |
61742-23011 |
US $35.53 |
||
|
61742A
|
61742A
61742-23011 Reinforcement, Back Door Opening, Upper Lh[07.1987 - 08.1987] MX72 |
61742-23011 |
US $35.53 |
||
|
61743A
|
61743A
61743-23010 Reinforcement, Back Door Opening Side, Rh[11.1984 - 08.1987] MX72 |
61743-23010 |
US $54.31 |
||
|
61744A
|
61744A
61744-23010 Reinforcement, Back Door Opening Side, Lh[11.1984 - 08.1987] MX72 |
61744-23010 |
US $54.31 |
||
|
61768A
|
61768A
61768-23010 Reinforcement, Seat Belt Anchor, No.2 Rh[11.1984 - 09.1986] MX72 |
61768-23010 |
US $14.12 |
||
|
61768B
|
61768B
61766-23010 Reinforcement, Belt Anchor To Roof Side, Inner Rh[11.1984 - 08.1987] MX72 |
61766-23010 |
US $65.67 |
||
| replacement | |||||
|
61768B
|
61768B
61766-23020 Reinforcement, Belt Anchor To Roof Side, Inner Rh[11.1984 - 08.1987] MX72 |
61766-23020 |
US $66.10 |
||
|
61769A
|
61769A
61769-23010 Reinforcement, Seat Belt Anchor, No.2 Lh[11.1984 - 09.1986] MX72 |
61769-23010 |
US $14.12 |
||
|
61769B
|
61769B
61767-23010 Reinforcement, Belt Anchor To Roof Side, Inner Lh[11.1984 - 08.1987] MX72 |
61767-23010 |
US $65.67 |
||
| replacement | |||||
|
61769B
|
61769B
61767-23020 Reinforcement, Belt Anchor To Roof Side, Inner Lh[11.1984 - 08.1987] MX72 |
61767-23020 |
US $66.10 |
||
|
61771B
|
61771B
61771-23010 Frame, Back Door Opening Upper Corner, Rh[11.1984 - 08.1987] MX72 |
61771-23010 |
US $19.95 |
||
|
61772B
|
61772B
61772-23010 Frame, Back Door Opening Upper Corner, Lh[11.1984 - 08.1987] MX72 |
61772-23010 |
US $19.95 |
||
|
77276A
|
77276A
77276-23010 Protector, Fuel Hose[05.1985 - 07.1986] MX72 |
77276-23010 |
US $49.65 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.12 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
US $4.16 |
||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.20 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $5.76 |
||
|
9095001173
|
9095001173
90950-01173 New Genuine Part |
90950-01173 |
US $2.18 |
||
| replacement | |||||
|
9095001173
|
9095001173
90950-01684 PLUG HOLE |
90950-01684 |
from US $2.79 |
||
|
9095001327
|
9095001327
90950-01327 Plug, Hole(For Front Fender Apron) |
90950-01327 |
US $5.76 |
||
|
9095001431
|
9095001431
90950-01431 New Genuine Part |
90950-01431 |
US $5.39 |
||
|
9095001511
|
9095001511
90950-01511 New Genuine Part |
90950-01511 |
US $3.04 |
||
|
9095001513
|
9095001513
90950-01513 Plug, Hole(For Deck Trim Rear Cover) |
90950-01513 |
US $2.48 |
||
|
9165660820
|
9165660820
91656-60820
New Genuine Part
|
91656-60820 |
— | ||
| replacement | |||||
|
9165660820
|
9165660820
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
