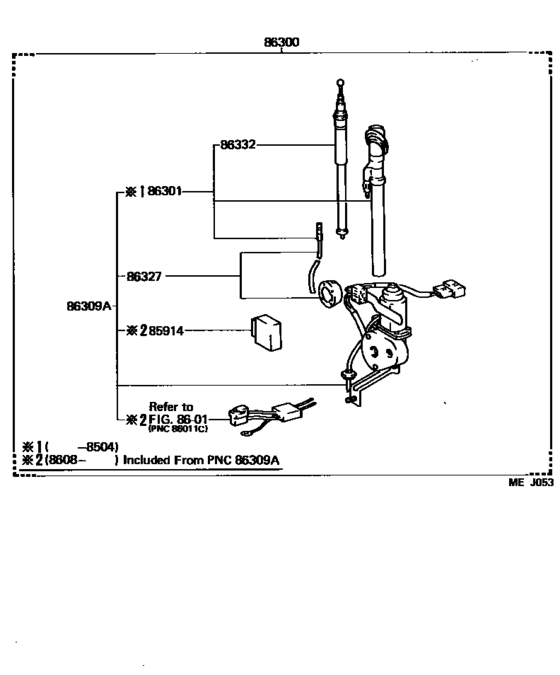

Antenna ([08.1984 - ] (8408- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1988
- Sales region
- U.S.A.
- Frame
- MX73
- body
- SED
- ENGINE
- 5MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1988
- Vehicle Model
- Cressida
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85914
|
85914
85914-14020
Relay, Motor Antenna Control
[08.1984 - 08.1988] MX7# |
85914-14020 |
— | ||
|
86300
|
86300
86300-22210
Antenna Assy, W/holder
[08.1984 - 08.1988] MX73 |
86300-22210 |
— | ||
| replacement | |||||
|
86300
|
86300
86300-22211 Antenna Assy, W/holderW/HOLDER [08.1984 - 08.1988] MX73 |
86300-22211 |
US $308.67 |
||
|
86301
|
86301
86301-22210
Pole Sub-Assy, Antenna
[08.1984 - 04.1985] MX73 |
86301-22210 |
— | ||
| replacements | |||||
|
86301
|
86301
86327-22211
Cable, W/antenna Drum
[08.1984 - 04.1985] MX73 |
86327-22211 |
— | ||
|
86301
|
86301
86336-14350
Rod, Antenna
[08.1984 - 04.1985] MX73 |
86336-14350 |
— | ||
|
86309A
|
86309A
86309-22050
Pole Sub-Assy, Motor Antenna
[08.1984 - 08.1988] MX73 |
86309-22050 |
— | ||
| replacement | |||||
|
86309A
|
86309A
86309-22051
Pole Sub-Assy, Motor Antenna
[08.1984 - 08.1988] MX73 |
86309-22051 |
— | ||
|
86327
|
86327
86327-22210
Cable, W/antenna Drum
[08.1984 - 08.1988] MX7# |
86327-22210 |
— | ||
| replacement | |||||
|
86327
|
86327
86327-22211
Cable, W/antenna Drum
[08.1984 - 08.1988] MX7# |
86327-22211 |
— | ||
|
86332
|
86332
86336-14350
Rod, Antenna
[11.1986 - 08.1988] MX73 |
86336-14350 |
— | ||
|
86332
|
86332
86336-22210
Rod, Antenna
[08.1984 - 11.1986] MX73 |
86336-22210 |
— | ||
| replacement | |||||
|
86332
|
86332
86336-14350
Rod, Antenna
[08.1984 - 11.1986] MX73 |
86336-14350 |
— | ||
