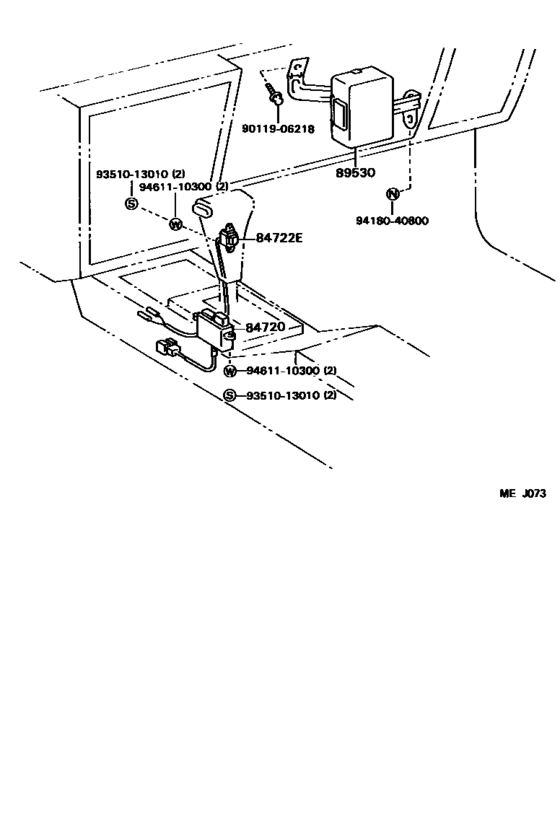

Electronic Controlled Transmission ([08.1984 - ] (8408- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1988
- Sales region
- U.S.A.
- Frame
- MX73
- body
- SED
- ENGINE
- 5MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1988
- Vehicle Model
- Cressida
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84720
|
84720
84720-22050 Switch Assy, Pattern Select[08.1984 - 08.1986] MX7#..ATM |
84720-22050 |
US $94.64 |
||
| replacement | |||||
|
84720
|
84720
84720-14051 Switch Assy, Pattern SelectPATTERN SELECT [08.1984 - 08.1986] MX7#..ATM |
84720-14051 |
US $50.96 |
||
|
84720
|
84720
84720-22051 Switch Assy, Pattern Select[08.1986 - 08.1988] MX7#..ATM |
84720-22051 |
US $94.64 |
||
| replacement | |||||
|
84720
|
84720
84720-14051 Switch Assy, Pattern SelectPATTERN SELECT [08.1986 - 08.1988] MX7#..ATM |
84720-14051 |
US $50.96 |
||
|
84722E
|
84722E
84722-14070-03
Switch, Transmission Control
[08.1984 - 08.1986] MX7#..ATM GRAY,GRAY |
84722-14070-03 |
— | ||
| replacement | |||||
|
84722E
|
84722E
84722-14070-11
Switch, Transmission Control
[08.1984 - 08.1986] MX7#..ATM GRAY,GRAY |
84722-14070-11 |
— | ||
|
84722E
|
84722E
84722-14070-07 Switch, Transmission Control[08.1984 - 08.1986] MX73..ATM..USA GREEN,GREEN |
84722-14070-07 |
US $75.71 |
||
| replacement | |||||
|
84722E
|
84722E
84722-14070-11
Switch, Transmission Control
[08.1984 - 08.1986] MX73..ATM..USA GREEN,GREEN |
84722-14070-11 |
— | ||
|
84722E
|
84722E
84722-14070-12 Switch, Transmission Control[08.1984 - 08.1986] MX7#..ATM MAROON,MAROON |
84722-14070-12 |
US $75.71 |
||
| replacement | |||||
|
84722E
|
84722E
84722-14070-11
Switch, Transmission Control
[08.1984 - 08.1986] MX7#..ATM MAROON,MAROON |
84722-14070-11 |
— | ||
|
84722E
|
84722E
84722-14070-15
Switch, Transmission Control
[08.1984 - 08.1986] MX7#..ATM BEIGE,BEIGE |
84722-14070-15 |
— | ||
| replacement | |||||
|
84722E
|
84722E
84722-14070-11
Switch, Transmission Control
[08.1984 - 08.1986] MX7#..ATM BEIGE,BEIGE |
84722-14070-11 |
— | ||
|
84722E
|
84722E
84722-14070-23 Switch, Transmission Control[08.1986 - 08.1988] MX73..ATM..USA GRAY,MEDIUM GRAY |
84722-14070-23 |
US $75.71 |
||
| replacement | |||||
|
84722E
|
84722E
84722-14070-11
Switch, Transmission Control
[08.1986 - 08.1988] MX73..ATM..USA GRAY,MEDIUM GRAY |
84722-14070-11 |
— | ||
|
84722E
|
84722E
84722-14070-25 Switch, Transmission Control[08.1986 - 08.1988] MX7#..ATM BEIGE,DARK BEIGE |
84722-14070-25 |
US $75.71 |
||
| replacement | |||||
|
84722E
|
84722E
84722-14070-11
Switch, Transmission Control
[08.1986 - 08.1988] MX7#..ATM BEIGE,DARK BEIGE |
84722-14070-11 |
— | ||
|
84722E
|
84722E
84722-14070-32 Switch, Transmission Control[08.1986 - 08.1988] MX7#..ATM MAROON,MAROON |
84722-14070-32 |
US $75.71 |
||
| replacement | |||||
|
84722E
|
84722E
84722-14070-11
Switch, Transmission Control
[08.1986 - 08.1988] MX7#..ATM MAROON,MAROON |
84722-14070-11 |
— | ||
|
84722E
|
84722E
84722-14070-34 Switch, Transmission Control[08.1986 - 08.1988] MX7#..ATM BLUE,DARK BLUE |
84722-14070-34 |
US $75.71 |
||
| replacement | |||||
|
84722E
|
84722E
84722-14070-11
Switch, Transmission Control
[08.1986 - 08.1988] MX7#..ATM BLUE,DARK BLUE |
84722-14070-11 |
— | ||
|
89530
|
89530
89530-22280
Computer Assy, Transmission Control
[08.1984 - 08.1986] MX7#..ATM..USA |
89530-22280 |
— | ||
|
89530
|
89530
89530-22360 Computer Assy, Transmission Control[04.1987 - 08.1988] MX7#..ATM..USA |
89530-22360 |
US $767.31 |
||
|
89530
|
89530
89530-22370 Computer Assy, Transmission Control[08.1986 - 04.1987] MX7#..ATM..USA |
89530-22370 |
US $767.31 |
||
| replacement | |||||
|
89530
|
89530
89530-22360 Computer Assy, Transmission Control[08.1986 - 04.1987] MX7#..ATM..USA |
89530-22360 |
US $767.31 |
||
|
9011906218
|
9011906218
90119-06218 New Genuine Part |
90119-06218 |
US $1.60 |
||
|
9351013010
|
9351013010
93510-13010 Bolt Or Pin (For Shift Lever Knob Setting) |
93510-13010 |
US $1.76 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
US $2.40 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
