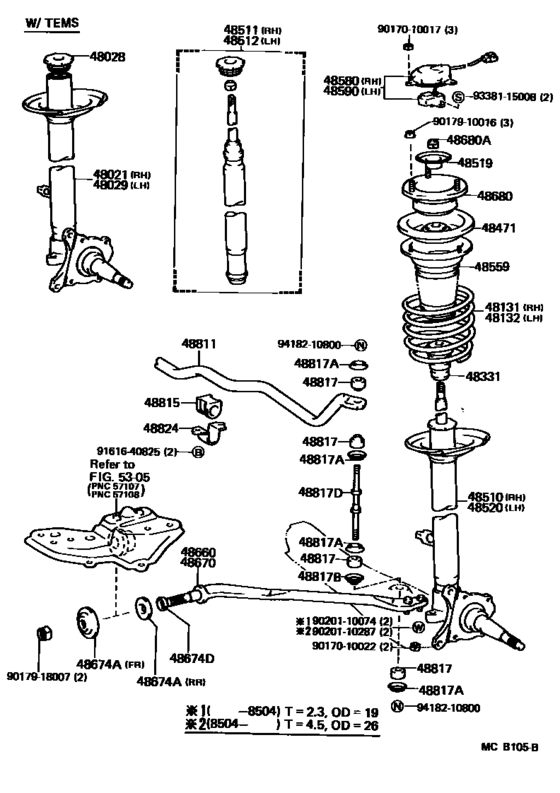

Front Spring & Shock Absorber ([08.1985 - ] (8408-8708)MTM ; (8508- )MX73..ATM..USA) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1988
- Sales region
- U.S.A.
- Frame
- MX73
- body
- SED
- ENGINE
- 5MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1988
- Vehicle Model
- Cressida
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48021
|
48021
48021-22070
Shell Sub-Assy, W/steering Knuckle, Rh
[08.1984 - 08.1988] MX7#..ATM |
48021-22070 |
— | ||
|
48021
|
48021
48021-22090
Shell Sub-Assy, W/steering Knuckle, Rh
[08.1985 - 08.1988] MX73..ATM..USA W/TEMS |
48021-22090 |
— | ||
|
48028
|
48028
48028-24030 Nut Sub-Assy, Shock Absorber Ring[08.1985 - 08.1988] MX73..ATM..USA KAYABA,W/TEMS |
48028-24030 |
US $28.83 |
||
| replacement | |||||
|
48028
|
48028
48028-24031 Nut Sub-Assy, Shock Absorber Ring[08.1985 - 08.1988] MX73..ATM..USA KAYABA,W/TEMS |
48028-24031 |
US $28.83 |
||
|
48029
|
48029
48029-22070
Shell Sub-Assy, W/steering Knuckle, Lh
[08.1984 - 08.1988] MX7#..ATM |
48029-22070 |
— | ||
|
48029
|
48029
48029-22090
Shell Sub-Assy, W/steering Knuckle, Lh
[08.1985 - 08.1988] MX73..ATM..USA W/TEMS |
48029-22090 |
— | ||
|
48131
|
48131
48131-2A260
Spring, Front Coil, Rh
[08.1984 - 08.1988] MX73 |
48131-2A260 |
— | ||
|
48132
|
48132
48131-2A270 Spring, Front Coil, LhFRONT COIL, RH [08.1984 - 08.1988] MX73 |
48131-2A270 |
US $145.60 |
||
|
48331
|
48331
48331-14020 Bumper, Front Spring, No.1[08.1984 - 08.1988] MX7#..ATM |
48331-14020 |
US $16 |
||
|
48331
|
48331
48331-24010 Bumper, Front Spring, No.1[08.1985 - 08.1988] MX73..ATM..USA W/TEMS |
48331-24010 |
US $47.47 |
||
|
48471
|
48471
48044-24010
Seat, Front Spring, Upper
[08.1984 - 08.1988] MX7#..ATM |
48044-24010 |
— | ||
|
48471
|
48471
48044-24020 Seat, Front Spring, Upper[08.1985 - 08.1988] MX73..ATM..USA W/TEMS |
48044-24020 |
US $60.28 |
||
|
48510
|
48510
48510-22210 Absorber Assy, Shock, Front Rh[08.1984 - 08.1988] MX73..ATM |
48510-22210 |
US $465.92 |
||
| replacement | |||||
|
48510
|
48510
48510-22211
Absorber Assy, Shock, Front Rh
[08.1984 - 08.1988] MX73..ATM |
48510-22211 |
— | ||
|
48510
|
48510
48510-22280 Absorber Assy, Shock, Front Rh[08.1985 - 08.1988] MX73..ATM..USA W/TEMS |
48510-22280 |
US $655.20 |
||
| replacement | |||||
|
48510
|
48510
48510-22281 Absorber Assy, Shock, Front Rh[08.1985 - 08.1988] MX73..ATM..USA W/TEMS |
48510-22281 |
US $653.74 |
||
|
48511
|
48511
48511-29235
Absorber, Shock Front, Rh(For Cartridge Type)
[08.1985 - 08.1988] MX73..ATM..USA W/TEMS |
48511-29235 |
— | ||
|
48511
|
48511
48511-29265
Absorber, Shock Front, Rh(For Cartridge Type)
[08.1984 - 08.1988] MX73..ATM |
48511-29265 |
— | ||
|
48512
|
48512
48511-29235
Absorber, Shock Front, Rh(For Cartridge Type)
[08.1985 - 08.1988] MX73..ATM..USA W/TEMS |
48511-29235 |
— | ||
|
48512
|
48512
48511-29265
Absorber, Shock Front, Rh(For Cartridge Type)
[08.1984 - 08.1988] MX73..ATM |
48511-29265 |
— | ||
|
48519
|
48519
48519-24010 Bracket, Actuator Support, Front[08.1985 - 08.1988] MX73..ATM..USA W/TEMS |
48519-24010 |
US $35.53 |
||
|
48520
|
48520
48520-22210 Absorber Assy, Shock, Front Lh[08.1984 - 08.1988] MX73..ATM |
48520-22210 |
US $465.92 |
||
| replacement | |||||
|
48520
|
48520
48520-22211
Absorber Assy, Shock, Front Lh
[08.1984 - 08.1988] MX73..ATM |
48520-22211 |
— | ||
|
48520
|
48520
48520-22280 Absorber Assy, Shock, Front Lh[08.1985 - 08.1988] MX73..ATM..USA W/TEMS |
48520-22280 |
US $655.20 |
||
| replacement | |||||
|
48520
|
48520
48520-22281 Absorber Assy, Shock, Front Lh[08.1985 - 08.1988] MX73..ATM..USA W/TEMS |
48520-22281 |
US $653.74 |
||
|
48559
|
48559
48559-24010 Cover, Shock Absorber, Dust[08.1985 - 08.1988] MX73..ATM..USA W/TEMS |
48559-24010 |
US $94.64 |
||
|
48580
|
48580
48580-22020 Cap Assy, Shock Absorber, W/actuator, RhSHOCK ABSORBER, W/ACTUATOR, RH [08.1985 - 08.1988] MX73..ATM..USA W/TEMS |
48580-22020 |
US $256.26 |
||
|
48590
|
48590
48580-22020 Cap Assy, Shock Absorber, W/actuator, RhSHOCK ABSORBER, W/ACTUATOR, RH [08.1985 - 08.1988] MX73..ATM..USA W/TEMS |
48580-22020 |
US $256.26 |
||
|
48660
|
48660
48660-22060 Bar Assy, Strut, Rh[08.1984 - 04.1985] MX7# |
48660-22060 |
US $63.04 |
||
| replacement | |||||
|
48660
|
48660
48660-22070
Bar Assy, Strut, Rh
[08.1984 - 04.1985] MX7# |
48660-22070 |
— | ||
|
48660
|
48660
48660-22070
Bar Assy, Strut, Rh
[04.1985 - 08.1988] MX7# |
48660-22070 |
— | ||
|
48670
|
48670
48670-22060 Bar Assy, Strut, Lh[08.1984 - 04.1985] MX7# |
48670-22060 |
US $63.04 |
||
| replacement | |||||
|
48670
|
48670
48670-22070
Bar Assy, Strut, Lh
[08.1984 - 04.1985] MX7# |
48670-22070 |
— | ||
|
48670
|
48670
48670-22070
Bar Assy, Strut, Lh
[04.1985 - 08.1988] MX7# |
48670-22070 |
— | ||
|
48674A
|
48674A
90948-02079 Retainer, Cushion(For Strut Bar Cushion)[08.1984 - 08.1988] MX7# T=3.8(FR) |
90948-02079 |
US $63.30 |
||
|
48674A
|
48674A
90948-02080
Retainer, Cushion(For Strut Bar Cushion)
[08.1984 - 08.1988] MX7# T=3.2(RR) |
90948-02080 |
— | ||
|
48674D
|
48674D
90560-18006
Spacer(For Strut Bar Cushion)
[08.1984 - 08.1988] MX7# |
90560-18006 |
— | ||
|
48680
|
48680
48609-22070 Support Sub-Assy, Front Suspension[08.1984 - 08.1988] MX7#..ATM |
48609-22070 |
from US $72.50 |
||
|
48680
|
48680
48609-24020 Support Assy, Front Suspension[08.1985 - 08.1988] MX73..ATM..USA W/TEMS |
48609-24020 |
US $99.01 |
||
| replacement | |||||
|
48680
|
48680
48609-22080 Support Sub-Assy, Front Suspension[08.1985 - 08.1988] MX73..ATM..USA W/TEMS |
48609-22080 |
US $99.01 |
||
|
48680A
|
48680A
94182-11400 Nut(For Idler Arm Support)[08.1984 - 08.1988] MX7# |
94182-11400 |
US $4.96 |
||
|
48811
|
48811
48811-22270 Bar, Stabilizer, Front[08.1984 - 08.1988] MX7# |
48811-22270 |
US $136.86 |
||
|
48815
|
48815
48815-22070 Bush, Front Stabilizer Bar, No.1[08.1984 - 08.1988] MX7# |
48815-22070 |
US $9.90 |
||
| replacement | |||||
|
48815
|
48815
48815-22150 Bush, Front Stabilizer Bar, No.1[08.1984 - 08.1988] MX7# |
48815-22150 |
from US $9.92 |
||
|
48817
|
48817
48817-22020 Cushion, Front Stabilizer[08.1984 - 08.1988] MX7# |
48817-22020 |
from US $2.71 |
||
|
48817A
|
48817A
90948-02032 Retainer, Cushion, No.1(For Front Stabilizer Bar)[08.1984 - 08.1988] MX7# |
90948-02032 |
from US $2.28 |
||
|
48817B
|
48817B
90948-02015 Retainer, Cushion, No.1(For Front Stabilizer Bar)[08.1984 - 08.1988] MX7# |
90948-02015 |
from US $0.90 |
||
|
48817D
|
48817D
48819-24010 Bolt(For Front Stabilizer)[08.1984 - 08.1988] MX7# |
48819-24010 |
US $8.16 |
||
|
48824
|
48824
48824-22060
Bracket, Stabilizer, Front
[08.1984 - 08.1988] MX7# |
48824-22060 |
— | ||
|
9017010017
|
9017010017
90170-10017 Nut(For Clutch Pedal Stopper) |
90170-10017 |
US $1.60 |
||
|
9017010022
|
9017010022
90170-10022 Nut(For Rear Spring U Bolt) |
90170-10022 |
US $1.14 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9017918007
|
9017918007
90179-18007 NUT |
90179-18007 |
US $4.02 |
||
|
9020110074
|
9020110074
90201-10074 New Genuine Part |
90201-10074 |
US $3.49 |
||
|
9020110287
|
9020110287
90201-10287 Washer(For Front Wheel Cylinder) |
90201-10287 |
US $2.72 |
||
|
9161640825
|
9161640825
91616-40825
Bolt(For Clutch Master Cylinder Setting)
|
91616-40825 |
— | ||
| replacement | |||||
|
9161640825
|
9161640825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9338115008
|
9338115008
93381-15008 SCREWWWASHER |
93381-15008 |
US $1.44 |
||
|
9418210800
|
9418210800
94182-10800 Nut |
94182-10800 |
from US $1.40 |
||
