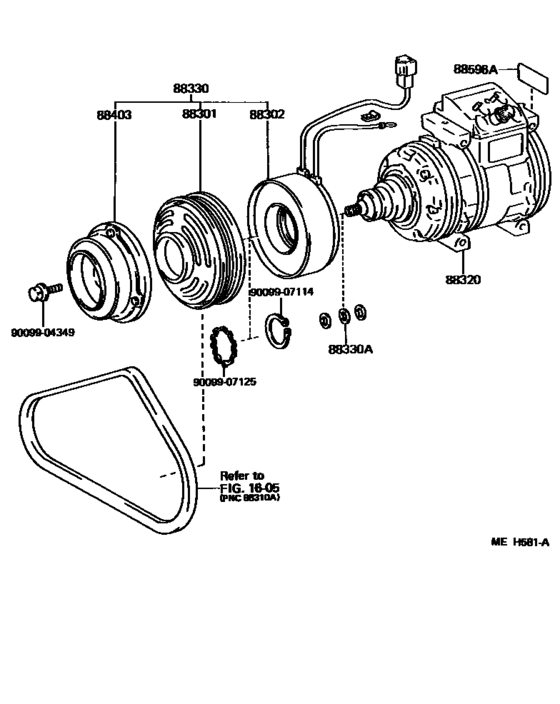

Heating & Air Conditioning - Compressor ([08.1986 - ] (8608- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1988
- Sales region
- U.S.A.
- Frame
- MX73
- body
- SED
- ENGINE
- 5MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1988
- Vehicle Model
- Cressida
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-26030
Rotor Sub-Assy, Magnet Clutch
[08.1986 - 08.1988] MX7# |
88412-26030 |
— | ||
|
88301
|
88301
88412-30290
Rotor Sub-Assy, Magnet Clutch
[08.1985 - 08.1986] MX7# |
88412-30290 |
— | ||
|
88302
|
88302
88411-16020
Stator Sub-Assy, Magnet Clutch
[08.1986 - 08.1988] MX7# |
88411-16020 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-60030
Stator Sub-Assy, Magnet Clutch
[08.1986 - 08.1988] MX7# |
88411-60030 |
— | ||
|
88302
|
88302
88411-22120
Stator Sub-Assy, Magnet Clutch
[08.1985 - 08.1986] MX7# |
88411-22120 |
— | ||
|
88320
|
88320
88320-14521
Compressor Assy, Cooler
[08.1986 - 08.1988] MX7# |
88320-14521 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-22H91 Compressor Assy, Cooler[08.1986 - 08.1988] MX7# |
88320-22H91 |
from US $993.21 |
||
|
88320
|
88320
88320-22300
Compressor Assy, Cooler
[08.1984 - 08.1985] MX7# |
88320-22300 |
— | ||
|
88320
|
88320
88320-22430
Compressor Assy, Cooler
[08.1985 - 08.1986] MX7# |
88320-22430 |
— | ||
|
88330
|
88330
88410-22120 Clutch Assy, Magnet[08.1984 - 08.1985] MX7# |
88410-22120 |
US $502.32 |
||
|
88330
|
88330
88410-22140 Clutch Assy, MagnetMAGNET [08.1985 - 08.1986] MX7# |
88410-22140 |
US $499.41 |
||
|
88330
|
88330
88410-22190 Clutch Assy, MagnetMAGNET [08.1986 - 08.1988] MX7# |
88410-22190 |
US $502.32 |
||
|
88330A
|
88330A
88335-12050 Washer (For Magnet Clutch)[08.1985 - 08.1986] MX7# |
88335-12050 |
from US $0.70 |
||
|
88330A
|
88330A
88335-14020 Washer[08.1986 - 08.1988] MX7# |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-16010
Hub Sub-Assy, Magnet Clutch
[08.1986 - 08.1988] MX7# |
88403-16010 |
— | ||
| replacement | |||||
|
88403
|
88403
88403-16011 Hub Sub-Assy, Magnet Clutch[08.1986 - 08.1988] MX7# |
88403-16011 |
US $82.47 |
||
|
88403
|
88403
88403-30280
Hub Sub-Assy, Magnet Clutch
[08.1985 - 08.1986] MX7# |
88403-30280 |
— | ||
|
88596A
|
88596A
88536-12010
Plate, Caution
[08.1986 - 08.1988] MX7# |
88536-12010 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
from US $1.11 |
||
