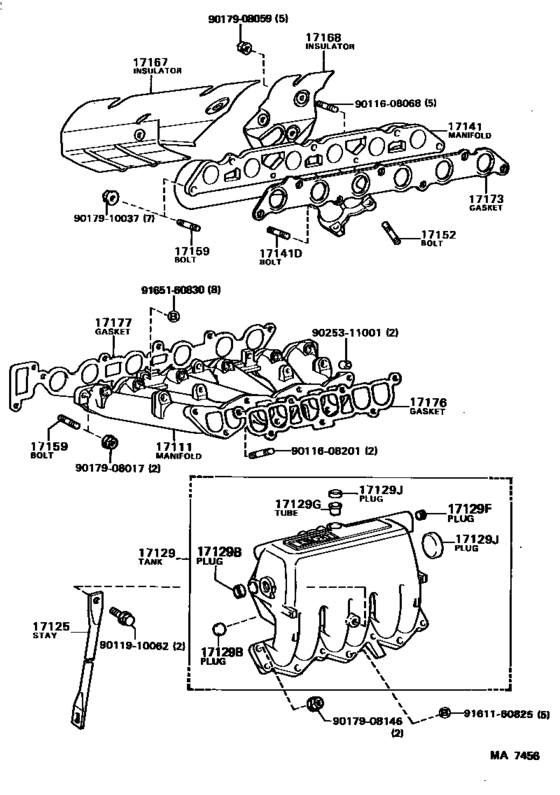

Manifold ([08.1984 - ] (8408- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1988
- Sales region
- U.S.A.
- Frame
- MX73
- body
- SED
- ENGINE
- 5MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1988
- Vehicle Model
- Cressida
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-43020
Manifold, Intake
[08.1984 - 08.1988] 5MGE..MX7# |
17111-43020 |
— | ||
|
17125
|
17125
17125-43011 Stay, Surge Tank, No.1[08.1984 - 08.1988] 5MGE..MX7# |
17125-43011 |
US $28.83 |
||
|
17129
|
17129
17109-43050 Tank, Intake Air SurgeINTAKE AIR SURGE [08.1984 - 08.1988] 5MGE..MX7# |
17109-43050 |
US $1,450.18 |
||
|
17129B
|
17129B
96411-11600 Plug[08.1984 - 08.1988] 5MGE..MX7# OD=16 |
96411-11600 |
US $4.16 |
||
|
17129F
|
17129F
90344-53008 Plug, W/head Taper Screw, No.2[08.1984 - 08.1988] 5MGE..MX7# |
90344-53008 |
US $1.76 |
||
|
17129G
|
17129G
25619-43010 Tube, Egr Inlet[08.1984 - 08.1988] 5MGE..MX7# |
25619-43010 |
US $9.90 |
||
|
17129J
|
17129J
96411-11800 Plug, Tight, No.3(For Cylinder Block)[08.1984 - 12.1986] 5MGE..MX7# OD=18 |
96411-11800 |
US $1.05 |
||
| replacement | |||||
|
17129J
|
17129J
96411-41800 Plug, Tight, No.1[08.1984 - 12.1986] 5MGE..MX7# OD=18 |
96411-41800 |
from US $1.72 |
||
|
17129J
|
17129J
96411-13000
Plug, Tight, No.1(For Cylinder Block)
[08.1984 - 12.1986] 5MGE..MX7# OD=30 |
96411-13000 |
— | ||
| replacement | |||||
|
17129J
|
17129J
96411-43000 Plug, Tight, No.1[08.1984 - 12.1986] 5MGE..MX7# OD=30 |
96411-43000 |
from US $3.74 |
||
|
17129J
|
17129J
96411-41800 Plug, Tight, No.1[12.1986 - 08.1988] 5MGE..MX7# OD=18,OD=18 |
96411-41800 |
from US $1.72 |
||
|
17129J
|
17129J
96411-43000 Plug, Tight, No.1[12.1986 - 08.1988] 5MGE..MX7# OD=30,OD=30 |
96411-43000 |
from US $3.74 |
||
|
17141
|
17141
17141-43010
Manifold, Exhaust
[08.1984 - 08.1988] 5MGE..MX7# |
17141-43010 |
— | ||
|
17141D
|
17141D
90116-08128 Bolt, Stud(For Manifold Stay)[08.1984 - 08.1988] 5MGE..MX7# |
90116-08128 |
US $4.16 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[08.1984 - 08.1988] 5MGE..MX7# |
90116-10058 |
from US $2.44 |
||
|
17159
|
17159
90116-08201
Bolt, Stud(For Head To Camshaft Bearing Cap)
[08.1984 - 08.1988] 5MGE..MX7# INTAKE MANIFOLD |
90116-08201 |
— | ||
|
17159
|
17159
90116-10025 Bolt, Stud(For Manifold To Cylinder Head)[08.1984 - 08.1988] 5MGE..MX7# EXHAUST MANIFOLD |
90116-10025 |
from US $1.70 |
||
|
17167
|
17167
17167-43010
Insulator, Exhaust Manifold Heat, No.1
[08.1984 - 01.1986] 5MGE..MX7# |
17167-43010 |
— | ||
| replacement | |||||
|
17167
|
17167
17167-43011 Insulator, Exhaust Manifold Heat, No.1[08.1984 - 01.1986] 5MGE..MX7# |
17167-43011 |
US $40.48 |
||
|
17167
|
17167
17167-43011 Insulator, Exhaust Manifold Heat, No.1[01.1986 - 08.1988] 5MGE..MX7# |
17167-43011 |
US $40.48 |
||
|
17168
|
17168
17168-43010
Insulator, Exhaust Manifold Heat, No.2
[08.1984 - 08.1988] 5MGE..MX7# |
17168-43010 |
— | ||
|
17173
|
17173
17173-43020
Gasket, Exhaust Manifold To Head
[08.1984 - 08.1988] 5MGE..MX7# |
17173-43020 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-43040 Gasket, Exhaust Manifold To Head[08.1984 - 08.1988] 5MGE..MX7# |
17173-43040 |
US $28.65 |
||
|
17176
|
17176
17176-43020
Gasket, Air Surge Tank To Intake Manifold
[08.1984 - 08.1988] 5MGE..MX7# |
17176-43020 |
— | ||
| replacement | |||||
|
17176
|
17176
17176-43050
Gasket, Air Surge Tank To Intake Manifold
[08.1984 - 08.1988] 5MGE..MX7# |
17176-43050 |
— | ||
|
17177
|
17177
17177-43010
Gasket, Intake Manifold To Head, No.1
[08.1984 - 08.1988] 5MGE..MX7# |
17177-43010 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-43040
Gasket, Intake Manifold To Head, No.1
[08.1984 - 08.1988] 5MGE..MX7# |
17177-43040 |
— | ||
|
9011608068
|
9011608068
90116-08068 Bolt, Stud |
90116-08068 |
US $4.48 |
||
|
9011608201
|
9011608201
90116-08201
Bolt, Stud(For Head To Camshaft Bearing Cap)
|
90116-08201 |
— | ||
|
9011910062
|
9011910062
90119-10062
New Genuine Part
|
90119-10062 |
— | ||
| replacement | |||||
|
9011910062
|
9011910062
90119-10640 New Genuine Part |
90119-10640 |
US $4 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.80 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9017910037
|
9017910037
90179-10037 NUT |
90179-10037 |
from US $2.42 |
||
| replacement | |||||
|
9017910037
|
9017910037
90179-10128 NUT |
90179-10128 |
from US $1.54 |
||
|
9025311001
|
9025311001
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11001 |
US $1.92 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.93 |
||
|
9165160830
|
9165160830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
from US $1.44 |
||
