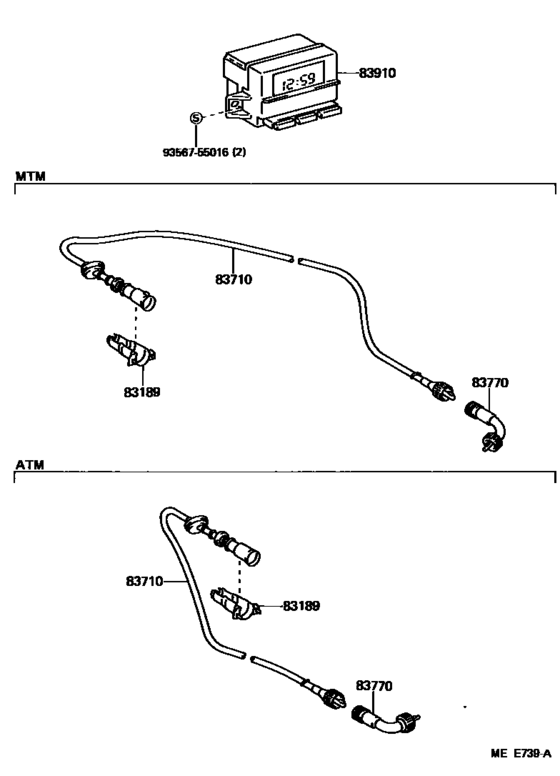

Meter ([08.1984 - ] (8408- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1988
- Sales region
- U.S.A.
- Frame
- MX73
- body
- SED
- ENGINE
- 5MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1988
- Vehicle Model
- Cressida
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83189
|
83189
83189-20020 Bracket, Meter[08.1984 - 08.1988] MX7# |
83189-20020 |
US $15.50 |
||
|
83710
|
83710
83710-22800
Cable Assy, Speedometer Drive, No.1
[08.1984 - 08.1988] MX7#..ATM |
83710-22800 |
— | ||
|
83770
|
83770
83770-22100 Adapter Assy, Speedometer Cable[08.1984 - 08.1988] MX7# |
83770-22100 |
US $98.96 |
||
|
83910
|
83910
83910-22280 Clock Assy[08.1984 - 08.1986] MX7# |
83910-22280 |
US $410.59 |
||
|
83910
|
83910
83910-22340 Clock Assy[08.1986 - 08.1988] MX7# |
83910-22340 |
US $409.14 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
