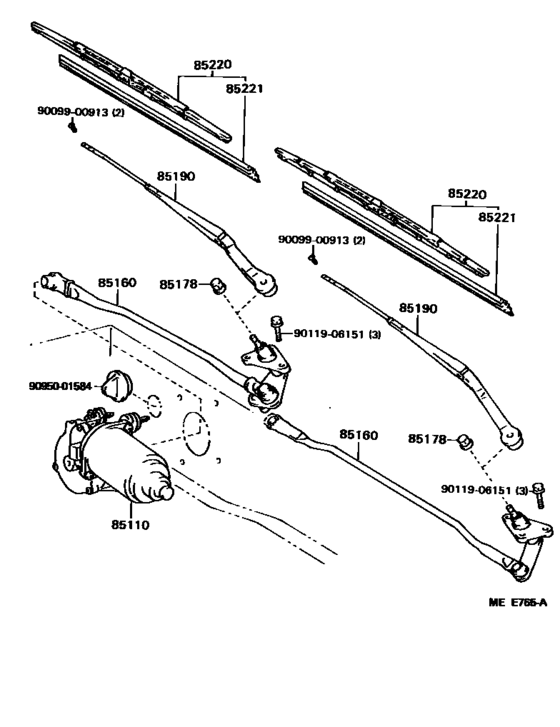

Windshield Wiper ([08.1984 - ] (8408- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1988
- Sales region
- U.S.A.
- Frame
- MX73
- body
- SED
- ENGINE
- 5MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1988
- Vehicle Model
- Cressida
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-22310
Motor Assy, Windshield Wiper
[08.1984 - 08.1986] MX7# |
85110-22310 |
— | ||
| replacement | |||||
|
85110
|
85110
85110-32242
Motor Assy, Windshield Wiper
[08.1984 - 08.1986] MX7# |
85110-32242 |
— | ||
|
85110
|
85110
85110-22380
Motor Assy, Windshield Wiper
[08.1986 - 03.1988] MX7# |
85110-22380 |
— | ||
| replacement | |||||
|
85110
|
85110
85110-32242
Motor Assy, Windshield Wiper
[08.1986 - 03.1988] MX7# |
85110-32242 |
— | ||
|
85110
|
85110
85110-22381 Motor Assy, Windshield Wiper[03.1988 - 08.1988] MX73 |
85110-22381 |
US $409.14 |
||
| replacement | |||||
|
85110
|
85110
85110-32242
Motor Assy, Windshield Wiper
[03.1988 - 08.1988] MX73 |
85110-32242 |
— | ||
|
85160
|
85160
85160-22270
Link Assy, Windshield Wiper
[08.1984 - 08.1986] MX7# RH |
85160-22270 |
— | ||
| replacement | |||||
|
85160
|
85160
85160-22271
Link Assy, Windshield Wiper
[08.1984 - 08.1986] MX7# RH |
85160-22271 |
— | ||
|
85160
|
85160
85160-22271
Link Assy, Windshield Wiper
[08.1986 - 08.1988] MX7# RH |
85160-22271 |
— | ||
|
85160
|
85160
85160-22280 Link Assy, Windshield WiperWINDSHIELD WIPER [08.1984 - 08.1986] MX7# LH |
85160-22280 |
US $154.34 |
||
| replacement | |||||
|
85160
|
85160
85160-22390 Link Assy, Windshield Wiper[08.1984 - 08.1986] MX7# LH |
85160-22390 |
US $154.34 |
||
|
85160
|
85160
85160-22390 Link Assy, Windshield Wiper[08.1986 - 08.1988] MX7# LH |
85160-22390 |
US $154.34 |
||
|
85178
|
85178
90176-08029 Nut (For Front Wiper Arm Setting)[08.1984 - 06.1985] MX7# |
90176-08029 |
US $8.80 |
||
|
85178
|
85178
90176-08033 Nut (For Front Wiper Arm Setting)[06.1985 - 08.1988] MX7# |
90176-08033 |
from US $1.60 |
||
|
85190
|
85190
85190-22530
Arm Assy, Windshield Wiper
[08.1984 - 08.1986] MX7# LH |
85190-22530 |
— | ||
| replacement | |||||
|
85190
|
85190
85190-22531
Arm Assy, Windshield Wiper
[08.1984 - 08.1986] MX7# LH |
85190-22531 |
— | ||
|
85190
|
85190
85190-22531
Arm Assy, Windshield Wiper
[08.1986 - 08.1988] MX7# LH |
85190-22531 |
— | ||
|
85190
|
85190
85210-22190
Arm Assy, Windshield Wiper
[08.1984 - 08.1986] MX7# RH |
85210-22190 |
— | ||
| replacement | |||||
|
85190
|
85190
85210-22191
Arm Assy, Windshield Wiper
[08.1984 - 08.1986] MX7# RH |
85210-22191 |
— | ||
|
85190
|
85190
85210-22191
Arm Assy, Windshield Wiper
[08.1986 - 08.1988] MX7# RH |
85210-22191 |
— | ||
|
85220
|
85220
85220-16340
Blade Assy, Windshield Wiper
[08.1984 - 08.1988] MX7# RH |
85220-16340 |
— | ||
| replacement | |||||
|
85220
|
85220
85220-16640 Blade Assy, Windshield WiperWINDSHIELD WIPER [08.1984 - 08.1988] MX7# RH |
85220-16640 |
from US $33.77 |
||
|
85220
|
85220
85220-32280
Blade Assy, Windshield Wiper
[08.1984 - 08.1988] MX7# LH |
85220-32280 |
— | ||
| replacement | |||||
|
85220
|
85220
85222-23050
Blade Assy, Windshield Wiper
[08.1984 - 08.1988] MX7# LH |
85222-23050 |
— | ||
|
85221
|
85221
85221-30100
Blade, Windshield Wiper
[08.1984 - 08.1988] MX7# RH |
85221-30100 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[08.1984 - 08.1988] MX7# RH |
85214-24H90 |
from US $12.59 |
||
|
85221
|
85221
85221-32060
Blade, Windshield Wiper
[08.1984 - 08.1988] MX7# LH |
85221-32060 |
— | ||
| replacement | |||||
|
85221
|
85221
85214-24H90 Blade, Rear Wiper[08.1984 - 08.1988] MX7# LH |
85214-24H90 |
from US $12.59 |
||
|
9009900913
|
9009900913
90099-00913 SCREW |
90099-00913 |
from US $2.48 |
||
|
9011906151
|
9011906151
90119-06151 New Genuine Part |
90119-06151 |
US $3.20 |
||
|
9095001584
|
9095001584
90950-01584 New Genuine Part |
90950-01584 |
US $3.49 |
||
