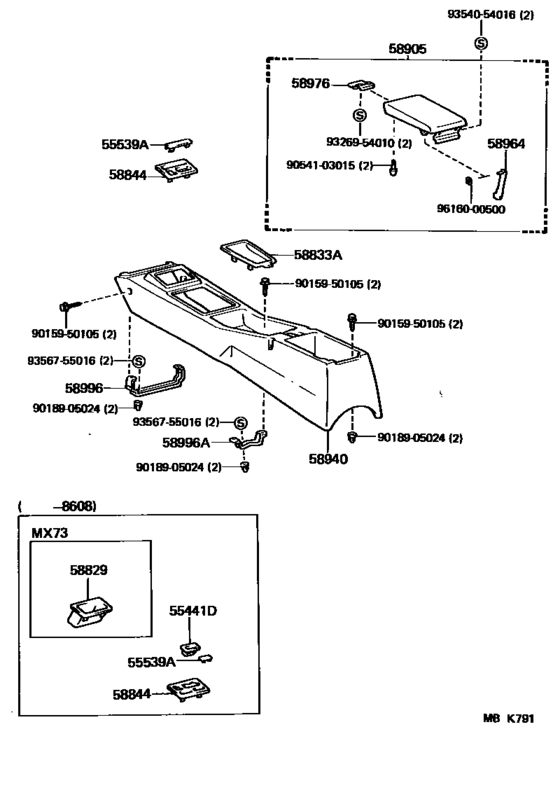

Console Box & Bracket ([08.1984 - ] (8408- )CND) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1984 - 1988
- Sales region
- U.S.A.
- Frame
- MX73
- body
- SED
- ENGINE
- 5MGE
- TRANSMISSION
- ATM
- DESTINATION
- CND
- Model
- CRESSIDA
- From
- 08.1984
- To
- 08.1988
- Vehicle Model
- Cressida
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55539A
|
55539A
55539-22040 Cover, Spare Switch HoleSPARE SWITCH HOLE [08.1986 - 08.1988] MX7# W/O *PSE |
55539-22040 |
US $11.50 |
||
|
58829
|
58829
58825-22010-02 Pocket, Console BoxCONSOLE BOX [08.1984 - 08.1986] MX73..CND MAROON,RED |
58825-22010-02 |
US $22.13 |
||
| replacement | |||||
|
58829
|
58829
58825-22010-15 Pocket, Console BoxCONSOLE BOX [08.1984 - 08.1986] MX73..CND MAROON,RED |
58825-22010-15 |
US $22.13 |
||
|
58829
|
58829
58825-22010-03 Pocket, Console BoxCONSOLE BOX [08.1984 - 08.1986] MX73..CND GRAY,COOL GRAY |
58825-22010-03 |
US $22.13 |
||
| replacement | |||||
|
58829
|
58829
58825-22010-15 Pocket, Console BoxCONSOLE BOX [08.1984 - 08.1986] MX73..CND GRAY,COOL GRAY |
58825-22010-15 |
US $22.13 |
||
|
58829
|
58829
58825-22010-05 Pocket, Console BoxCONSOLE BOX [08.1984 - 08.1986] MX73..CND BEIGE,BEIGE |
58825-22010-05 |
US $22.13 |
||
| replacement | |||||
|
58829
|
58829
58825-22010-15 Pocket, Console BoxCONSOLE BOX [08.1984 - 08.1986] MX73..CND BEIGE,BEIGE |
58825-22010-15 |
US $22.13 |
||
|
58833A
|
58833A
58833-22060-02
Cover, Console, Upper
[08.1984 - 08.1988] MX7# MAROON,RED |
58833-22060-02 |
— | ||
| replacement | |||||
|
58833A
|
58833A
58833-22060-13
Cover, Console, Upper
[08.1984 - 08.1988] MX7# MAROON,RED |
58833-22060-13 |
— | ||
|
58833A
|
58833A
58833-22060-03 Cover, Console, Upper[08.1984 - 08.1986] MX7# GRAY,COOL GRAY |
58833-22060-03 |
US $14.71 |
||
| replacement | |||||
|
58833A
|
58833A
58833-22060-13
Cover, Console, Upper
[08.1984 - 08.1986] MX7# GRAY,COOL GRAY |
58833-22060-13 |
— | ||
|
58833A
|
58833A
58833-22060-04 Cover, Console, Upper[08.1986 - 08.1988] MX7# BLUE,DARK BLUE |
58833-22060-04 |
US $14.71 |
||
| replacement | |||||
|
58833A
|
58833A
58833-22060-13
Cover, Console, Upper
[08.1986 - 08.1988] MX7# BLUE,DARK BLUE |
58833-22060-13 |
— | ||
|
58833A
|
58833A
58833-22060-05 Cover, Console, Upper[08.1984 - 08.1986] MX7# BEIGE,BEIGE |
58833-22060-05 |
US $14.71 |
||
| replacement | |||||
|
58833A
|
58833A
58833-22060-13
Cover, Console, Upper
[08.1984 - 08.1986] MX7# BEIGE,BEIGE |
58833-22060-13 |
— | ||
|
58833A
|
58833A
58833-22060-15
Cover, Console, Upper
[08.1986 - 08.1988] MX7# BEIGE,DARK BEIGE |
58833-22060-15 |
— | ||
| replacement | |||||
|
58833A
|
58833A
58833-22060-13
Cover, Console, Upper
[08.1986 - 08.1988] MX7# BEIGE,DARK BEIGE |
58833-22060-13 |
— | ||
|
58844
|
58844
58844-22080-02 Bezel, Console BoxCONSOLE BOX [08.1986 - 08.1988] MX73..CND MAROON,MAROON |
58844-22080-02 |
US $41.06 |
||
| replacement | |||||
|
58844
|
58844
58844-22080-01 Bezel, Console Box[08.1986 - 08.1988] MX73..CND MAROON,MAROON |
58844-22080-01 |
US $41.06 |
||
|
58844
|
58844
58844-22080-04 Bezel, Console BoxCONSOLE BOX [08.1986 - 08.1988] MX73..CND BLUE,DARK BLUE |
58844-22080-04 |
US $41.06 |
||
| replacement | |||||
|
58844
|
58844
58844-22080-01 Bezel, Console Box[08.1986 - 08.1988] MX73..CND BLUE,DARK BLUE |
58844-22080-01 |
US $41.06 |
||
|
58844
|
58844
58844-22080-05 Bezel, Console BoxCONSOLE BOX [08.1986 - 08.1988] MX73..CND BEIGE,DARK BEIGE |
58844-22080-05 |
US $41.06 |
||
| replacement | |||||
|
58844
|
58844
58844-22080-01 Bezel, Console Box[08.1986 - 08.1988] MX73..CND BEIGE,DARK BEIGE |
58844-22080-01 |
US $41.06 |
||
|
58905
|
58905
58905-22090-03 Door Sub-Assy, Console CompartmentCONSOLE COMPARTMENT [08.1984 - 08.1986] MX7# GRAY,COOL GRAY |
58905-22090-03 |
US $90.27 |
||
|
58905
|
58905
58905-22090-12 Door Sub-Assy, Console CompartmentCONSOLE COMPARTMENT [08.1984 - 08.1986] MX7# MAROON,MAROON |
58905-22090-12 |
US $90.27 |
||
|
58905
|
58905
58905-22090-15 Door Sub-Assy, Console CompartmentCONSOLE COMPARTMENT [08.1984 - 08.1986] MX7# BEIGE,BEIGE |
58905-22090-15 |
US $90.27 |
||
|
58905
|
58905
58905-22120-02 Door Sub-Assy, Console CompartmentCONSOLE COMPARTMENT [08.1986 - 08.1988] MX7# MAROON,MAROON |
58905-22120-02 |
US $219.86 |
||
|
58905
|
58905
58905-22120-04 Door Sub-Assy, Console CompartmentCONSOLE COMPARTMENT [08.1986 - 08.1988] MX7# BLUE,DARK BLUE |
58905-22120-04 |
US $219.86 |
||
|
58905
|
58905
58905-22120-05 Door Sub-Assy, Console CompartmentCONSOLE COMPARTMENT [08.1986 - 08.1988] MX7# BEIGE,DARK BEIGE |
58905-22120-05 |
US $219.86 |
||
|
58940
|
58940
58801-22180-02 Console Assy, RearREAR [08.1984 - 08.1988] MX7#..CND MAROON,RED |
58801-22180-02 |
US $484.85 |
||
| replacement | |||||
|
58940
|
58940
58801-22180-D0 Console Assy, Rear[08.1984 - 08.1988] MX7#..CND MAROON,RED |
58801-22180-D0 |
US $484.85 |
||
|
58940
|
58940
58801-22180-03 Console Assy, RearREAR [08.1984 - 08.1986] MX7#..CND GRAY,COOL GRAY |
58801-22180-03 |
US $439.71 |
||
|
58940
|
58940
58801-22180-04 Console Assy, RearREAR [08.1986 - 08.1988] MX73..CND BLUE,DARK BLUE |
58801-22180-04 |
US $484.85 |
||
|
58940
|
58940
58801-22180-05 Console Assy, RearREAR [08.1984 - 08.1986] MX7#..CND BEIGE,BEIGE |
58801-22180-05 |
US $484.85 |
||
|
58940
|
58940
58801-22180-15 Console Assy, RearREAR [08.1986 - 08.1988] MX73..CND BEIGE,DARK BEIGE |
58801-22180-15 |
US $484.85 |
||
| replacement | |||||
|
58940
|
58940
58801-22180-E0 Console Assy, Rear[08.1986 - 08.1988] MX73..CND BEIGE,DARK BEIGE |
58801-22180-E0 |
US $439.71 |
||
|
58964
|
58964
58964-22050 Stopper, Console Compartment Door, No.1CONSOLE COMPARTMENT DOOR, NO.1 [08.1984 - 08.1988] MX7# |
58964-22050 |
US $8.59 |
||
|
58976
|
58976
58976-22020 Lock Sub-Assy, Console Compartment Door[08.1984 - 08.1988] MX7# |
58976-22020 |
from US $12.07 |
||
|
58996
|
58996
58995-22010 Bracket, Console Box Mounting, No.1[08.1984 - 08.1988] MX7# |
58995-22010 |
US $13.54 |
||
|
58996A
|
58996A
58996-22030 Bracket, Console Box Mounting, No.2[08.1984 - 08.1988] MX7# |
58996-22030 |
US $11.36 |
||
|
9015950105
|
9015950105
90159-50105 SCREW |
90159-50105 |
from US $0.70 |
||
|
9018905024
|
9018905024
90189-05024 NUT |
90189-05024 |
US $2.08 |
||
|
9054103015
|
9054103015
90541-03015 Cushion, Instrument Panel Box |
90541-03015 |
from US $1.58 |
||
|
9326954010
|
9326954010
93269-54010 SCREW |
93269-54010 |
US $0.96 |
||
|
9354054016
|
9354054016
93540-54016 SCREW |
93540-54016 |
from US $0.78 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
|
9616000500
|
9616000500
96160-00500 Ring, E(For Over Center Lever) |
96160-00500 |
from US $0.86 |
||
