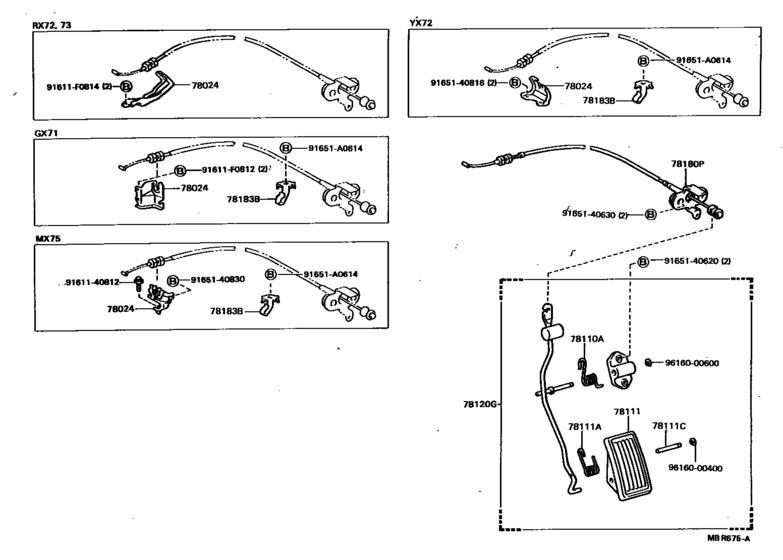

Accelerator Link ([10.1988 - ] (8810- )RHD) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- Europe
- Frame
- MX75
- grade
- GL
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- CRESSIDA WAGON
- From
- 12.1988
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida Wagon
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-14070 Bracket Sub-Assy, Accelerator Control Cable[03.1989 - 05.1992] MX75..GL |
78024-14070 |
US $65.67 |
||
|
78024
|
78024
78024-22140 Bracket Sub-Assy, Accelerator Control CableACCELERATOR CONTROL CABLE [12.1988 - 03.1989] MX75 |
78024-22140 |
US $54.31 |
||
|
78110A
|
78110A
90508-26054 Spring, Torsion (For Accelerator Link)[10.1988 - 02.1993] GX71,MX75,RX7#,YX72..5F |
90508-26054 |
US $6.99 |
||
|
78111
|
78111
78111-12100 Pedal, Accelerator[10.1988 - 01.1990] GX71,MX75,RX7#,YX72 |
78111-12100 |
from US $18.54 |
||
|
78111
|
78111
78111-22010
Pedal, Accelerator
[01.1990 - 02.1993] GX71,MX75,RX7#,YX72 |
78111-22010 |
— | ||
|
78111A
|
78111A
90508-23088 Spring (For Accelerator Pedal)[10.1988 - 02.1993] GX71,MX75,RX7#,YX72 |
90508-23088 |
US $1.40 |
||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[10.1988 - 02.1993] GX71,MX75,RX7#,YX72 |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-22221 Rod Assy, Accelerator Pedal[10.1988 - 02.1993] GX71,MX75,RX7#,YX72..RHD..5F |
78120-22221 |
US $43.10 |
||
|
78180P
|
78180P
78180-2A120 Cable Assy, Accelerator ControlACCELERATOR CONTROL [12.1988 - 05.1992] MX75..GL |
78180-2A120 |
US $55.04 |
||
|
78183B
|
78183B
78183-22040 Clamp, Accelerator Control Cable[12.1988 - 05.1992] GX71,MX75,YX72 |
78183-22040 |
US $9.61 |
||
|
91611F0812
|
91611F0812
91611-F0812
New Genuine Part
|
91611-F0812 |
— | ||
| replacement | |||||
|
91611F0812
|
91611F0812
90119-08846 BOLT WWASHER |
90119-08846 |
US $1.12 |
||
|
91611F0814
|
91611F0814
91611-F0814 Bolt |
91611-F0814 |
US $1.44 |
||
|
91651A0614
|
91651A0614
91651-A0614
BOLT WWASHER
|
91651-A0614 |
— | ||
| replacement | |||||
|
91651A0614
|
91651A0614
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $0.96 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165140630
|
9165140630
91651-40630 BOLT |
91651-40630 |
US $1.28 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
