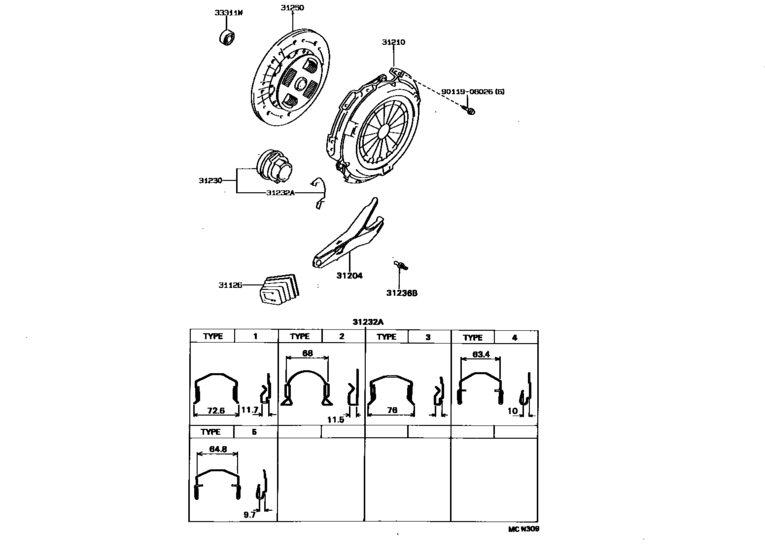

Clutch & Release Fork ([10.1988 - ] (8810- )GX71,MX75,RX72..5F) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- Europe
- Frame
- MX75
- grade
- GL
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- CRESSIDA WAGON
- From
- 12.1988
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida Wagon
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-14010
Boot, Clutch Release Fork
[12.1988 - 05.1992] MX75..GL |
31126-14010 |
— | ||
|
31204
|
31204
31204-14021
Fork Sub-Assy, Clutch Release
[12.1988 - 05.1992] MX75..GL |
31204-14021 |
— | ||
|
31210
|
31210
31210-14140 Cover Assy, ClutchCLUTCH [12.1988 - 08.1989] MX75..GL |
31210-14140 |
US $246.06 |
||
| replacement | |||||
|
31210
|
31210
31210-53020 Cover Assy, Clutch[12.1988 - 08.1989] MX75..GL |
31210-53020 |
US $246.06 |
||
|
31210
|
31210
31210-14160 Cover Assy, ClutchCLUTCH [08.1989 - 05.1992] MX75..GL |
31210-14160 |
US $246.06 |
||
| replacement | |||||
|
31210
|
31210
31210-53020 Cover Assy, Clutch[08.1989 - 05.1992] MX75..GL |
31210-53020 |
US $246.06 |
||
|
31230
|
31230
31230-14030
Bearing Assy, Clutch Release
[12.1988 - 05.1992] MX75..GL |
31230-14030 |
— | ||
|
31232A
|
31232A
31232-14010 Clip, Release Bearing Hub[12.1988 - 05.1992] MX75..GL |
31232-14010 |
US $4.02 |
||
|
31232A
|
31232A
31232-14020
Clip, Release Bearing Hub
[11.1989 - 05.1992] MX75..GL |
31232-14020 |
— | ||
|
31236B
|
31236B
31236-14010 Support, Release Fork[12.1988 - 05.1992] MX75..GL |
31236-14010 |
from US $11.36 |
||
|
31250
|
31250
31250-14160 Disc Assy, Clutch[12.1988 - 05.1992] MX75..GL |
31250-14160 |
US $228.59 |
||
| replacement | |||||
|
31250
|
31250
31250-14163 Disc Assy, Clutch[12.1988 - 05.1992] MX75..GL |
31250-14163 |
US $228.59 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[10.1988 - 08.1990] MX75,RX7#,YX72..5F |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[10.1988 - 08.1990] MX75,RX7#,YX72..5F |
90363-12024 |
from US $5.91 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.70 |
||
