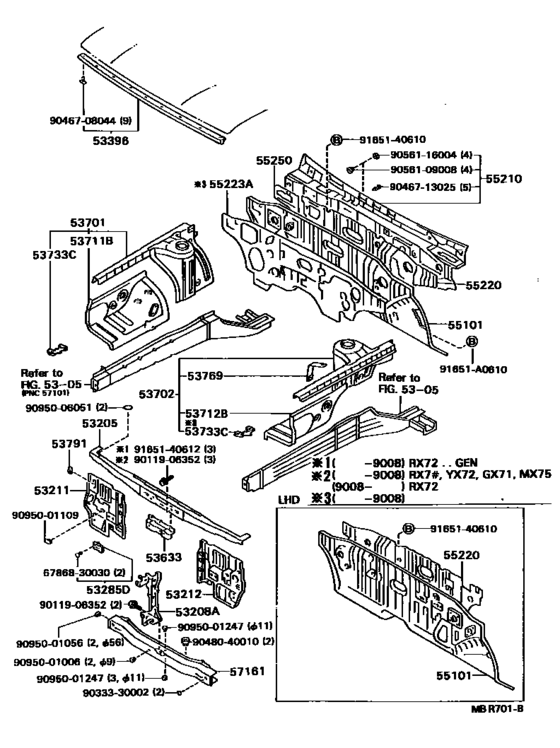

Front Fender Apron & Dash Panel ([10.1988 - ] (8810- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- Europe
- Frame
- MX75
- grade
- GL
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- CRESSIDA WAGON
- From
- 12.1988
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida Wagon
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53208A
|
53208A
53208-22042 Support Sub-Assy, Hood LockHOOD LOCK [10.1988 - 02.1993] GX71,MX75,RX7#,YX72 |
53208-22042 |
US $54.16 |
||
| replacement | |||||
|
53208A
|
53208A
53208-22051 Support Sub-Assy, Hood LockHOOD LOCK [10.1988 - 02.1993] GX71,MX75,RX7#,YX72 |
53208-22051 |
US $54.60 |
||
|
53285D
|
53285D
53285-22020 Cover, Front Bumper Arm Hole[10.1988 - 02.1993] GX71,MX75,RX7#,YX72..GEN,SA RH |
53285-22020 |
US $4.95 |
||
|
53285D
|
53285D
53286-22010 Cover, Front Bumper Arm Hole[10.1988 - 02.1993] GX71,MX75,RX7#,YX72..GEN,SA LH |
53286-22010 |
US $4.95 |
||
|
53396
|
53396
53396-22011 Seal, Radiator Support To Headlamp[10.1988 - 02.1993] GX71,MX75,RX7#,YX72 |
53396-22011 |
US $44.12 |
||
|
53633
|
53633
53633-22030
Shield, Hood Lock Control Cable
[10.1988 - 02.1993] GX71,MX75,RX7#,YX72 |
53633-22030 |
— | ||
|
53733C
|
53733C
53733-22060 Patch, Front Fender Apron[10.1988 - 02.1993] GX71,MX75,RX7#,YX72 |
53733-22060 |
US $5.97 |
||
|
53769
|
53769
53769-22030 Plate, Ignition Coil Mounting, Lh[10.1988 - 02.1993] GX71,MX75,RX7#,YX72 |
53769-22030 |
US $5.97 |
||
|
53791
|
53791
53791-22020 Cover, Cool Air Intake Hole[10.1988 - 02.1993] GX71,MX75,RX7# |
53791-22020 |
US $9.03 |
||
|
55210
|
55210
55210-22180 Insulator Assy, Dash Panel[10.1988 - 02.1993] GX71,MX75,RX7#,YX72..RHD |
55210-22180 |
US $476.11 |
||
| replacement | |||||
|
55210
|
55210
55210-22200 Insulator Assy, Dash Panel[10.1988 - 02.1993] GX71,MX75,RX7#,YX72..RHD |
55210-22200 |
US $524.16 |
||
|
55220
|
55220
55220-22010 Insulator Assy, Dash Panel, No.2[10.1988 - 02.1993] GX71,MX75,RX7#,YX72..RHD |
55220-22010 |
US $144.14 |
||
|
55223A
|
55223A
55223-22100 Insulator, Dash Panel, OuterDASH PANEL, OUTER [12.1988 - 05.1992] GX71,MX75 |
55223-22100 |
US $199.47 |
||
|
55250
|
55250
55250-22010 Door Assy, Cowl Side Ventilator, Rh[10.1988 - 02.1993] GX71,MX75,RX7#,YX72..RHD |
55250-22010 |
US $20.09 |
||
|
91651A0610
|
91651A0610
91651-A0610 BOLT WWASHER |
91651-A0610 |
US $1.60 |
||
|
6786830030
|
6786830030
67868-30030 Clip, Roof Side Rail Weatherstrip |
67868-30030 |
US $3.04 |
||
|
9011906352
|
9011906352
90119-06352
New Genuine Part
|
90119-06352 |
— | ||
| replacement | |||||
|
9011906352
|
9011906352
90119-06430 BOLT WWASHER |
90119-06430 |
from US $1.54 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9046708044
|
9046708044
90467-08044
Clip(For Headlamp Cover Seal)
|
90467-08044 |
— | ||
| replacement | |||||
|
9046708044
|
9046708044
90467-08011 Clip(For Headlamp Cover Seal) |
90467-08011 |
from US $0.36 |
||
|
9046713025
|
9046713025
90467-13025 New Genuine Part |
90467-13025 |
US $3.06 |
||
|
9048040010
|
9048040010
90480-40010 Support, Radiator, Lower |
90480-40010 |
US $12.96 |
||
|
9056109008
|
9056109008
90561-09008 New Genuine Part |
90561-09008 |
US $1.75 |
||
|
9056116004
|
9056116004
90561-16004 New Genuine Part |
90561-16004 |
US $1.75 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001109
|
9095001109
90950-01109 New Genuine Part |
90950-01109 |
US $3.93 |
||
|
9095001247
|
9095001247
90950-01247 New Genuine Part |
90950-01247 |
US $1.31 |
||
|
9095006051
|
9095006051
90950-06051 Protector, Rear Body, No.1 |
90950-06051 |
US $2.08 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
