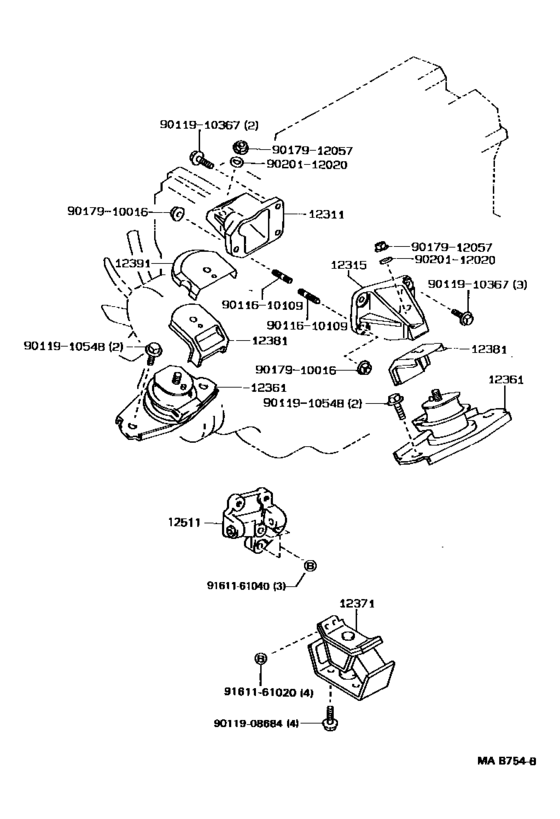

Mounting ([12.1988 - 05.1992] (8812-9205)7MGE) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- Europe
- Frame
- MX75
- grade
- GL
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- CRESSIDA WAGON
- From
- 12.1988
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida Wagon
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-42030 Bracket, Engine Mounting, Front No.1 Rh[12.1988 - 05.1992] 7MGE..MX75 |
12311-42030 |
US $100.46 |
||
|
12315
|
12315
12315-42030 Bracket, Engine Mounting, Front No.1 Lh[12.1988 - 05.1992] 7MGE..MX75 |
12315-42030 |
US $84.45 |
||
|
12361
|
12361
12361-42040
Insulator, Engine Mounting, Front
[12.1988 - 08.1989] 7MGE..MX75 |
12361-42040 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-70151 Insulator, Engine Mounting, Front[12.1988 - 08.1989] 7MGE..MX75 |
12361-70151 |
US $172.50 |
||
|
12361
|
12361
12361-70151 Insulator, Engine Mounting, Front[02.1990 - 05.1992] 7MGE..MX75 |
12361-70151 |
US $172.50 |
||
|
12371
|
12371
12371-41070 Insulator, Engine Mounting, Rear No.1[12.1988 - 05.1992] 7MGE..MX75 |
12371-41070 |
US $82.41 |
||
|
12381
|
12381
12381-42020 Stabilizer, Engine Mounting[02.1990 - 05.1992] 7MGE..MX75 |
12381-42020 |
US $22.42 |
||
|
12391
|
12391
12391-42010
Insulator, Engine Mounting Front, Heat, Rh
[12.1988 - 04.1990] 7MGE..MX75 |
12391-42010 |
— | ||
| replacement | |||||
|
12391
|
12391
12391-46020 Insulator, Engine Mounting Front, Heat, Rh[12.1988 - 04.1990] 7MGE..MX75 |
12391-46020 |
US $20.44 |
||
|
12391
|
12391
12391-42011 Insulator, Engine Mounting Front, Heat, Rh[04.1990 - 05.1992] 7MGE..MX75 |
12391-42011 |
US $20.82 |
||
| replacement | |||||
|
12391
|
12391
12391-46020 Insulator, Engine Mounting Front, Heat, Rh[04.1990 - 05.1992] 7MGE..MX75 |
12391-46020 |
US $20.44 |
||
|
12511
|
12511
12511-42010
Bracket, Alternator, No.1
[12.1988 - 05.1992] 7MGE..MX75 |
12511-42010 |
— | ||
|
9011610109
|
9011610109
90116-10109 Bolt, Stud(For Manifold To Cylinder Head) |
90116-10109 |
US $3.64 |
||
| replacement | |||||
|
9011610109
|
9011610109
90116-10011
Bolt, Stud(For Manifold To Cylinder Head)
|
90116-10011 |
— | ||
|
9011908684
|
9011908684
90119-08684 New Genuine Part |
90119-08684 |
US $1.92 |
||
|
9011910367
|
9011910367
90119-10367 BOLT |
90119-10367 |
US $1.76 |
||
|
9011910548
|
9011910548
90119-10548 New Genuine Part |
90119-10548 |
US $3.06 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.98 |
||
|
9017912057
|
9017912057
90179-12057
New Genuine Part
|
90179-12057 |
— | ||
|
9020112020
|
9020112020
90201-12020 New Genuine Part |
90201-12020 |
US $2.56 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.08 |
||
