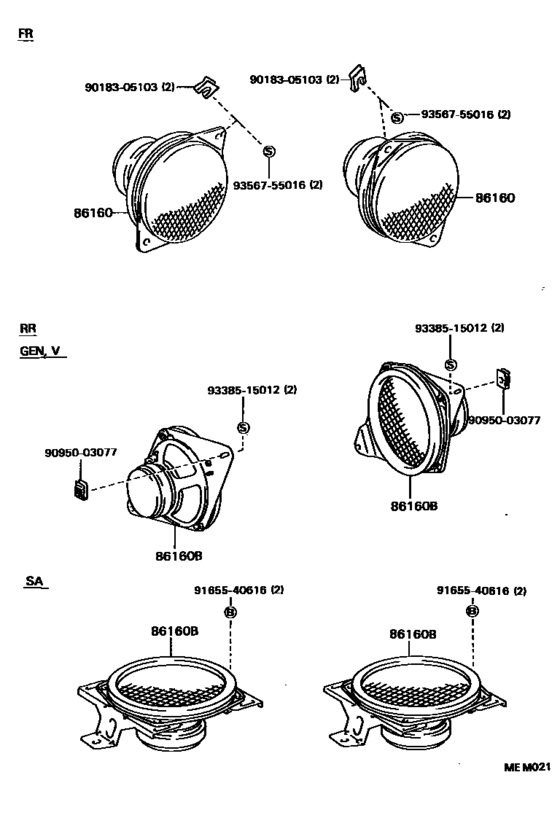

Speaker ([10.1988 - 02.1993] (8810-9302)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- Europe
- Frame
- MX75
- grade
- GL
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- CRESSIDA WAGON
- From
- 12.1988
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida Wagon
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9095003077
|
9095003077
90950-03077 New Genuine Part |
90950-03077 |
US $2.77 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9338515012
|
9338515012
93385-15012 SCREW |
93385-15012 |
US $2.56 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
