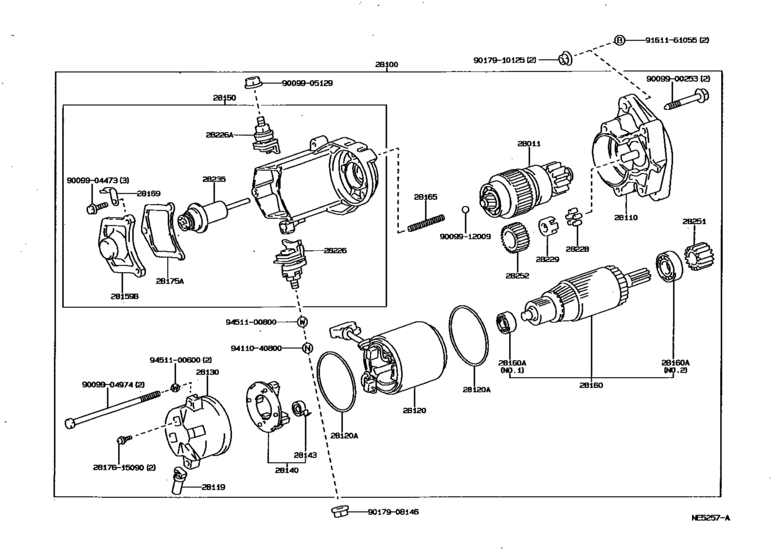

Starter ([12.1988 - 05.1992] 12V 1.4KW (8812-9205)7MGE) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- Europe
- Frame
- MX75
- grade
- GL
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- CRESSIDA WAGON
- From
- 12.1988
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida Wagon
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[10.1988 - 02.1993] 22R,1GFE,7MGE,3Y..GX71,MX75,RX7#,YX72 |
28011-26042 |
— | ||
|
28100
|
28100
28100-45050 Starter Assy[12.1988 - 05.1992] 7MGE..MX75 12V 1.4KW |
28100-45050 |
US $1,543.36 |
||
|
28110
|
28110
28110-45050 Housing Assy, Starter Drive[12.1988 - 05.1992] 7MGE..MX75 |
28110-45050 |
US $88.82 |
||
|
28119
|
28119
28199-15090
Cover, Starter End Frame
[12.1988 - 05.1992] 7MGE..MX75 |
28199-15090 |
— | ||
|
28120
|
28120
28120-15090
Yoke Assy, Starter
[12.1988 - 05.1992] 7MGE..MX75 |
28120-15090 |
— | ||
|
28120A
|
28120A
90099-14064 Rubber(For Starter Yoke)[12.1988 - 05.1992] 7MGE..MX75 |
90099-14064 |
from US $3.67 |
||
|
28130
|
28130
28130-15090 Frame Assy, Starter Commutator End[12.1988 - 05.1992] 7MGE..MX75 |
28130-15090 |
US $37.27 |
||
|
28140
|
28140
28140-15090
Holder Assy, Starter Brush
[12.1988 - 05.1992] 7MGE..MX75 |
28140-15090 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[10.1988 - 02.1993] 22R,1GFE,7MGE,3Y..GX71,MX75,RX7#,YX72 |
90099-17112 |
— | ||
|
28150
|
28150
28150-45050 Switch Assy, Magnet Starter[12.1988 - 05.1992] 7MGE..MX75 |
28150-45050 |
US $349.44 |
||
|
28159B
|
28159B
28159-10040
Cover, Magnet Switch
[10.1988 - 02.1993] 22R,7MGE,3Y..MX75,RX7#,YX72 |
28159-10040 |
— | ||
|
28160
|
28160
28160-15090 Armature Assy, Starter[12.1988 - 08.1989] 7MGE..MX75 |
28160-15090 |
US $324.69 |
||
| replacement | |||||
|
28160
|
28160
28160-15091
Armature Assy, Starter
[12.1988 - 08.1989] 7MGE..MX75 |
28160-15091 |
— | ||
|
28160
|
28160
28160-15091
Armature Assy, Starter
[08.1989 - 05.1992] 7MGE..MX75 |
28160-15091 |
— | ||
|
28160A
|
28160A
90099-10143
Bearing, Starter Armature
[12.1988 - 05.1992] 7MGE..MX75 NO.1 |
90099-10143 |
— | ||
|
28160A
|
28160A
90099-10144
Bearing, Starter Armature
[12.1988 - 05.1992] 7MGE..MX75 NO.2 |
90099-10144 |
— | ||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[10.1988 - 02.1993] 22R,1GFE,7MGE,3Y..GX71,MX75,RX7#,YX72 |
28165-26040 |
— | ||
|
28169
|
28169
28169-10040
Clamp, Starter Motor Lead Wire
[10.1988 - 02.1993] 22R,7MGE,3Y..MX75,RX7#,YX72 |
28169-10040 |
— | ||
|
28175A
|
28175A
28175-10040
Gasket, Magnet Switch Cover
[10.1988 - 02.1993] 22R,7MGE,3Y..MX75,RX7#,YX72 |
28175-10040 |
— | ||
|
28226
|
28226
28226-72080 Starter Kit, Battery Terminal[10.1988 - 02.1993] 22R,7MGE,3Y..MX75,RX7#,YX72 |
28226-72080 |
US $16.61 |
||
|
28226A
|
28226A
28226-72010 Starter Kit, Motor Terminal[10.1988 - 02.1993] 22R,7MGE,3Y..MX75,RX7#,YX72 |
28226-72010 |
from US $10.49 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[10.1988 - 02.1993] 22R,1GFE,7MGE,3Y..GX71,MX75,RX7#,YX72 |
28228-26040 |
— | ||
|
28229
|
28229
28229-26040
Retainer, Starter Idle Gear
[10.1988 - 02.1993] 22R,1GFE,7MGE,3Y..GX71,MX75,RX7#,YX72 |
28229-26040 |
— | ||
|
28235
|
28235
28235-35080 Plunger, Magnet Switch[10.1988 - 02.1993] 22R,7MGE,3Y..MX75,RX7#,YX72 |
28235-35080 |
from US $25.68 |
||
|
28251
|
28251
28251-15090
Pinion, Starter Drive
[12.1988 - 05.1992] 7MGE..MX75 |
28251-15090 |
— | ||
|
2817615090
|
2817615090
28176-15090
Screw, Starter
|
28176-15090 |
— | ||
| replacement | |||||
|
2817615090
|
2817615090
28176-87701
Screw, Starter
|
28176-87701 |
— | ||
|
9009900253
|
9009900253
90099-00253
New Genuine Part
|
90099-00253 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009904974
|
9009904974
90099-04974
New Genuine Part
|
90099-04974 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9017910125
|
9017910125
90179-10125
Nut(For Counter Gear Shaft)
|
90179-10125 |
— | ||
| replacement | |||||
|
9017910125
|
9017910125
90179-10132 Nut |
90179-10132 |
from US $0.98 |
||
|
9161161055
|
9161161055
91611-61055 Bolt(For Clutch Release Cylinder Setting) |
91611-61055 |
US $2.72 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
