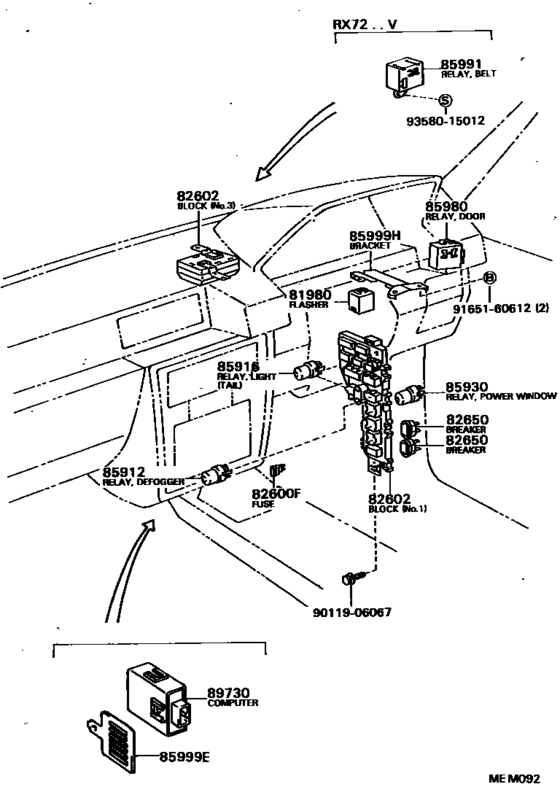

Switch & Relay & Computer ([10.1988 - 02.1993] COWL RH (8810-9302)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- Europe
- Frame
- MX75
- grade
- GL
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- CRESSIDA WAGON
- From
- 12.1988
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida Wagon
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-16010 Flasher Assy, Turn Signal[12.1988 - 05.1992] GX71,MX75,RX7#,YX72..SA |
81980-16010 |
US $121.36 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[12.1988 - 09.1989] GX71,MX75,RX7#,YX72..SA 10A,E/G ROOM RELAY BLOCK; MX75 10A,10A,E/G ROOM RELAY BLOCK |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[10.1988 - 09.1989] GX71,MX75,RX7#,YX72..RHD 15A,E/G ROOM RELAY BLOCK |
90982-09003 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[10.1988 - 09.1989] GX71,MX75,RX7#,YX72..RHD 20A,E/G ROOM RELAY BLOCK |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[12.1988 - 09.1989] GX71,MX75,RX7#,YX72..SA 7.5A,E/G ROOM J/B |
90982-09005 |
from US $1.03 |
||
|
82602
|
82602
82602-22170 Block Sub-Assy, Relay[10.1988 - 02.1993] GX71,MX75,RX7#,YX72..RHD NO.3 |
82602-22170 |
US $276.64 |
||
|
82602
|
82602
82602-22181 Block Sub-Assy, Relay[12.1988 - 05.1992] GX71,MX75 NO.5 |
82602-22181 |
US $276.64 |
||
|
82602
|
82602
82602-22212 Block Assy, Relay, Cowl Side[12.1988 - 09.1989] GX71,MX75,RX7#,YX72..SA NO.1 |
82602-22212 |
US $307.22 |
||
| replacement | |||||
|
82602
|
82602
82602-22370 Block Sub-Assy, RelayRELAY [12.1988 - 09.1989] GX71,MX75,RX7#,YX72..SA NO.1 |
82602-22370 |
US $302.85 |
||
|
82602
|
82602
82602-22370 Block Sub-Assy, RelayRELAY [09.1989 - 05.1992] GX71,MX75,RX7#,YX72..SA NO.1 |
82602-22370 |
US $302.85 |
||
|
82602
|
82602
82602-28020
Block Sub-Assy, Relay
[12.1988 - 05.1992] GX71,MX75 CERCUIT BRAKER BLOCK |
82602-28020 |
— | ||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[10.1988 - 02.1993] GX71,MX75,RX7#,YX72 30A |
82650-20011 |
US $14.08 |
||
|
82650
|
82650
82650-20020 Breaker Assy, Wiring Circuit, No.1[12.1988 - 05.1992] GX71,MX75,RX7#,YX72..SA 40A |
82650-20020 |
US $17.04 |
||
|
85912
|
85912
90987-02002
Relay, Ignition, No.1
[10.1988 - 08.1990] GX71,MX75,RX7#,YX72 MARUKO |
90987-02002 |
— | ||
| replacement | |||||
|
85912
|
85912
90987-02004 Relay Assy, Starter[10.1988 - 08.1990] GX71,MX75,RX7#,YX72 MARUKO |
90987-02004 |
from US $28.49 |
||
|
85912
|
85912
90987-02004 Relay Assy, Starter[10.1988 - 08.1990] GX71,MX75,RX7#,YX72 NIPPONDENSO |
90987-02004 |
from US $28.49 |
||
|
85916
|
85916
90987-02002
Relay, Ignition, No.1
[10.1988 - 02.1993] GX71,MX75,RX7#,YX72 MARUKO,TAIL LAMP |
90987-02002 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02004 Relay Assy, Starter[10.1988 - 02.1993] GX71,MX75,RX7#,YX72 MARUKO,TAIL LAMP |
90987-02004 |
from US $28.49 |
||
|
85916
|
85916
90987-02004 Relay Assy, Starter[10.1988 - 02.1993] GX71,MX75,RX7#,YX72 *ND,TAIL LAMP |
90987-02004 |
from US $28.49 |
||
|
85916
|
85916
90987-02006 Relay[10.1988 - 08.1990] GX71,MX75,RX7#,YX72 HEADLAMP |
90987-02006 |
from US $27.28 |
||
|
85999H
|
85999H
85999-22160 Bracket, Combination Relay[10.1988 - 02.1993] GX71,MX75,RX7#,YX72..RHD |
85999-22160 |
US $14.12 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
|
9358015012
|
9358015012
93580-15012 New Genuine Part |
93580-15012 |
US $1.31 |
||
| replacement | |||||
|
9358015012
|
9358015012
90099-00324 New Genuine Part |
90099-00324 |
US $1.46 |
||
