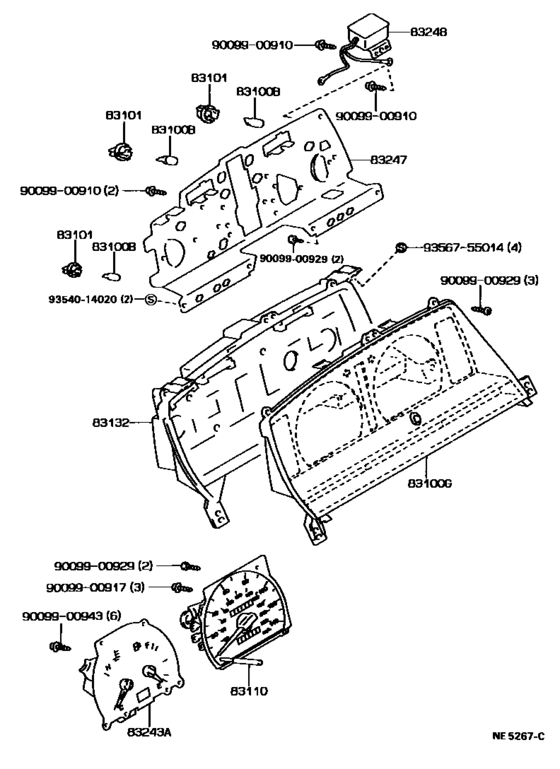

Meter ([08.1988 - ] ANALOG,W/O(TACHOMETER) (8808- )MX81,RX81..XL) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- MX81
- grade
- XL
- body
- SED
- ENGINE
- 5ME
- TRANSMISSION
- MTM
- DESTINATION
- V
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 5F
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-24030 Bulb, Combination Meter, No.1[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD 12V 3.4W W(GREEN CAP),SOCKET:83101-14030 |
83109-24030 |
from US $3.14 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1988 - 08.1990] MX8#..ARL,V 12V 1.2W W/O SOCKET,SOCKET:83101-14040 |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD 12V 3.4W,SOCKET:83101-14030 |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1988 - 08.1996] GX81,LX80,MX81,RX8#..LHD 12V 3.4W,SOCKET:83101-14030 |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83133-22730
Glass, Combination Meter
[08.1988 - 08.1996] GX81,MX81,RX8#..LHD..(GD,GL,GLX); MX81,RX8#..LHD..XL W(TACHOMETER) |
83133-22730 |
— | ||
|
83100G
|
83100G
83133-2A010
Glass, Combination Meter
[08.1988 - 08.1996] MX81,RX8#..LHD..XL |
83133-2A010 |
— | ||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1990 - 08.1996] GX81,LX80,MX81,RX8#..LHD BULB:12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1988 - 08.1990] MX8#..ARL,V BULB:12V 1.2W |
83101-14040 |
US $2.93 |
||
|
83110
|
83110
83110-2A640
Speedometer Assy
[08.1988 - 08.1990] MX81..GD,GL; MX81..XL W(TACHOMETER) |
83110-2A640 |
— | ||
|
83110
|
83110
83110-2A641 Speedometer Assy[08.1990 - 02.1993] MX81..GD,GL; MX81..XL W(TACHOMETER) |
83110-2A641 |
US $413.50 |
||
|
83110
|
83110
83110-2A890 Speedometer Assy[08.1988 - 08.1990] MX81..XL |
83110-2A890 |
US $304.30 |
||
|
83110
|
83110
83110-2A891 Speedometer Assy[08.1990 - 02.1993] MX81..XL |
83110-2A891 |
US $413.50 |
||
|
83132
|
83132
83132-2A230
Case, Combination Meter
[08.1988 - 08.1990] MX81..GD,GL; MX81..XL W(TACHOMETER) |
83132-2A230 |
— | ||
| replacement | |||||
|
83132
|
83132
83132-2A210
Case, Combination Meter
[08.1988 - 08.1990] MX81..GD,GL; MX81..XL W(TACHOMETER) |
83132-2A210 |
— | ||
|
83132
|
83132
83132-2A370
Case, Combination Meter
[08.1988 - 08.1990] MX81..XL |
83132-2A370 |
— | ||
|
83132
|
83132
83132-2A530
Case, Combination Meter
[08.1990 - 02.1993] MX81..GD,GL; MX81..XL W(TACHOMETER) |
83132-2A530 |
— | ||
| replacement | |||||
|
83132
|
83132
83132-2A450
Case, Combination Meter
[08.1990 - 02.1993] MX81..GD,GL; MX81..XL W(TACHOMETER) |
83132-2A450 |
— | ||
|
83132
|
83132
83132-2A630
Case, Combination Meter
[08.1990 - 02.1993] MX81..XL |
83132-2A630 |
— | ||
|
83243A
|
83243A
83243-22390
Gauge Sub-Assy, Fuel Receiver
[08.1988 - 08.1990] GX81,LX80,MX81,RX8#..LHD..(GD,GL,GLX); MX81,RX8#..XL..V W(TACHOMETER); RX80..LHD..XL..GEN W(TACHOMETER) OR SINGAPORE SPEC & W(TACHOMETER) |
83243-22390 |
— | ||
|
83243A
|
83243A
83243-22410
Gauge Sub-Assy, Fuel Receiver
[08.1988 - 08.1990] MX81,RX8#..XL..V; RX80..LHD..XL..GEN SINGAPORE SPEC |
83243-22410 |
— | ||
|
83243A
|
83243A
83243-22450 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [08.1990 - 08.1996] GX81,LX80,MX81,RX8#..LHD..(GD,GL,GLX); MX81,RX81..XL W(TACHOMETER) |
83243-22450 |
US $58.39 |
||
|
83243A
|
83243A
83243-22470 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [08.1990 - 08.1996] MX81,RX81..XL |
83243-22470 |
US $58.39 |
||
|
83247
|
83247
83247-2A790
Plate, Meter Circuit
[08.1988 - 02.1993] MX81..GD,GL; MX81..XL W(TACHOMETER) |
83247-2A790 |
— | ||
|
83247
|
83247
83247-2C070
Plate, Meter Circuit
[08.1988 - 02.1993] MX81..XL |
83247-2C070 |
— | ||
|
83248
|
83248
86640-22110 Chime, Speed WarningSPEED WARNING [08.1988 - 08.1996] MX81,RX8#..V |
86640-22110 |
US $36.11 |
||
|
9009900910
|
9009900910
90099-00910
New Genuine Part
|
90099-00910 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009900943
|
9009900943
90099-00943
New Genuine Part
|
90099-00943 |
— | ||
|
9354014020
|
9354014020
93540-14020 Screw |
93540-14020 |
US $1.92 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
