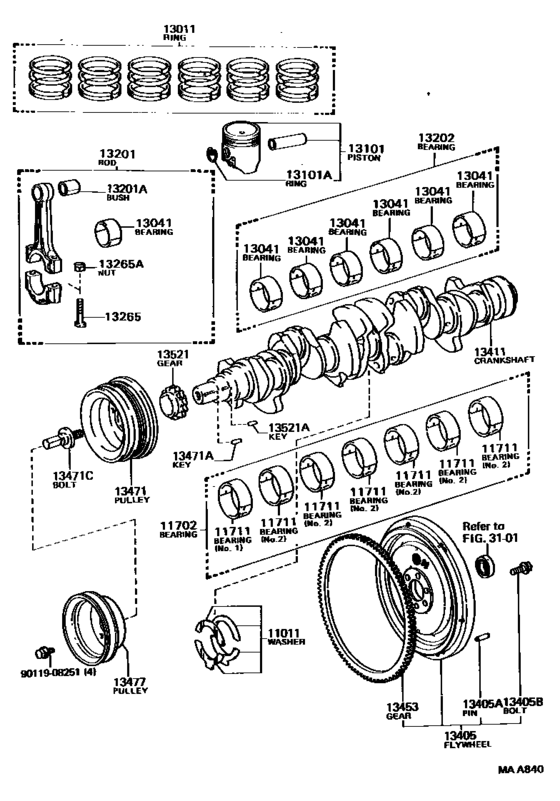

Crankshaft & Piston ([08.1988 - 02.1993] (8808-9302)5ME) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1993
- Sales region
- Europe
- Frame
- MX81
- grade
- GL
- body
- SED
- ENGINE
- 5ME
- TRANSMISSION
- ATM
- DESTINATION
- V
- Model
- CRESSIDA
- From
- 08.1988
- To
- 02.1993
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-43010 Washer Set, Crankshaft Thrust[08.1988 - 02.1993] 5ME,7MGE..MX8# STD |
11011-43010 |
US $26.56 |
||
|
11011
|
11011
11012-43010
Washer Set, Crankshaft Thrust
[08.1988 - 02.1993] 5ME,7MGE..MX8# O/S 0.125 |
11012-43010 |
— | ||
|
11011
|
11011
11013-43010
Washer Set, Crankshaft Thrust
[08.1988 - 02.1993] 5ME..MX81 O/S 0.250 |
11013-43010 |
— | ||
|
11702
|
11702
11704-43010
Bearing Set, Crankshaft
[08.1988 - 02.1993] 5ME,7MGE..MX8# U/S 0.25 |
11704-43010 |
— | ||
|
11702
|
11702
11705-43010 Bearing Set, Crankshaft[08.1988 - 02.1993] 5ME..MX81 U/S 0.50 |
11705-43010 |
from US $131.41 |
||
|
11711
|
11711
11071-43010-01
Bearing, Crankshaft
[08.1988 - 02.1993] 5ME,7MGE..MX8# MARK 1,NO.1 |
11071-43010-01 |
— | ||
|
11711
|
11711
11071-43010-02
Bearing, Crankshaft
[08.1988 - 02.1993] 5ME,7MGE..MX8# MARK 2,NO.1 |
11071-43010-02 |
— | ||
|
11711
|
11711
11071-43010-03
Bearing, Crankshaft
[08.1988 - 02.1993] 5ME,7MGE..MX8# MARK 3,NO.1 |
11071-43010-03 |
— | ||
|
11711
|
11711
11071-43010-04
Bearing, Crankshaft
[08.1988 - 02.1993] 5ME,7MGE..MX8# MARK 4,NO.1 |
11071-43010-04 |
— | ||
|
11711
|
11711
11071-43010-05
Bearing, Crankshaft
[08.1988 - 02.1993] 5ME,7MGE..MX8# MARK 5,NO.1 |
11071-43010-05 |
— | ||
|
11711
|
11711
11701-43010-01
Bearing, Crankshaft
[08.1988 - 02.1993] 5ME,7MGE..MX8# MARK 1,NO.2 |
11701-43010-01 |
— | ||
|
11711
|
11711
11701-43010-02
Bearing, Crankshaft
[08.1988 - 02.1993] 5ME,7MGE..MX8# MARK 2,NO.2 |
11701-43010-02 |
— | ||
|
11711
|
11711
11701-43010-03
Bearing, Crankshaft
[08.1988 - 02.1993] 5ME,7MGE..MX8# MARK 3,NO.2 |
11701-43010-03 |
— | ||
|
11711
|
11711
11701-43010-04
Bearing, Crankshaft
[08.1988 - 02.1993] 5ME,7MGE..MX8# MARK 4,NO.2 |
11701-43010-04 |
— | ||
|
11711
|
11711
11701-43010-05 Bearing, Crankshaft[08.1988 - 02.1993] 5ME,7MGE..MX8# MARK 5,NO.2 |
11701-43010-05 |
US $18.66 |
||
|
13011
|
13011
13011-43030
Ring Set, Piston
[08.1988 - 08.1989] 5ME..MX81 STD |
13011-43030 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-43031
Ring Set, Piston
[08.1988 - 08.1989] 5ME..MX81 STD |
13011-43031 |
— | ||
|
13011
|
13011
13011-43031
Ring Set, Piston
[08.1989 - 02.1993] 5ME..MX81 STD |
13011-43031 |
— | ||
|
13011
|
13011
13013-43030 Ring Set, PistonPISTON [08.1988 - 04.1989] 5ME..MX81 O/S 0.50 |
13013-43030 |
US $304.30 |
||
| replacement | |||||
|
13011
|
13011
13013-43031 Ring Set, PistonPISTON [08.1988 - 04.1989] 5ME..MX81 O/S 0.50 |
13013-43031 |
US $298.48 |
||
|
13011
|
13011
13013-43031 Ring Set, PistonPISTON [04.1989 - 02.1993] 5ME..MX81 O/S 0.50 |
13013-43031 |
US $298.48 |
||
|
13011
|
13011
13014-43030 Ring Set, PistonPISTON [08.1988 - 04.1989] 5ME..MX81 O/S 0.75 |
13014-43030 |
US $304.30 |
||
| replacement | |||||
|
13011
|
13011
13014-43031 Ring Set, PistonPISTON [08.1988 - 04.1989] 5ME..MX81 O/S 0.75 |
13014-43031 |
US $298.48 |
||
|
13011
|
13011
13014-43031 Ring Set, PistonPISTON [04.1989 - 02.1993] 5ME..MX81 O/S 0.75 |
13014-43031 |
US $298.48 |
||
|
13011
|
13011
13015-43030 Ring Set, PistonPISTON [08.1988 - 04.1989] 5ME..MX81 O/S 1.00 |
13015-43030 |
US $304.30 |
||
| replacement | |||||
|
13011
|
13011
13015-43031 Ring Set, PistonPISTON [08.1988 - 04.1989] 5ME..MX81 O/S 1.00 |
13015-43031 |
US $298.48 |
||
|
13011
|
13011
13015-43031 Ring Set, PistonPISTON [04.1989 - 02.1993] 5ME..MX81 O/S 1.00 |
13015-43031 |
US $298.48 |
||
|
13041
|
13041
13041-42010-01
Bearing, Connecting Rod
[08.1988 - 02.1993] 5ME,7MGE..MX8# MARK 1 |
13041-42010-01 |
— | ||
|
13041
|
13041
13041-42010-02 Bearing, Connecting Rod[08.1988 - 02.1993] 5ME,7MGE..MX8# MARK 2 |
13041-42010-02 |
US $12.93 |
||
|
13041
|
13041
13041-42010-03
Bearing, Connecting Rod
[08.1988 - 02.1993] 5ME,7MGE..MX8# MARK 3 |
13041-42010-03 |
— | ||
|
13041
|
13041
13041-42010-04
Bearing, Connecting Rod
[08.1988 - 02.1993] 5ME,7MGE..MX8# MARK 4 |
13041-42010-04 |
— | ||
|
13041
|
13041
13041-42010-05
Bearing, Connecting Rod
[08.1988 - 02.1993] 5ME,7MGE..MX8# MARK 5 |
13041-42010-05 |
— | ||
|
13101
|
13101
13101-43011-00 Piston Sub-Assy, W/pinW/PIN [08.1988 - 12.1992] 5ME..MX81 STD,MARK 0 |
13101-43011-00 |
US $94.64 |
||
| replacement | |||||
|
13101
|
13101
13101-43011-S0 Piston Sub-Assy, W/pinW/PIN [08.1988 - 12.1992] 5ME..MX81 STD,MARK 0 |
13101-43011-S0 |
US $94.64 |
||
|
13101
|
13101
13101-43011-01 Piston Sub-Assy, W/pinW/PIN [08.1988 - 02.1993] 5ME..MX81 STD,MARK 1 |
13101-43011-01 |
US $94.64 |
||
|
13101
|
13101
13101-43011-02 Piston Sub-Assy, W/pinW/PIN [08.1988 - 02.1993] 5ME..MX81 STD,MARK 2 |
13101-43011-02 |
from US $62.19 |
||
|
13101
|
13101
13101-43011-03 Piston Sub-Assy, W/pinW/PIN [08.1988 - 02.1993] 5ME..MX81 STD,MARK 3 |
13101-43011-03 |
US $94.64 |
||
|
13101
|
13101
13101-43011-04 Piston Sub-Assy, W/pinW/PIN [08.1988 - 02.1993] 5ME..MX81 STD,MARK 4 |
13101-43011-04 |
US $94.64 |
||
|
13101
|
13101
13101-43011-S0 Piston Sub-Assy, W/pinW/PIN [12.1992 - 02.1993] 5ME..MX81 STD,MARK 0 |
13101-43011-S0 |
US $94.64 |
||
|
13101
|
13101
13103-43031 Piston Sub-Assy, W/pinW/PIN [08.1988 - 02.1993] 5ME..MX81 O/S 0.50 |
13103-43031 |
from US $62.13 |
||
|
13101
|
13101
13104-43031 Piston Sub-Assy, W/pinW/PIN [08.1988 - 02.1993] 5ME..MX81 O/S 0.75 |
13104-43031 |
US $100.46 |
||
|
13101
|
13101
13105-43031 Piston Sub-Assy, W/pinW/PIN [08.1988 - 02.1993] 5ME..MX81 O/S 1.00 |
13105-43031 |
from US $62.19 |
||
|
13101A
|
13101A
90521-25001
Ring, Hole Snap(For Piston Pin)
[08.1988 - 02.1993] 5ME,7MGE..MX8# |
90521-25001 |
— | ||
|
13201
|
13201
13201-49025 Rod Sub-Assy, ConnectingCONNECTING [08.1988 - 06.1990] 5ME..MX81 |
13201-49025 |
US $228.59 |
||
| replacement | |||||
|
13201
|
13201
13201-49026 Rod Sub-Assy, ConnectingCONNECTING [08.1988 - 06.1990] 5ME..MX81 |
13201-49026 |
from US $183.79 |
||
|
13201
|
13201
13201-49026 Rod Sub-Assy, ConnectingCONNECTING [06.1990 - 02.1993] 5ME..MX81 |
13201-49026 |
from US $183.79 |
||
|
13201A
|
13201A
90999-73066 Bush(For Connecting Rod Small End)[08.1988 - 08.1990] 5ME,7MGE..MX8# |
90999-73066 |
US $7.16 |
||
|
13202
|
13202
13204-42010
Bearing Set, Connecting Rod
[08.1988 - 02.1993] 5ME,7MGE..MX8# U/S 0.25 |
13204-42010 |
— | ||
|
13202
|
13202
13205-42010 Bearing Set, Connecting Rod[08.1988 - 02.1993] 5ME..MX81 U/S 0.50 |
13205-42010 |
US $161.62 |
||
|
13265
|
13265
13265-45010 Bolt, Connecting RodCONNECTING ROD [08.1988 - 05.1990] 5ME..MX81 |
13265-45010 |
US $8.59 |
||
| replacement | |||||
|
13265
|
13265
13265-49025
Bolt, Connecting Rod
[08.1988 - 05.1990] 5ME..MX81 |
13265-49025 |
— | ||
|
13265
|
13265
13265-52010 Bolt, Connecting Rod[05.1990 - 02.1993] 5ME..MX81 |
13265-52010 |
US $10.92 |
||
|
13265A
|
13265A
90170-09195 Nut, Hexagon(For Connecting Rod Bolt)[08.1988 - 05.1990] 5ME..MX81 |
90170-09195 |
US $3.20 |
||
|
13265A
|
13265A
90179-09006 Nut, Hexagon(For Connecting Rod Bolt)[05.1990 - 02.1993] 5ME..MX81; 1GFE..GX81 |
90179-09006 |
US $1.22 |
||
|
13411
|
13411
13411-45013 Crankshaft[08.1988 - 02.1993] 5ME..MX81 |
13411-45013 |
US $1,820 |
||
|
13471
|
13471
13407-41030
Pulley, Crankshaft
[08.1988 - 02.1993] 5ME..MX81 |
13407-41030 |
— | ||
|
13471A
|
13471A
90280-05003 Key, Crankshaft(For Crankshaft Pulley Set)[08.1988 - 02.1993] 5ME,7MGE..MX8# |
90280-05003 |
US $2.62 |
||
|
13471C
|
13471C
90105-16011
Bolt(For Crankshaft Pulley Set)
[08.1988 - 02.1993] 5ME..MX81 |
90105-16011 |
— | ||
|
13477
|
13477
88451-30330 Pulley, Crankshaft, No.2[08.1988 - 02.1993] 5ME..MX81 |
88451-30330 |
US $47.90 |
||
|
13521
|
13521
13521-41011 Gear Or Sprocket, Crankshaft Timing[08.1988 - 02.1993] 5ME..MX81 |
13521-41011 |
US $50.38 |
||
|
13521A
|
13521A
90280-05003 Key, Crankshaft(For Crankshaft Pulley Set)[08.1988 - 02.1993] 5ME,7MGE..MX8# |
90280-05003 |
US $2.62 |
||
|
9011908251
|
9011908251
90119-08251 BOLT |
90119-08251 |
from US $1.28 |
||
