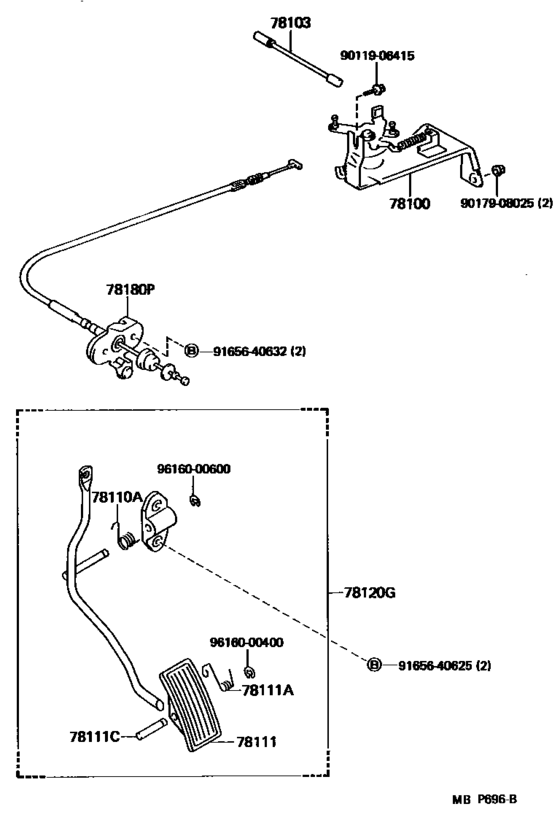

Accelerator Link ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78100
|
78100
78100-22110
Link Assy, Accelerator
[08.1988 - 07.1992] MX83 |
78100-22110 |
— | ||
|
78103
|
78103
78103-22120 Rod Sub-Assy, Accelerator Connecting, No.1ACCELERATOR CONNECTING, NO.1 [08.1988 - 07.1992] MX83 |
78103-22120 |
US $8.59 |
||
|
78110A
|
78110A
90508-18060 Spring (For Accelerator Pedal Rod)[08.1988 - 07.1992] MX83 |
90508-18060 |
US $1.44 |
||
|
78111
|
78111
78111-12100 Pedal, Accelerator[08.1988 - 01.1990] MX83 |
78111-12100 |
from US $18.54 |
||
|
78111
|
78111
78111-22010
Pedal, Accelerator
[01.1990 - 07.1992] MX83 |
78111-22010 |
— | ||
|
78111A
|
78111A
90508-23108
Spring (For Accelerator Pedal)
[08.1988 - 07.1992] MX83 |
90508-23108 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[08.1988 - 07.1992] MX83 |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-22300 Rod Assy, Accelerator PedalACCELERATOR PEDAL [08.1988 - 07.1992] MX83 |
78120-22300 |
US $56.35 |
||
|
78180P
|
78180P
78180-2A010
Cable Assy, Accelerator Control
[08.1988 - 07.1992] MX83 |
78180-2A010 |
— | ||
|
9011906415
|
9011906415
90119-06415 New Genuine Part |
90119-06415 |
US $2.18 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.88 |
||
|
9165640625
|
9165640625
91656-40625 New Genuine Part |
91656-40625 |
US $1.89 |
||
| replacement | |||||
|
9165640625
|
9165640625
91651-60625 New Genuine Part |
91651-60625 |
US $2.56 |
||
|
9165640632
|
9165640632
91656-40632 New Genuine Part |
91656-40632 |
US $1.89 |
||
| replacement | |||||
|
9165640632
|
9165640632
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
