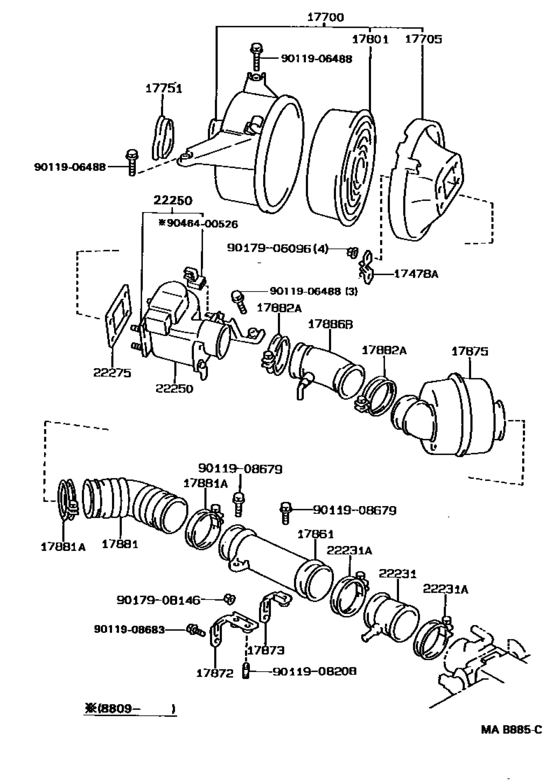

Air Cleaner ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17478A
|
17478A
17478-43010
Plate, Lock
[08.1988 - 07.1992] 7MGE..MX83 |
17478-43010 |
— | ||
|
17700
|
17700
17700-70130
Cleaner Assy, Air
[08.1988 - 07.1992] 7MGE..MX83 |
17700-70130 |
— | ||
|
17705
|
17705
17705-70070
Cap Sub-Assy, Air Cleaner
[08.1988 - 07.1992] 7MGE..MX83 |
17705-70070 |
— | ||
|
17751
|
17751
17751-70020
Inlet, Air Cleaner, No.1
[08.1988 - 07.1992] 7MGE..MX83 |
17751-70020 |
— | ||
|
17801
|
17801
17801-70020 Element Sub-Assy, Air Cleaner Filter[08.1988 - 07.1992] 7MGE..MX83 |
17801-70020 |
from US $43.17 |
||
|
17861
|
17861
17861-42030 Connector, Intake AirINTAKE AIR [08.1988 - 07.1992] 7MGE..MX83 |
17861-42030 |
US $81.54 |
||
|
17872
|
17872
17872-42080 Bracket, Intake Air ConnectorINTAKE AIR CONNECTOR [08.1988 - 07.1992] 7MGE..MX83 |
17872-42080 |
US $10.19 |
||
|
17873
|
17873
17873-42030 Bracket, Intake Air Connector, No.2INTAKE AIR CONNECTOR, NO.2 [08.1988 - 07.1992] 7MGE..MX83 |
17873-42030 |
US $7.72 |
||
|
17875
|
17875
17875-42060
Pipe, Intake Air Connector
[08.1988 - 07.1992] 7MGE..MX83 |
17875-42060 |
— | ||
|
17881
|
17881
17881-42050
Hose, Air Cleaner, No.1
[08.1988 - 07.1992] 7MGE..MX83 |
17881-42050 |
— | ||
|
17881A
|
17881A
96111-10830 Clamp, Hose(For Air Connector)[08.1988 - 07.1992] 7MGE..MX83 |
96111-10830 |
from US $2.88 |
||
|
17882A
|
17882A
96111-10830 Clamp, Hose(For Air Connector)[08.1988 - 07.1992] 7MGE..MX83 PIPE SIDE |
96111-10830 |
from US $2.88 |
||
|
17882A
|
17882A
96111-10900 Clamp, Hose[08.1988 - 08.1990] 7MGE..MX83 AFM SIDE |
96111-10900 |
from US $2.57 |
||
|
17886B
|
17886B
17882-42040
Hose, Air Cleaner, No.7
[08.1988 - 07.1992] 7MGE..MX83 |
17882-42040 |
— | ||
|
22231
|
22231
22231-42010
Hose, Throttle Body
[08.1988 - 07.1992] 7MGE..MX83 |
22231-42010 |
— | ||
|
22231A
|
22231A
90460-80001
Clamp, Hose
[12.1988 - 07.1992] 7MGE..MX83 |
90460-80001 |
— | ||
| replacement | |||||
|
22231A
|
22231A
90460-80006 Clamp, Hose[12.1988 - 07.1992] 7MGE..MX83 |
90460-80006 |
from US $9.07 |
||
|
22231A
|
22231A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[08.1988 - 12.1988] 7MGE..MX83 |
96111-10800 |
from US $2.56 |
||
|
22250
|
22250
22250-42080
Meter Assy, Intake Air Flow
[08.1988 - 07.1992] 7MGE..MX83 |
22250-42080 |
— | ||
|
22275
|
22275
22275-43010 Gasket, Air Flow Meter[08.1988 - 07.1992] 7MGE..MX83 |
22275-43010 |
from US $14.24 |
||
|
9011906488
|
9011906488
90119-06488 New Genuine Part |
90119-06488 |
US $1.22 |
||
|
9011908208
|
9011908208
90119-08208 Bolt (For Roller Bearing Retainer) |
90119-08208 |
US $0.87 |
||
|
9011908679
|
9011908679
90119-08679 New Genuine Part |
90119-08679 |
US $2.18 |
||
|
9011908683
|
9011908683
90119-08683
New Genuine Part
|
90119-08683 |
— | ||
|
9017906096
|
9017906096
90179-06096
New Genuine Part
|
90179-06096 |
— | ||
| replacement | |||||
|
9017906096
|
9017906096
90179-06024 New Genuine Part |
90179-06024 |
US $1.89 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9046400526
|
9046400526
90464-00526 New Genuine Part |
90464-00526 |
US $3.06 |
||
