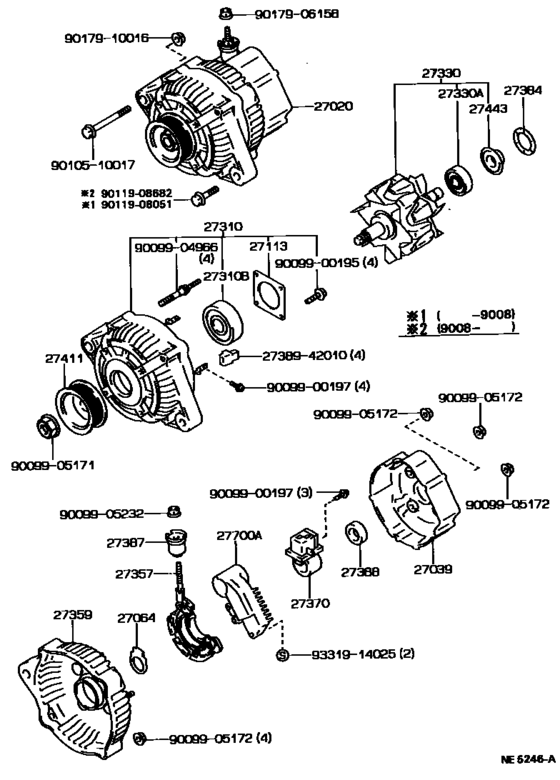

Alternator ([08.1988 - 07.1992] 12V 80A (8808-9207)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-42030 Alternator Assy[08.1988 - 07.1992] 7MGE..MX83 12V 80A |
27060-42030 |
US $1,645.28 |
||
|
27039
|
27039
27039-42010
Cover, Alternator Rear End
[08.1988 - 07.1992] 7MGE..MX83 |
27039-42010 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-16310
Cover, Alternator Rear End
[08.1988 - 07.1992] 7MGE..MX83 |
27039-16310 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[08.1988 - 07.1992] 7MGE..MX83 |
27064-42010 |
from US $2.10 |
||
|
27113
|
27113
27312-42010
Plate, Bearing Retainer, Alternator
[08.1988 - 07.1992] 7MGE..MX83 |
27312-42010 |
— | ||
|
27310
|
27310
27310-42010
Frame Assy, Drive End, Alternator
[08.1988 - 08.1990] 7MGE..MX83 |
27310-42010 |
— | ||
|
27310
|
27310
27310-74110
Frame Assy, Drive End, Alternator
[08.1990 - 07.1992] 7MGE..MX83 |
27310-74110 |
— | ||
|
27310B
|
27310B
90099-10160
Bearing(For Alternator Drive End Frame)
[08.1988 - 08.1990] 7MGE..MX83 |
90099-10160 |
— | ||
| replacement | |||||
|
27310B
|
27310B
90099-10219 Bearing(For Alternator Drive End Frame)[08.1988 - 08.1990] 7MGE..MX83 |
90099-10219 |
from US $16.28 |
||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[08.1990 - 07.1992] 7MGE..MX83 |
90099-10192 |
from US $15.03 |
||
|
27330
|
27330
27330-42010
Rotor Assy, Alternator
[08.1988 - 12.1990] 7MGE..MX83 |
27330-42010 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-16390 Rotor Assy, Alternator[08.1988 - 12.1990] 7MGE..MX83 |
27330-16390 |
US $132.79 |
||
|
27330
|
27330
27330-76030
Rotor Assy, Alternator
[12.1990 - 07.1992] 7MGE..MX83 |
27330-76030 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-16390 Rotor Assy, Alternator[12.1990 - 07.1992] 7MGE..MX83 |
27330-16390 |
US $132.79 |
||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[08.1988 - 07.1992] 7MGE..MX83 |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-42010
Holder, Alternator, W/rectifier
[08.1988 - 07.1992] 7MGE..MX83 |
27357-42010 |
— | ||
| replacement | |||||
|
27357
|
27357
27357-50040
Holder, Alternator, W/rectifier
[08.1988 - 07.1992] 7MGE..MX83 |
27357-50040 |
— | ||
|
27359
|
27359
27359-42010
Frame, Alternator Rectifier End
[08.1988 - 07.1992] 7MGE..MX83 |
27359-42010 |
— | ||
| replacement | |||||
|
27359
|
27359
27359-74330
Frame, Alternator Rectifier End
[08.1988 - 07.1992] 7MGE..MX83 |
27359-74330 |
— | ||
|
27370
|
27370
27370-42010
Holder Assy, Alternator Brush
[08.1988 - 01.1991] 7MGE..MX83 |
27370-42010 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[08.1988 - 01.1991] 7MGE..MX83 |
27370-75060 |
from US $16.50 |
||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[01.1991 - 07.1992] 7MGE..MX83 |
27370-75060 |
from US $16.50 |
||
|
27384
|
27384
27384-42010
Washer
[08.1988 - 01.1991] 7MGE..MX83 |
27384-42010 |
— | ||
| replacement | |||||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[08.1988 - 01.1991] 7MGE..MX83 |
27384-50030 |
from US $2.80 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[01.1991 - 07.1992] 7MGE..MX83 |
27384-50030 |
from US $2.80 |
||
|
27387
|
27387
27387-42020
Insulator, Terminal
[08.1988 - 07.1992] 7MGE..MX83 |
27387-42020 |
— | ||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[08.1988 - 07.1992] 7MGE..MX83 |
27388-42010 |
US $10.66 |
||
|
27411
|
27411
27411-42030 Pulley, Alternator[08.1988 - 07.1992] 7MGE..MX83 |
27411-42030 |
US $42.18 |
||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[08.1988 - 07.1992] 7MGE..MX83 |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-16010
Regulator Assy, Generator
[08.1988 - 05.1991] 7MGE..MX83 |
27700-16010 |
— | ||
| replacement | |||||
|
27700A
|
27700A
27700-66020 Regulator Assy, Generator[08.1988 - 05.1991] 7MGE..MX83 |
27700-66020 |
US $263.54 |
||
|
27700A
|
27700A
27700-50010 Regulator Assy, Generator[05.1991 - 07.1992] 7MGE..MX83 |
27700-50010 |
US $263.54 |
||
| replacement | |||||
|
27700A
|
27700A
27700-72080 Regulator Assy, Generator[05.1991 - 07.1992] 7MGE..MX83 |
27700-72080 |
US $264.99 |
||
|
2738942010
|
2738942010
27389-42010
Insulator, Terminal
|
27389-42010 |
— | ||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9009905232
|
9009905232
90099-05232
New Genuine Part
|
90099-05232 |
— | ||
|
9010510017
|
9010510017
90105-10017 Bolt |
90105-10017 |
from US $2.50 |
||
|
9011908051
|
9011908051
90119-08051
New Genuine Part
|
90119-08051 |
— | ||
| replacement | |||||
|
9011908051
|
9011908051
90129-08010 New Genuine Part |
90129-08010 |
US $3.35 |
||
|
9011908682
|
9011908682
90119-08682
New Genuine Part
|
90119-08682 |
— | ||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.99 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
