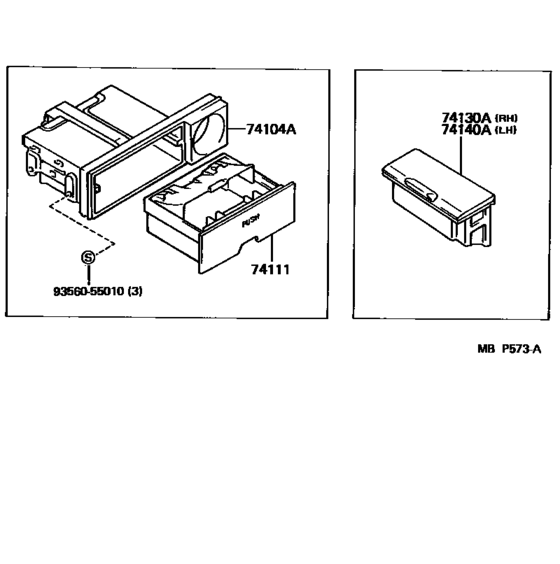

Ash Receptacle ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74104A
|
74104A
74127-22040 Retainer Sub-Assy, Front Ash ReceptacleFRONT ASH RECEPTACLE [08.1988 - 07.1992] MX83 |
74127-22040 |
US $62.46 |
||
|
74111
|
74111
74111-22140 Box, Front Ash Receptacle[08.1988 - 07.1992] MX83 |
74111-22140 |
US $63.92 |
||
|
74130A
|
74130A
74130-22110
Receptacle Assy, Rear Ash, Rh
[08.1988 - 07.1992] MX83 |
74130-22110 |
— | ||
|
74140A
|
74140A
74140-22010
Receptacle Assy, Rear Ash, Lh
[08.1988 - 07.1992] MX83 |
74140-22010 |
— | ||
|
9356055010
|
9356055010
93560-55010 Screw(For Mat Set Plate) |
93560-55010 |
US $0.96 |
