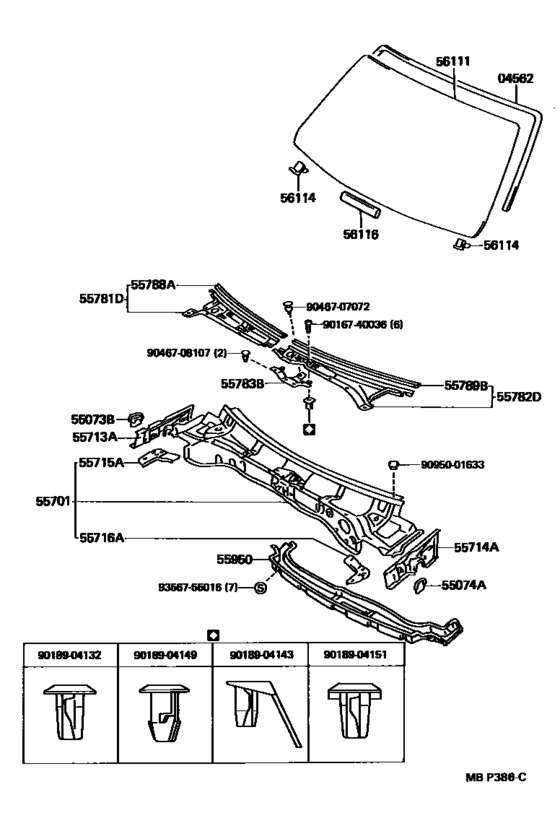

Cowl Panel & Windshield Glass ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04562
|
04562
04562-12010 Dam Kit, Windshield Glass[08.1988 - 07.1992] MX83 |
04562-12010 |
from US $31.92 |
||
|
55073B
|
55073B
55073-22030 Seal Sub-Assy, Cowl Water Extract, No.1[08.1988 -] MX83 |
55073-22030 |
US $9.90 |
||
|
55074A
|
55074A
55074-22040 Seal Sub-Assy, Cowl Water Extract, No.2[08.1988 -] MX83 |
55074-22040 |
US $9.90 |
||
|
55701
|
55701
55700-22890 Panel Sub-Assy, CowlCOWL [08.1988 - 07.1992] MX83 |
55700-22890 |
US $546 |
||
|
55713A
|
55713A
55713-22060 Panel, Cowl Top Side, Rh[08.1988 - 07.1992] MX83 |
55713-22060 |
US $28.97 |
||
|
55714A
|
55714A
55714-22060 Panel, Cowl Top Side, Lh[08.1988 - 07.1992] MX83 |
55714-22060 |
US $28.97 |
||
|
55715A
|
55715A
55715-22080 Brace, Cowl Top To Apron, Rh[08.1988 - 07.1992] MX83 |
55715-22080 |
US $9.46 |
||
|
55716A
|
55716A
55716-22070 Brace, Cowl Top To Apron, Lh[08.1988 - 07.1992] MX83 |
55716-22070 |
US $9.46 |
||
|
55781D
|
55781D
55781-22190 Louver, Cowl Top Ventilator, RhCOWL TOP VENTILATOR, RH [08.1988 - 07.1992] MX83 |
55781-22190 |
US $30.87 |
||
|
55782D
|
55782D
55782-22090 Louver, Cowl Top Ventilator, LhCOWL TOP VENTILATOR, LH [08.1988 - 07.1992] MX83 |
55782-22090 |
US $27.96 |
||
|
55783B
|
55783B
55783-22090 Louver, Cowl Top Ventilator, Center No.1[08.1988 - 07.1992] MX83 |
55783-22090 |
US $10.63 |
||
|
55788A
|
55788A
55788-22070
Protector, Cowl Top Ventilator Louver
[08.1988 - 07.1992] MX83 |
55788-22070 |
— | ||
|
55789B
|
55789B
55789-22040
Protector, Cowl Top Venttinator Louver, No.2
[08.1988 - 07.1992] MX83 |
55789-22040 |
— | ||
|
55950
|
55950
55951-22120 Nozzle Assy, DefrosterDEFROSTER [08.1988 - 07.1992] MX83 |
55951-22120 |
US $101.92 |
||
|
56111
|
56111
56111-22590
Glass, Windshield
[08.1988 - 07.1992] MX83 *TL,T=4.7,BLUE |
56111-22590 |
— | ||
|
56111
|
56111
56111-22600
Glass, Windshield
[08.1988 - 07.1992] MX83 *TL,T=4.7,BRONZE |
56111-22600 |
— | ||
|
56114
|
56114
56114-22010
Retainer, Windshield Glass
[08.1988 - 07.1992] MX83 YELLOW |
56114-22010 |
— | ||
|
56114
|
56114
56114-22020
Retainer, Windshield Glass
[08.1988 - 07.1992] MX83 WHITE |
56114-22020 |
— | ||
|
56114
|
56114
56114-22030
Retainer, Windshield Glass
[08.1988 - 07.1992] MX83 GREEN |
56114-22030 |
— | ||
|
56116
|
56116
56116-22040
Spacer, Windshield Glass
[08.1988 - 01.1992] MX83 |
56116-22040 |
— | ||
| replacement | |||||
|
56116
|
56116
56116-22041
Spacer, Windshield Glass
[08.1988 - 01.1992] MX83 |
56116-22041 |
— | ||
|
56116
|
56116
56116-22041
Spacer, Windshield Glass
[01.1992 - 07.1992] MX83 |
56116-22041 |
— | ||
|
9016740036
|
9016740036
90167-40036 New Genuine Part |
90167-40036 |
US $1.60 |
||
|
9018904132
|
9018904132
90189-04132 New Genuine Part |
90189-04132 |
US $2.08 |
||
|
9018904143
|
9018904143
90189-04143
New Genuine Part
|
90189-04143 |
— | ||
|
9018904149
|
9018904149
90189-04149
New Genuine Part
|
90189-04149 |
— | ||
|
9018904151
|
9018904151
90189-04151 New Genuine Part |
90189-04151 |
US $1.75 |
||
|
9046707072
|
9046707072
90467-07072
Clip(for Room Partition Board)
|
90467-07072 |
— | ||
| replacement | |||||
|
9046707072
|
9046707072
90467-07072-22 Clip (For Roof Side Garnish) |
90467-07072-22 |
US $1.92 |
||
|
9046708107
|
9046708107
90467-08107
New Genuine Part
|
90467-08107 |
— | ||
|
9095001633
|
9095001633
90950-01633 New Genuine Part |
90950-01633 |
US $3.93 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
