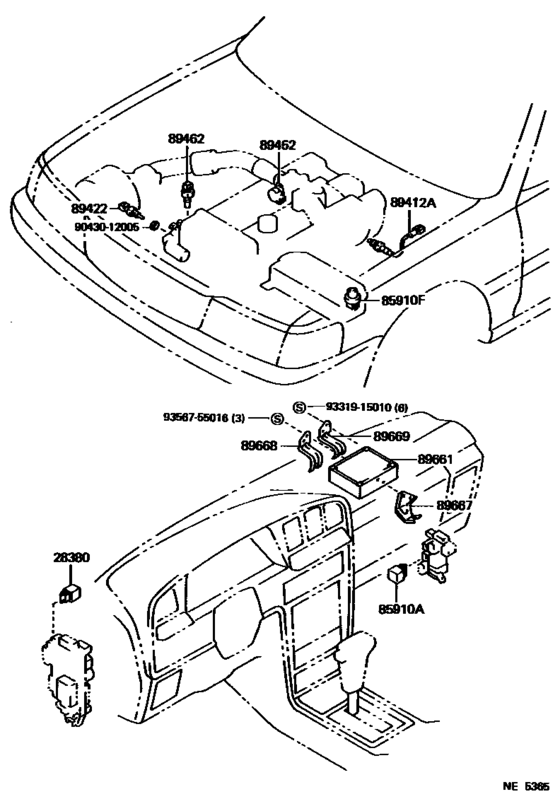

Electronic Fuel Injection System ([08.1988 - 07.1992] (8808-9207)) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28380
|
28380
28380-70030 Relay Assy, Fuel Pump[08.1988 - 07.1992] 7MGE..MX83 |
28380-70030 |
US $56.78 |
||
|
85910A
|
85910A
85910-30050 Relay Assy, Circuit Opening (For Efi)[08.1988 - 07.1992] MX83 |
85910-30050 |
US $84.36 |
||
|
85910F
|
85910F
90987-02004 Relay Assy, Starter[08.1988 - 07.1992] MX83 |
90987-02004 |
from US $28.49 |
||
| replacement | |||||
|
85910F
|
85910F
909870200483 [08.1988 - 07.1992] MX83 |
909870200483 |
US $53.75 |
||
|
89412A
|
89412A
89412-12010 Sensor, E.g.r Gas TemperatureE.G.R GAS TEMPERATURE [08.1988 - 07.1992] MX83..USA |
89412-12010 |
from US $151.20 |
||
|
89422
|
89422
89422-20010 Sensor, Water Temperature (For E.f.i.)[08.1988 - 07.1992] MX83 |
89422-20010 |
from US $36.78 |
||
|
89452
|
89452
89452-14050 Sensor, Throttle Position (For E.f.i.)[08.1988 - 07.1992] MX83 |
89452-14050 |
US $192.96 |
||
|
89462
|
89462
89462-20020 Switch, Start Injector Time[08.1988 - 07.1992] MX83 |
89462-20020 |
US $128.76 |
||
|
89661
|
89661
89661-22170 Computer, Engine Control[08.1988 - 11.1989] MX83..USA CALIFORNIA SPEC |
89661-22170 |
US $1,790.88 |
||
| replacement | |||||
|
89661
|
89661
89661-22171 Computer, Engine Control[08.1988 - 11.1989] MX83..USA CALIFORNIA SPEC |
89661-22171 |
US $1,747.20 |
||
|
89661
|
89661
89661-22171 Computer, Engine Control[11.1989 - 07.1992] MX83..USA CALIFORNIA SPEC |
89661-22171 |
US $1,747.20 |
||
|
89661
|
89661
89661-22330 Computer, Engine ControlENGINE CONTROL [11.1989 - 07.1992] MX83 |
89661-22330 |
US $1,776.32 |
||
|
89667
|
89667
89667-22090 Bracket, Engine Control ComputerENGINE CONTROL COMPUTER [08.1988 - 07.1992] MX83 |
89667-22090 |
US $5.24 |
||
|
89668
|
89668
89668-22150 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [08.1988 - 07.1992] MX83 |
89668-22150 |
US $7.43 |
||
|
89669
|
89669
89669-22150 Bracket, Engine Control Computer, No.3ENGINE CONTROL COMPUTER, NO.3 [08.1988 - 07.1992] MX83 |
89669-22150 |
US $7.43 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.90 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
