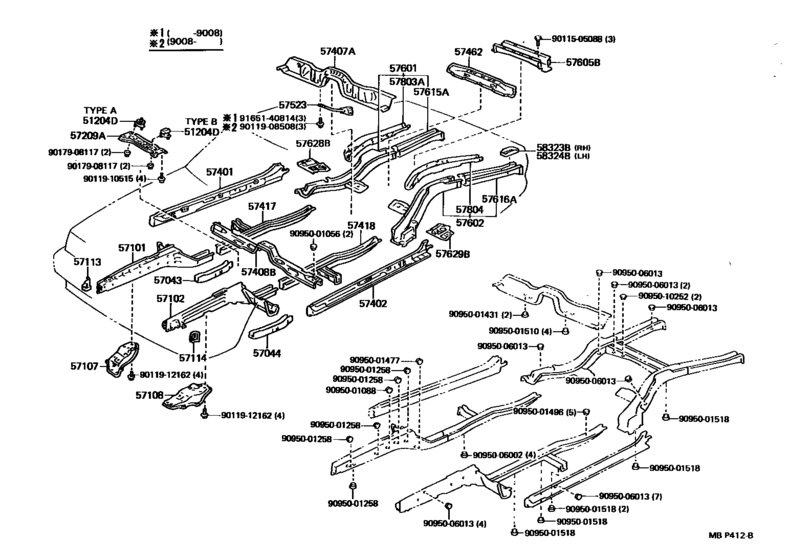

Floor Side Member ([08.1988 - ] (8808- )) Diagram Toyota CRESSIDA/ CRESSIDA WAGON
- Year
- 1988 - 1992
- Sales region
- U.S.A.
- Frame
- MX83
- grade
- GLX
- body
- SED
- ENGINE
- 7MGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- CRESSIDA
- From
- 08.1988
- To
- 07.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Cressida
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51204D
|
51204D
51204-22100 Damper Sub-Assy, Engine Rear Support Member[08.1988 - 07.1992] MX83 TYPE A |
51204-22100 |
US $96.10 |
||
|
51204D
|
51204D
51204-22120 Damper Sub-Assy, Engine Rear Support Member[08.1988 - 07.1992] MX83 TYPE B |
51204-22120 |
US $56.64 |
||
|
57043
|
57043
57043-22040 Reinforcement Sub-Assy, Front Side Member, Rear RhFRONT SIDE MEMBER, REAR RH [08.1988 - 07.1992] MX83 |
57043-22040 |
US $221.31 |
||
| replacement | |||||
|
57043
|
57043
57043-22041 Reinforcement Sub-Assy, Front Side Member, Rear RhFRONT SIDE MEMBER, REAR RH [08.1988 - 07.1992] MX83 |
57043-22041 |
US $221.31 |
||
|
57044
|
57044
57044-22020 Reinforcement Sub-Assy, Front Side Member, Rear Lh[08.1988 - 07.1992] MX83 |
57044-22020 |
US $221.31 |
||
| replacement | |||||
|
57044
|
57044
57044-43010 Reinforcement Sub-Assy, Front Side Member, Rear Lh[08.1988 - 07.1992] MX83 |
57044-43010 |
US $142.69 |
||
|
57101
|
57101
57101-22900 Member Sub-Assy, Front Side, RhFRONT SIDE, RH [08.1988 - 07.1992] MX83 |
57101-22900 |
US $786.24 |
||
|
57102
|
57102
57102-22900 Member Sub-Assy, Front Side, LhFRONT SIDE, LH [08.1988 - 07.1992] MX83 |
57102-22900 |
US $786.24 |
||
|
57107
|
57107
57107-22080 Bracket Sub-Assy, Strut Bar, Rh[08.1988 - 07.1992] MX83 |
57107-22080 |
US $94.64 |
||
| replacement | |||||
|
57107
|
57107
57107-22091 Bracket Sub-Assy, Strut Bar, Rh[08.1988 - 07.1992] MX83 |
57107-22091 |
US $94.64 |
||
|
57108
|
57108
57108-22110 Bracket Sub-Assy, Strut Bar, Lh[08.1988 - 07.1992] MX83 |
57108-22110 |
US $94.64 |
||
| replacement | |||||
|
57108
|
57108
57108-22151 Bracket Sub-Assy, Strut Bar, Lh[08.1988 - 07.1992] MX83 |
57108-22151 |
US $94.64 |
||
|
57113
|
57113
57113-22070 Extension, Front Side Member, RhFRONT SIDE MEMBER, RH [08.1988 - 07.1992] MX83 |
57113-22070 |
US $18.78 |
||
|
57114
|
57114
57114-22070 Extension, Front Side Member, LhFRONT SIDE MEMBER, LH [08.1988 - 07.1992] MX83 |
57114-22070 |
US $18.78 |
||
|
57209A
|
57209A
57209-22160 Member Sub-Assy, Engine Rear Mounting[08.1988 - 07.1992] MX83 |
57209-22160 |
US $36.69 |
||
|
57401
|
57401
57401-22140 Member Sub-Assy, Main Floor Side, RhMAIN FLOOR SIDE, RH [08.1988 - 07.1992] MX83..USA |
57401-22140 |
US $216.94 |
||
|
57402
|
57402
57402-22140 Member Sub-Assy, Main Floor Side, LhMAIN FLOOR SIDE, LH [08.1988 - 07.1992] MX83..USA |
57402-22140 |
US $216.94 |
||
|
57407A
|
57407A
57407-22080 Member Sub-Assy, Center Floor Cross[08.1988 -] MX83 |
57407-22080 |
US $117.94 |
||
|
57408B
|
57408B
57408-22050 Member Sub-Assy, Front Floor CrossFRONT FLOOR CROSS [08.1988 - 07.1992] MX83 |
57408-22050 |
US $190.74 |
||
|
57417
|
57417
57505-22090 Reinforcement, Front Floor Under, RhFRONT FLOOR UNDER, RH [08.1988 - 07.1992] MX83 |
57505-22090 |
US $155.79 |
||
|
57418
|
57418
57506-22090 Reinforcement, Front Floor Under, LhFRONT FLOOR UNDER, LH [08.1988 - 07.1992] MX83 |
57506-22090 |
US $155.79 |
||
|
57462
|
57462
57462-22030 Member, Center Floor Cross, No.2[08.1988 - 07.1992] MX83 |
57462-22030 |
US $55.47 |
||
|
57523
|
57523
57523-22020 Brace, Center Floor Crossmember[08.1988 -] MX83 |
57523-22020 |
US $21.11 |
||
|
57601
|
57601
57601-22280 Member Sub-Assy, Rear Floor Side, RhREAR FLOOR SIDE, RH [08.1988 - 07.1992] MX83 |
57601-22280 |
US $844.48 |
||
|
57602
|
57602
57602-22220 Member Sub-Assy, Rear Floor Side, LhREAR FLOOR SIDE, LH [08.1988 - 07.1992] MX83 |
57602-22220 |
US $809.54 |
||
|
57605B
|
57605B
57605-22900 Member Sub-Assy, Rear Floor Cross, No.1[08.1988 -] MX83 |
57605-22900 |
US $107.74 |
||
|
57615A
|
57615A
57615-22905 Member, Rear Floor Side, Rear Rh[08.1988 - 07.1992] MX83 |
57615-22905 |
US $187.82 |
||
|
57616A
|
57616A
57616-22905 Member, Rear Floor Side, Rear LhREAR FLOOR SIDE, REAR LH [08.1988 - 07.1992] MX83 |
57616-22905 |
US $187.82 |
||
|
57628B
|
57628B
57628-22020 Plate, Rear Floor Side Member, Rh[08.1988 -] MX83 |
57628-22020 |
US $28.68 |
||
|
57629B
|
57629B
57629-22010 Plate, Rear Floor Side Member, Lh[08.1988 -] MX83 |
57629-22010 |
US $28.68 |
||
|
57803A
|
57803A
57803-22060 Reinforcement Sub-Assy, Rear Floor Side Member, Rear RhREAR FLOOR SIDE MEMBER, REAR RH [08.1988 - 07.1992] MX83 |
57803-22060 |
US $99.01 |
||
|
57804
|
57804
57804-22060 Reinforcement Sub-Assy, Rear Floor Side Member, Rear LhREAR FLOOR SIDE MEMBER, REAR LH [08.1988 - 07.1992] MX83 |
57804-22060 |
US $91.73 |
||
|
58323B
|
58323B
58303-22060 Reinforce, Rear Bumper Arm Support, Rh[08.1988 - 07.1992] MX83 |
58303-22060 |
US $30.43 |
||
|
58324B
|
58324B
58304-22030 Reinforce, Rear Bumper Arm Support, Lh[08.1988 - 07.1992] MX83 |
58304-22030 |
US $30.43 |
||
|
9011505088
|
9011505088
90115-05088 New Genuine Part |
90115-05088 |
US $1.02 |
||
|
9011908508
|
9011908508
90119-08508 BOLT |
90119-08508 |
US $1.44 |
||
|
9011910515
|
9011910515
90119-10515 New Genuine Part |
90119-10515 |
US $3.04 |
||
|
9011912162
|
9011912162
90119-12162 New Genuine Part |
90119-12162 |
US $3.49 |
||
|
9017908117
|
9017908117
90179-08117
New Genuine Part
|
90179-08117 |
— | ||
| replacement | |||||
|
9017908117
|
9017908117
90179-08230 New Genuine Part |
90179-08230 |
US $2.08 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001088
|
9095001088
90950-01088
Plug, Hole, No.4(For Dash Panel)
|
90950-01088 |
— | ||
|
9095001258
|
9095001258
90950-01258
Plug, Hole(For Rear Suspension Arm)
|
90950-01258 |
— | ||
| replacement | |||||
|
9095001258
|
9095001258
90950-01478 Plug, Hole(For Front Suspension Lower Arm) |
90950-01478 |
US $3.04 |
||
|
9095001431
|
9095001431
90950-01431 New Genuine Part |
90950-01431 |
US $5.39 |
||
|
9095001477
|
9095001477
90950-01477
New Genuine Part
|
90950-01477 |
— | ||
|
9095001496
|
9095001496
90950-01496 New Genuine Part |
90950-01496 |
US $2.62 |
||
|
9095001510
|
9095001510
90950-01510 New Genuine Part |
90950-01510 |
US $0.87 |
||
|
9095001518
|
9095001518
90950-01518 PLUG |
90950-01518 |
from US $1.23 |
||
|
9095006002
|
9095006002
90950-06002 Cover, Front Floor Hole |
90950-06002 |
US $0.96 |
||
|
9095006013
|
9095006013
90950-06013 New Genuine Part |
90950-06013 |
US $1.92 |
||
|
9095010252
|
9095010252
90950-10252
New Genuine Part
|
90950-10252 |
— | ||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
